Description

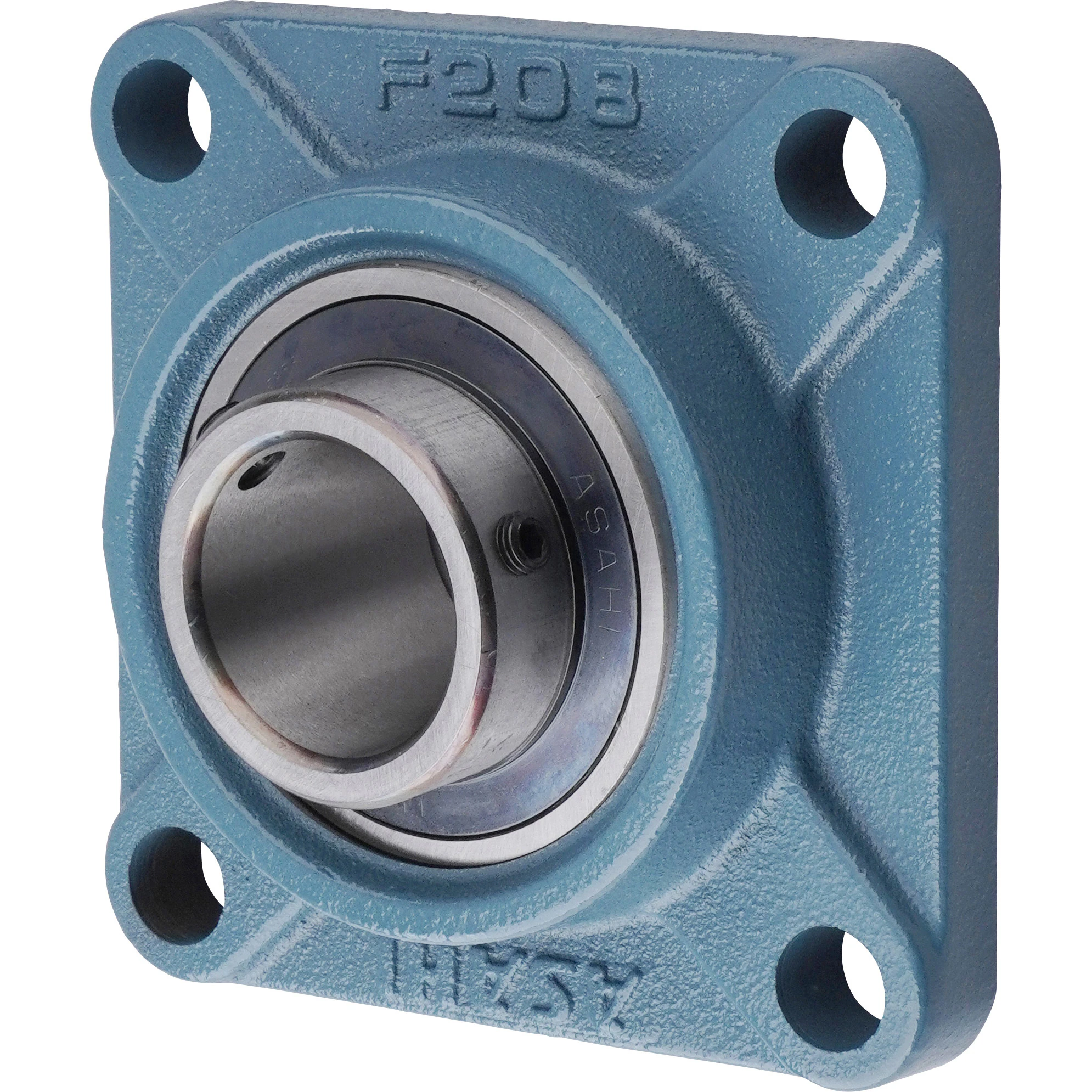

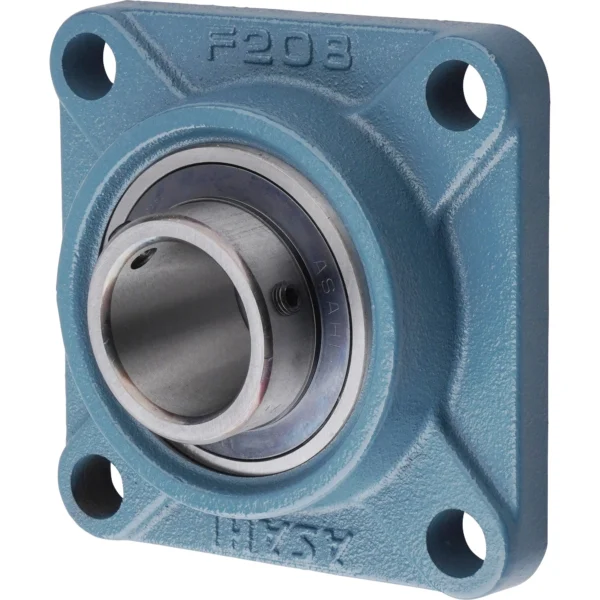

Square Flange Type Unit
Axis Diameter (mm): 40
Grease Nipple: Yes
Load Type: Yes
Cover: None
Axis Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 1.77

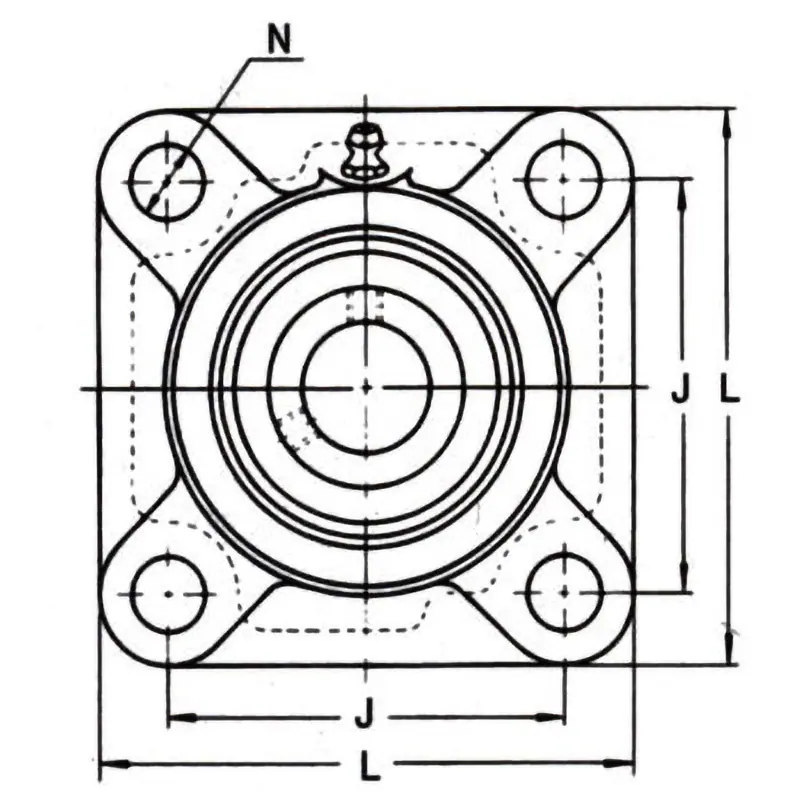

Dimension L (mm): 130
Basic Static Load Rating (kN): 17.9
Basic Dynamic Load Rating (kN): 29.3
Mounting Bolt Size: M14

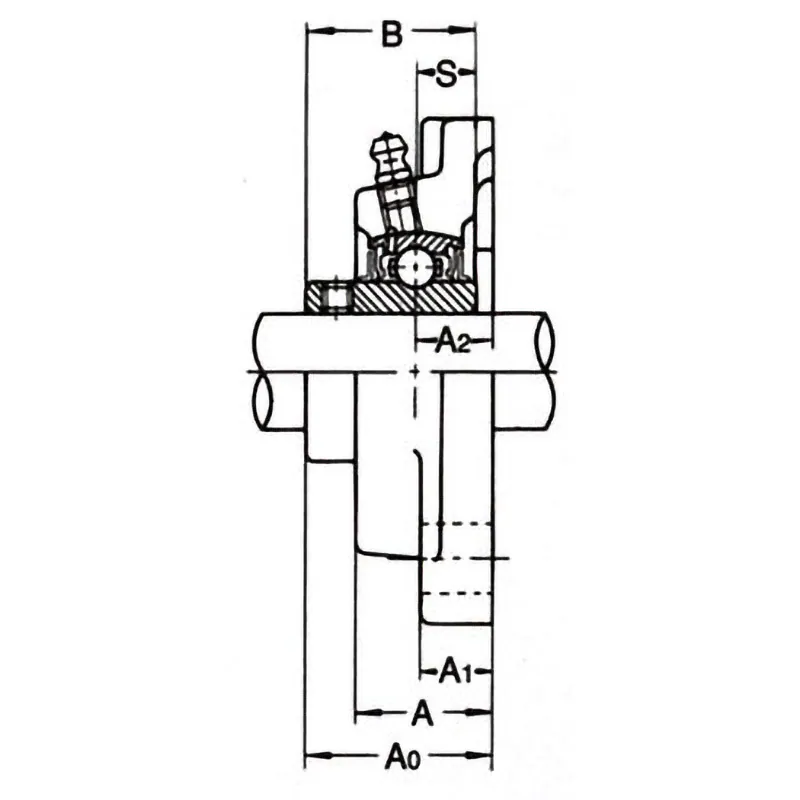

Dimension A (mm): 36
Dimension S (mm): 19
Dimension B (mm): 49.2
Dimension N (mm): 16
Dimension J (mm): 102
Dimension A1 (mm): 16
Dimension A2 (mm): 21
Dimension A0 (mm): 51.2
Bearing Size: UC208
Standard Bearing Box Size: F208
RoHS Directive (10 Substances Compliance): Compliant
The bearing box is in a square shape, designed for installation on the side wall of machinery, simplifying the structure of the bearing mounting part and providing a wide range of applications.
