Description

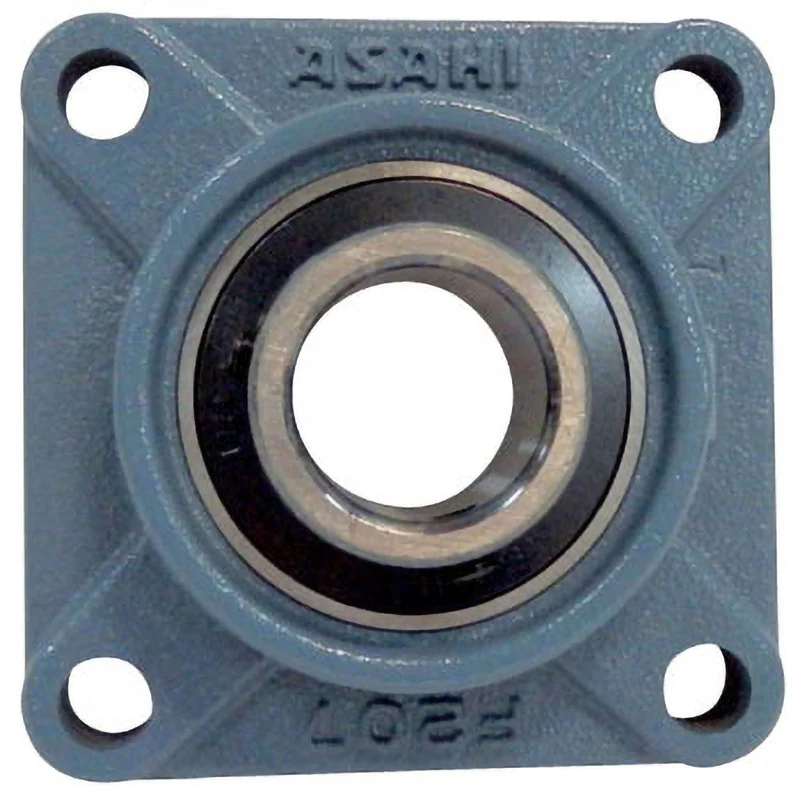

Square Flange Type Unit
Axis Diameter (mm): 35
Grease Nipple: Yes
Load Type: Yes
No Cover
Shaft Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 1.38

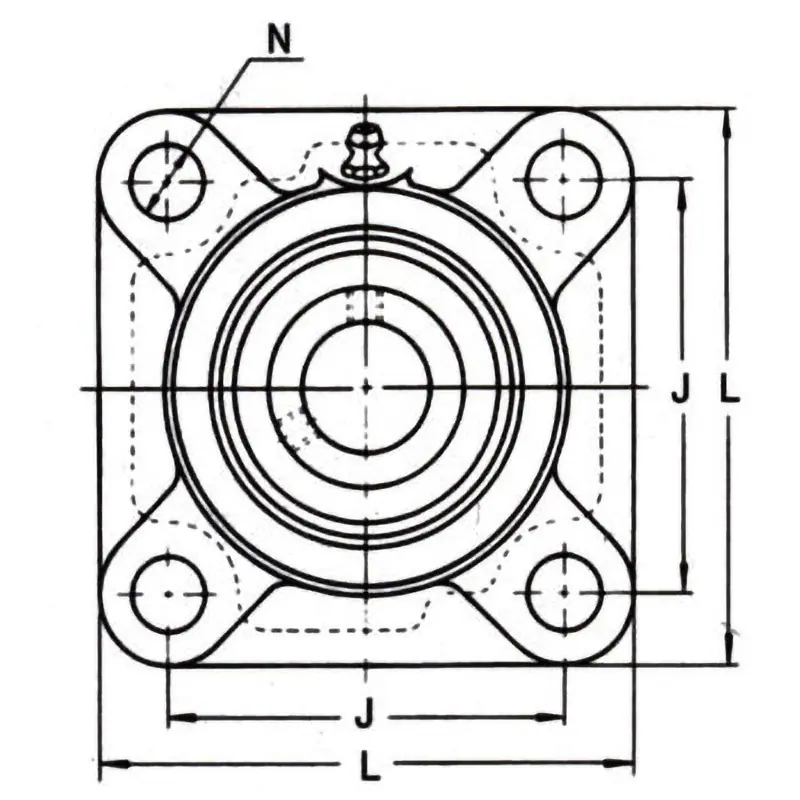

Dimension L (mm): 117
Basic Static Load Rating (kN): 15.4
Basic Dynamic Load Rating (kN): 25.9
Mounting Bolt Specification: M12

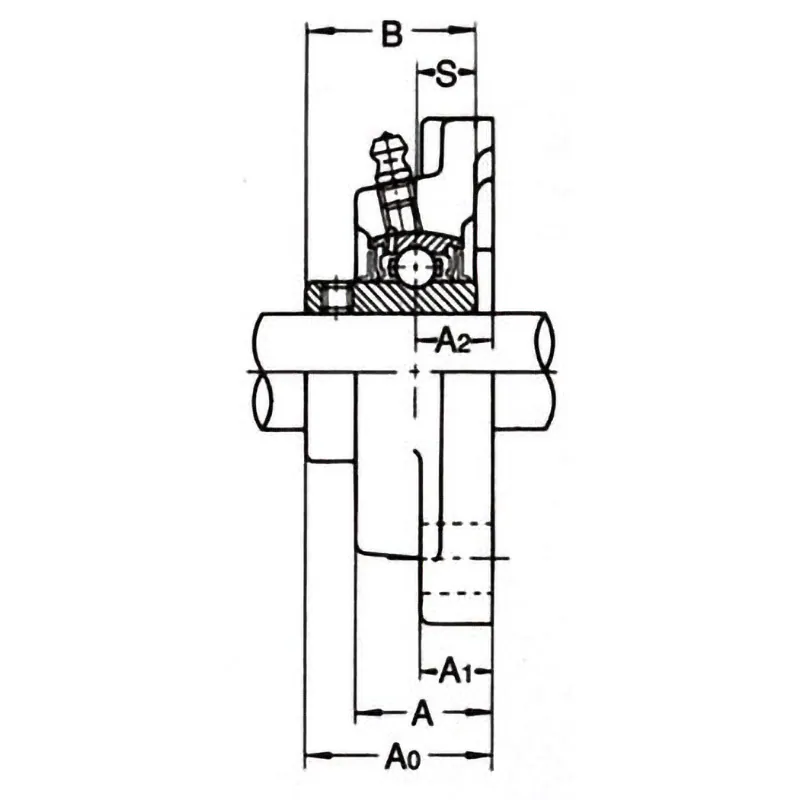

Dimension A (mm): 34
Dimension S (mm): 17.5
Dimension B (mm): 42.9
Dimension N (mm): 14
Dimension J (mm): 92
Dimension A1 (mm): 16
Dimension A2 (mm): 19
Dimension A0 (mm): 44.4
Bearing Specification: Number UC207
Standard Bearing Box Specification: Number F207
RoHS Directive (10 Substances Compliance): Compliant
The shape of the bearing box is square and designed to be mounted on the side wall of the machine, which simplifies the structure of the bearing mounting part and has a wide range of applications.
