Description

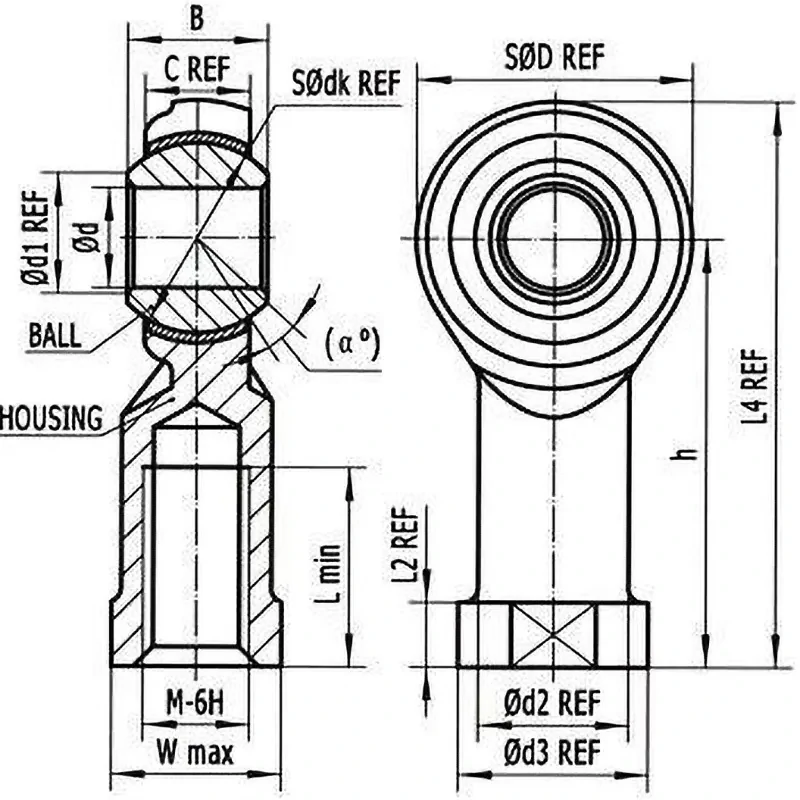

Dimension B (mm): 16
Dimension C (mm): 12
Dimension L (Min) (mm): 22
Dimension L2 (mm): 6.5
Dimension L4 (mm): 66
Dimension SD (mm): 32
Dimension W (mm): 19
Dimension d (mm): 12
Dimension d1 (mm): 15.4
Dimension d2 (mm): 17.5
Dimension d3 (mm): 22
Dimension dk (mm): 22.23
Dimension h (mm): 50
Weight (g): 107.4
Type: Left Thread
Dimension M (mm): M12*1.75
RoHS Directive (10 Substances Compliance): Compliant
Dimension alpha (degrees): 13

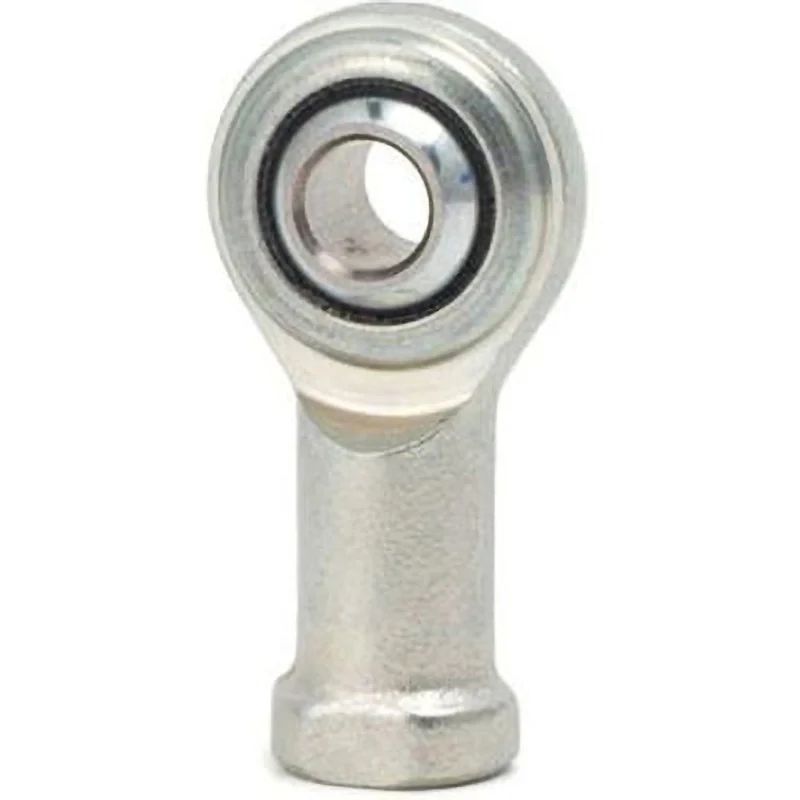

This spherical sliding bearing uses a spherical inner ring with precision and hardness equivalent to bearing steel balls｣ｬ and is used for mounting on the Rod End｣ｬ for oscillating motion.
