Description

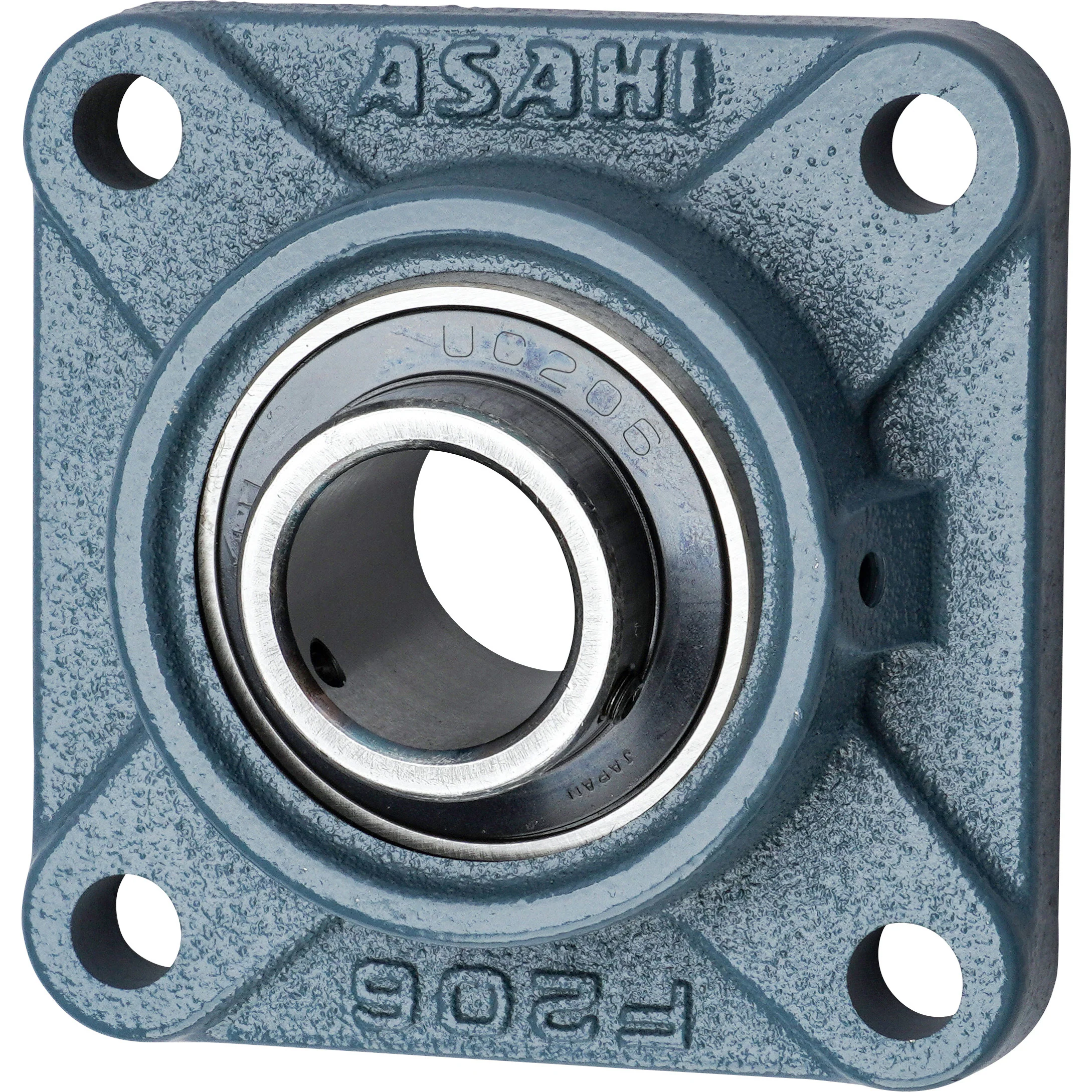

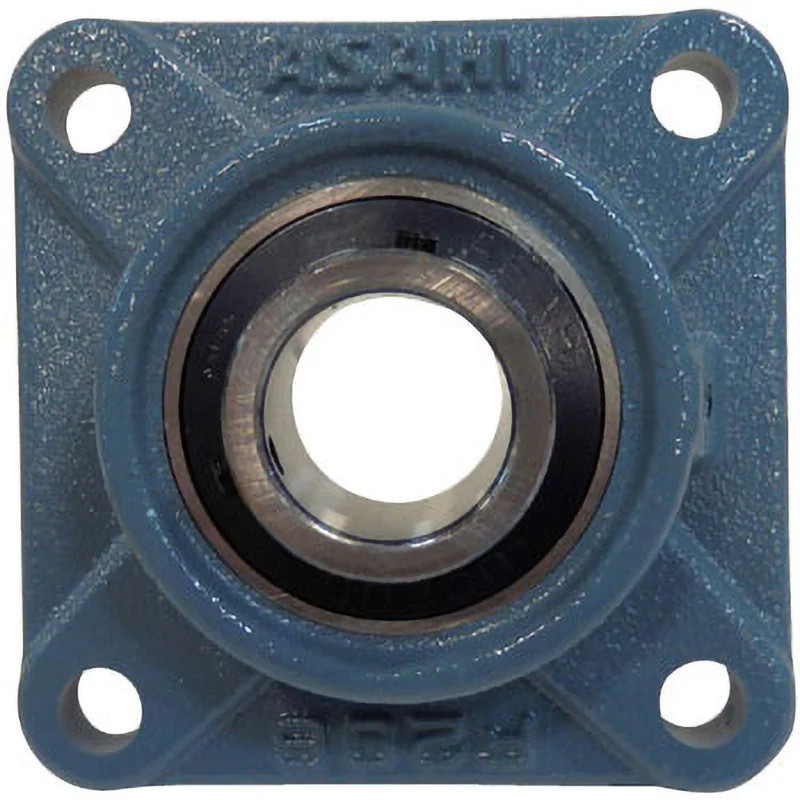

Square Flange Type Unit
Axis diameter (mm): 30
Grease nipple: Yes
Load type: Yes
No cover
Shaft hole type: Cylindrical hole with set screw
Weight (kg): 1.01

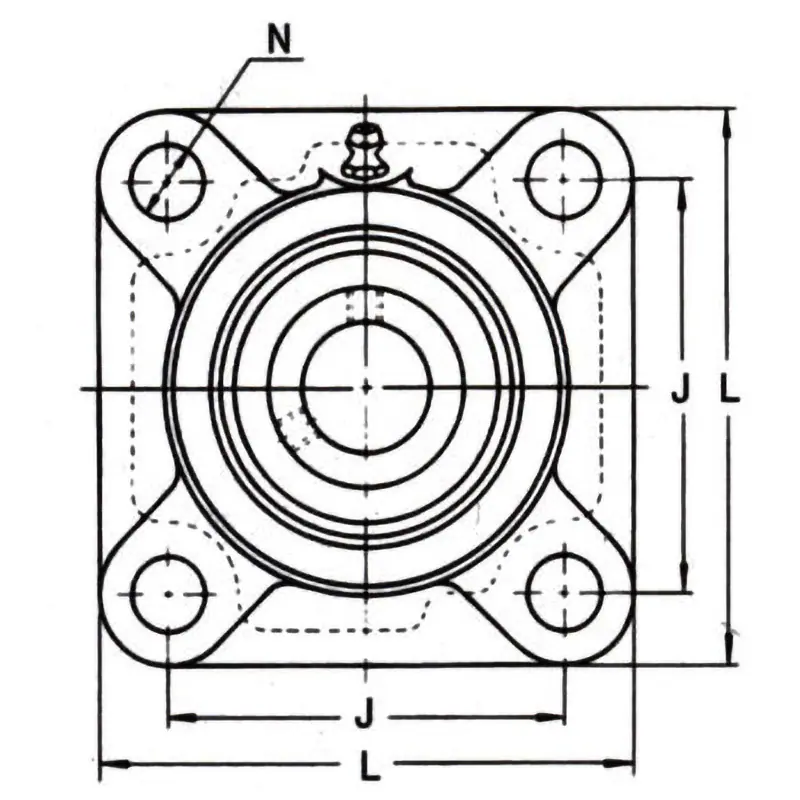

Dimension L (mm): 108
Basic static load rating (kN): 11.3
Basic dynamic load rating (kN): 19.6
Mounting bolt size: M10

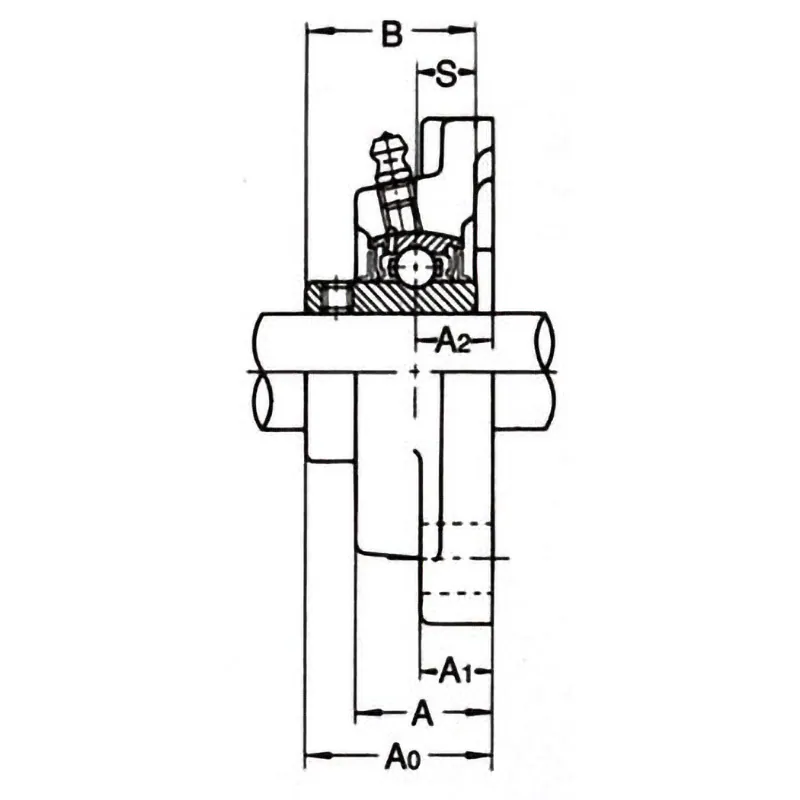

Dimension A (mm): 31
Dimension S (mm): 15.9
Dimension B (mm): 38.1
Dimension N (mm): 12
Dimension J (mm): 83
Dimension A1 (mm): 14
Dimension A2 (mm): 18
Dimension A0 (mm): 40.2
Bearing designation: Number UC206
Standard bearing box designation: Number F206
RoHS directive (10 substances compliance): Compliant
The bearing box has a square shape and is designed to be mounted on the side wall of the machine, simplifying the structure of the bearing mounting part and providing a wide range of applications.
