Description

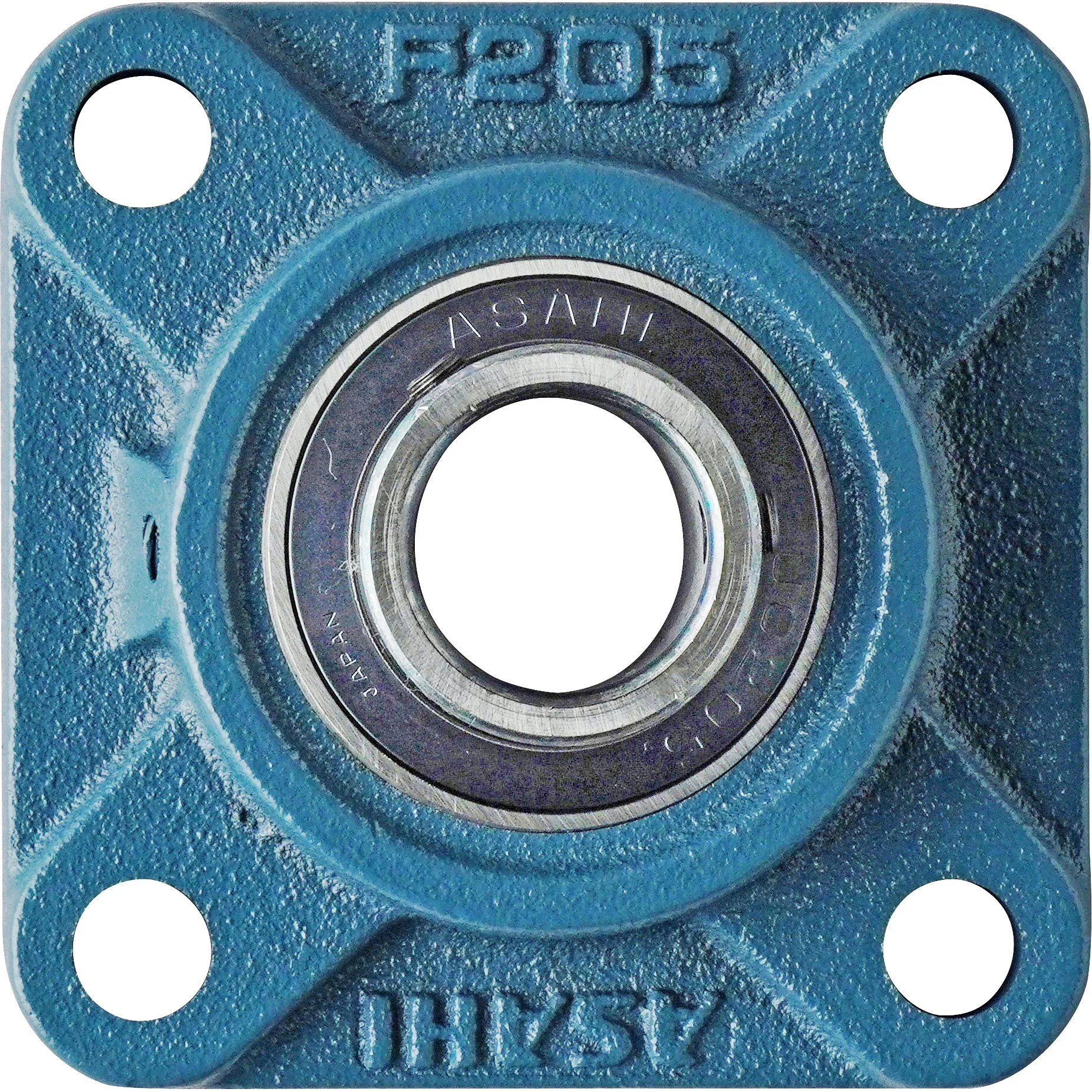

Square Flange Type Unit
Axis Diameter (mm): 25
Grease Nipple: Yes
Load Type: Yes
No Cover
Axis Hole Type: With Set Screw Cylindrical Hole
Weight (kg): 0.72

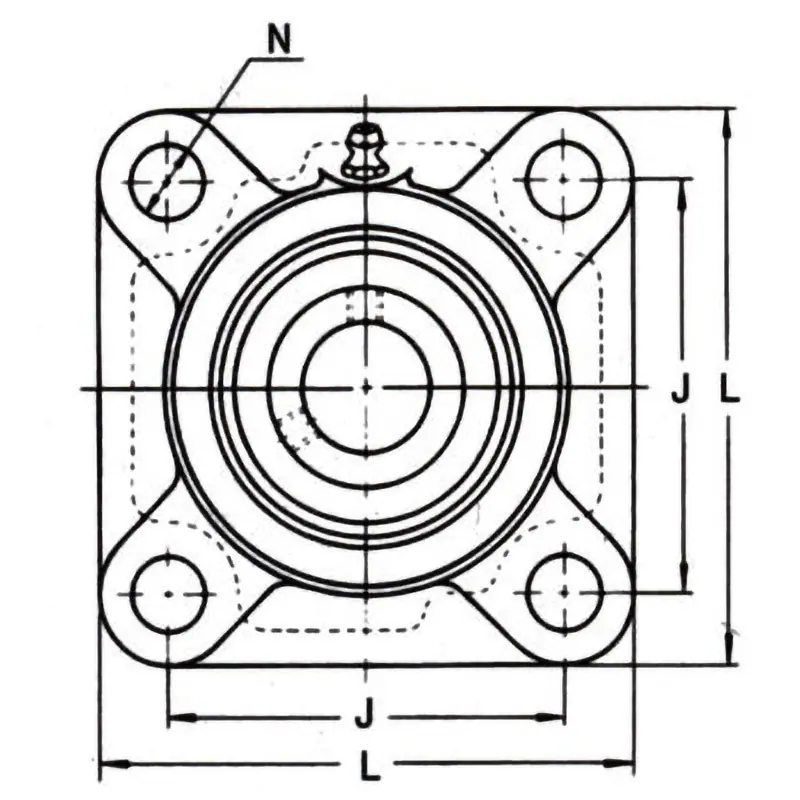

Dimension L (mm): 95
Basic Static Load Rating (kN): 7.9
Basic Dynamic Load Rating (kN): 14
Mounting Bolt Size: M10

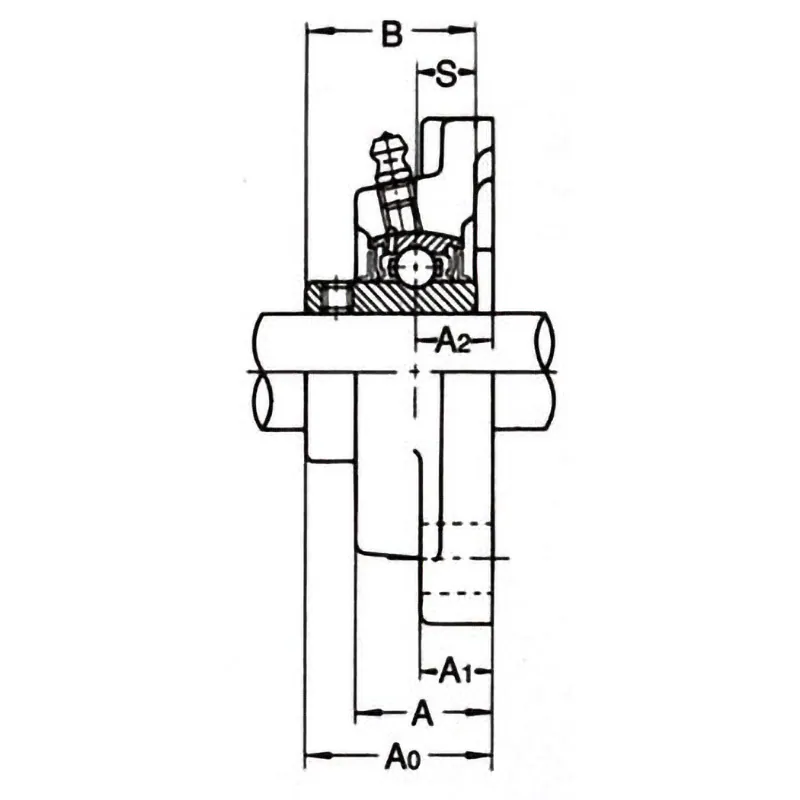

Dimension A (mm): 27
Dimension S (mm): 14.3
Dimension B (mm): 34.1
Dimension N (mm): 12
Dimension J (mm): 70
Dimension A1 (mm): 14
Dimension A2 (mm): 16
Dimension A0 (mm): 35.8
Bearing Designation: Number UC205
Standard Bearing Box Designation: Number F205
RoHS Directive (10 Substances Compliance): Compliant
The bearing box is designed in a square shape and is meant to be mounted on the side wall of the machine, simplifying the structure of the bearing mounting part and allowing for a wide range of applications.
