Description

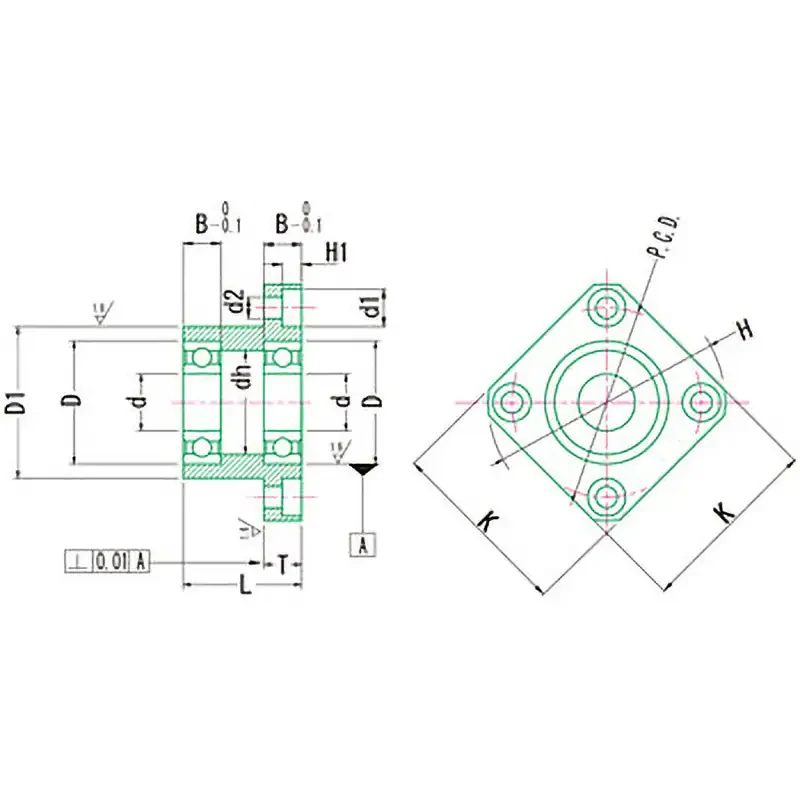

Dimension D1 (mm): (g7) Tolerance: 36-0.009-0.034
Dimension DH (mm): 24
Dimension H1 (mm): 4.1
Dimension P.C.D. (mm): 44
Dimension D (mm): 10
Dimension D2 (mm): 4.5
Material: (H)/Lead-Free Electroless Nickel Plated, (B)/Bearing Steel
Weight (g): 263
Dimension T: 8
Dimension D: (H7) Tolerance: 30+0.021
Dimension B: 9
Dimension H: 54
Dimension L: 30
Dimension D: 18
Dimension K: 42
