Description

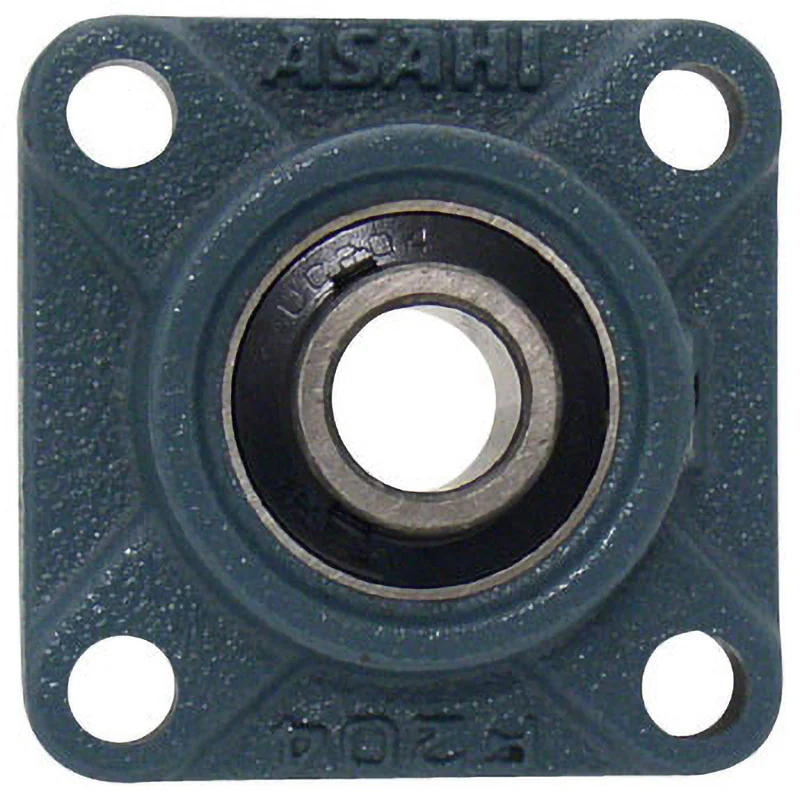

Square Flange Type Unit
Axis Diameter (mm): 15
Grease Nipple: Yes
Load Type: Yes
No Cover
Axis Hole Type: Cylindrical Hole with Set Screw
Weight (kg): 0.61

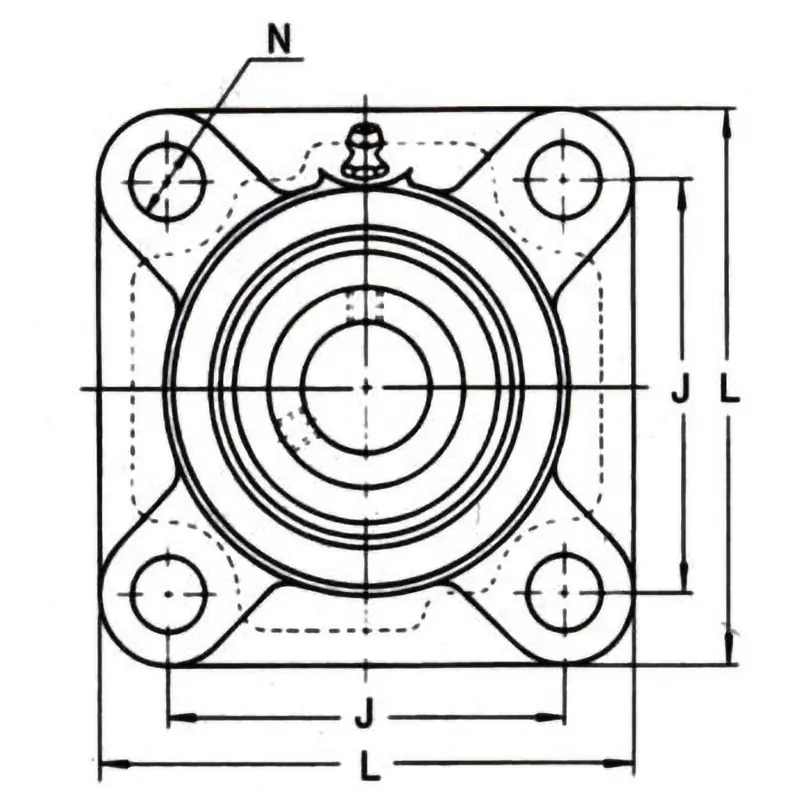

Dimension L (mm): 86
Basic Static Load Rating (kN): 6.6
Basic Dynamic Load Rating (kN): 12.8
Mounting Bolt Specification: M10

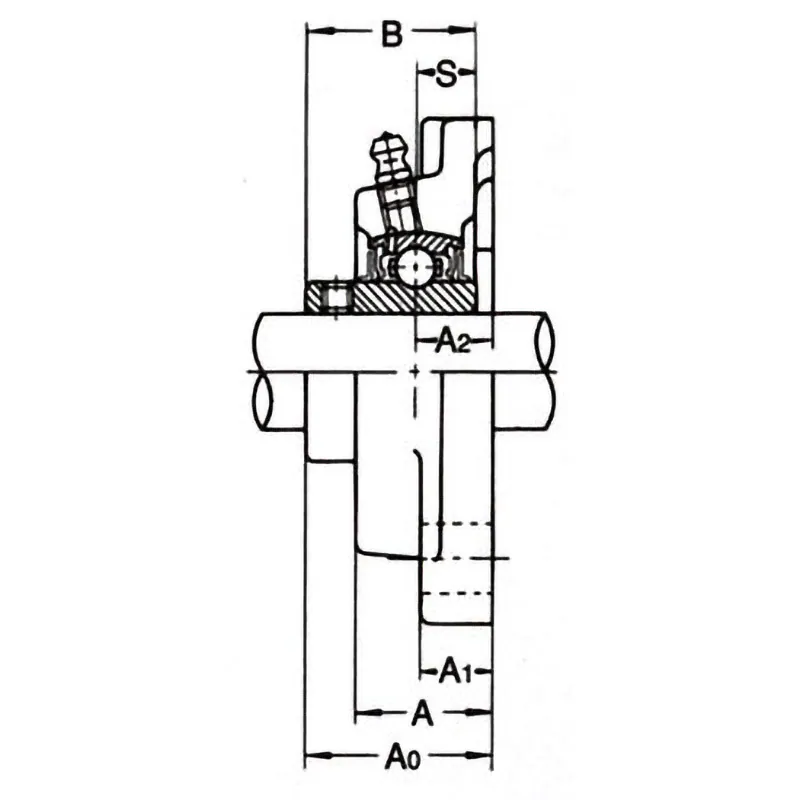

Dimension A (mm): 25.5
Dimension S (mm): 12.7
Dimension B (mm): 31
Dimension N (mm): 12
Dimension J (mm): 64
Dimension A1 (mm): 12
Dimension A2 (mm): 15
Dimension A0 (mm): 33.3
Bearing Specification: Number UC202
Standard Bearing Box Specification: Number F204
RoHS Directive (10 Substances Compliance): Compliant
The shape of the bearing box is square, designed to be mounted on the side wall of the machine, which simplifies the structure of the bearing mounting part, offering a wide range of applications.
