Description

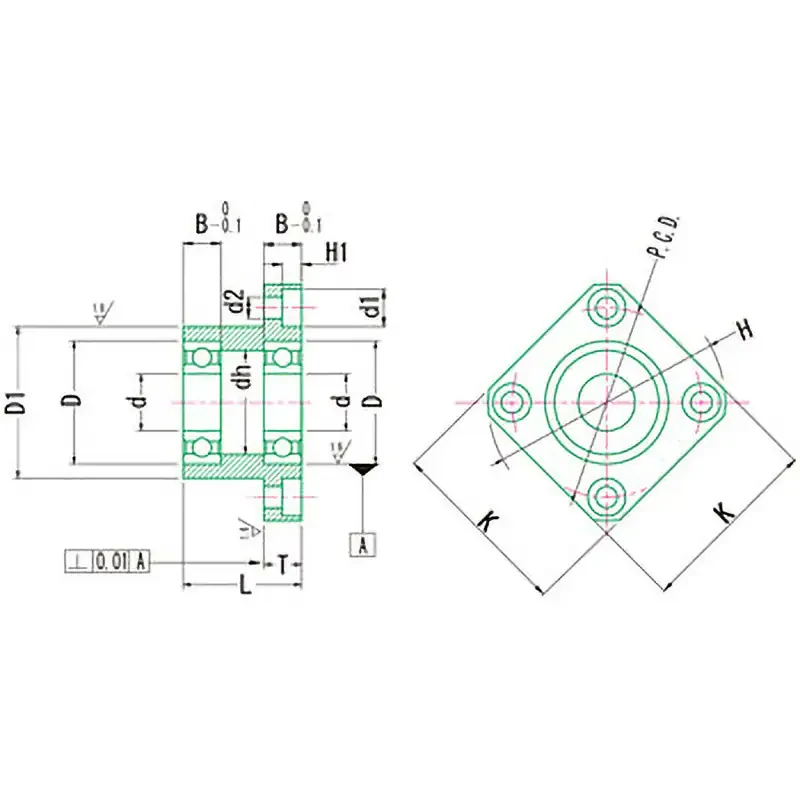

Dimension D1 (mm): (g7) Tolerance: 54-0.010-0.040
Dimension DH (mm): 41
Dimension H1 (mm): 8.1
Dimension P.C.D. (mm): 72
Dimension D (mm): 25
Dimension D2 (mm): 9
Material: (H)/ Lead-Free Electroless Nickel Plating, (B)/ Bearing Steel
Weight (g): 720
Dimension T: 13
Dimension D: (H7) Tolerance: 47+0.025
Dimension B: 12
Dimension H: 88
Dimension L: 40
Dimension D: 114
Dimension K: 67
