Description
Content Volume: 1 piece
Axis Diameter (mm): 70
Load Type: Light Load
Dimension A (mm): 72
Dimension B (mm): 74.6
Dimension H (mm): 79.4
Dimension H1 (mm): 27
Dimension H2 (mm): 157
Dimension J (mm): 210
Dimension L (mm): 266
Dimension L1 (mm): 77
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 30.2
Axis Diameter (mm): 70
Shape: Pillow Shape Unit
Grease Nipple: With Grease Nipple
Load Type: Light Load
Cover: No Cover
Axis Hole Type: Cylindrical Hole Type (with set screw)
Mass (kg): 6.6 (reference)
Seal: Triple Seal
Basic Static Load Rating (kN): 44
Basic Dynamic Load Rating (kN): 62.0
Mounting Bolt Specification: M20

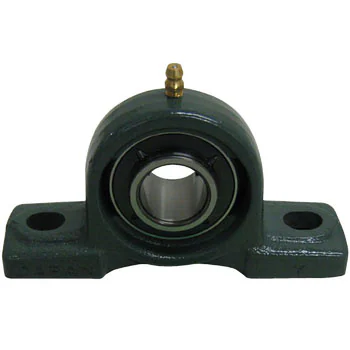

This is a representative type of bearing unit, equivalent to the combination of the traditionally widely used plummer block and self-aligning ball bearing, and can be easily mounted onto the shaft simply by tightening the set screw with a ball. It is most commonly used in transmission devices and general machinery.
