Description
Content Volume: 1 piece
Axis Diameter (mm): 55
Load Type: Light Load
Dimension A (mm): 60
Dimension B (mm): 55.6
Dimension H (mm): 63.5
Dimension H1 (mm): 23
Dimension H2 (mm): 126
Dimension J (mm): 171
Dimension L (mm): 219
Dimension L1 (mm): 65
Dimension N (mm): 20
Dimension N1 (mm): 23
Dimension S (mm): 22.2
Axis Diameter (mm): 55
Shape: Pillow Shape Unit
Grease Nipple: With Grease Nipple
Load Type: Light Load
Cover: No Cover
Axis Hole Type: Cylindrical Hole Type (with Set Screw)
Weight (kg): 3.3 (Reference)
Seal: Triple Seal
Basic Static Load Rating (kN): 29.2
Basic Dynamic Load Rating (kN): 43.5
Mounting Bolt Nominal: M16

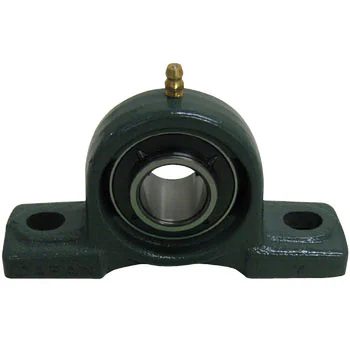

This is a representative type of bearing unit, equivalent to the conventional widely used plummer block and self-aligning ball bearing combination, which can be easily mounted onto the shaft by simply tightening the set screw with a ball, and is most commonly used in drive mechanisms and general machinery.
