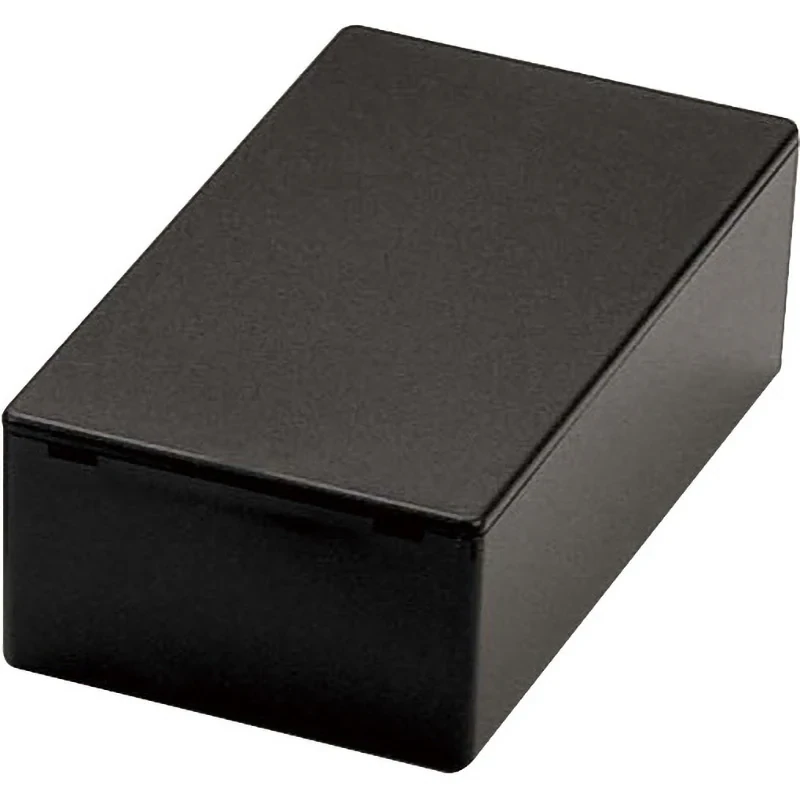

Description
Description: Quantity: 1 piece
Outer Dimension D (mm): 125
Material (Cover): ABS resin UL94HB
Material (Body): ABS resin (UL94HB)
Part Number: SW-125B
Trusco Part Number: 375-3557
Type: Type B
Operating Temperature Range (Celsius degrees): -10 to 60
Outer Dimension D (mm): 125
Outer Dimension W (mm): 70
Outer Dimension H (mm): 40
Finish: Entire surface textured finish
Material (Cover): ABS resin UL94HB
Flame Resistance: –
Material (Body): ABS resin (UL94HB)

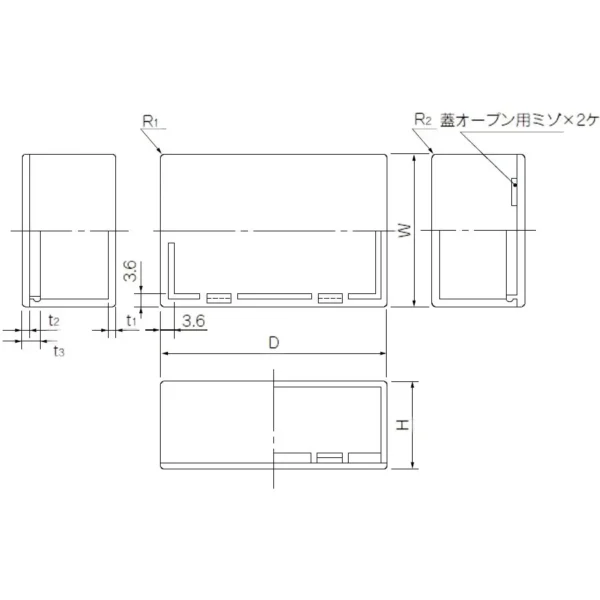

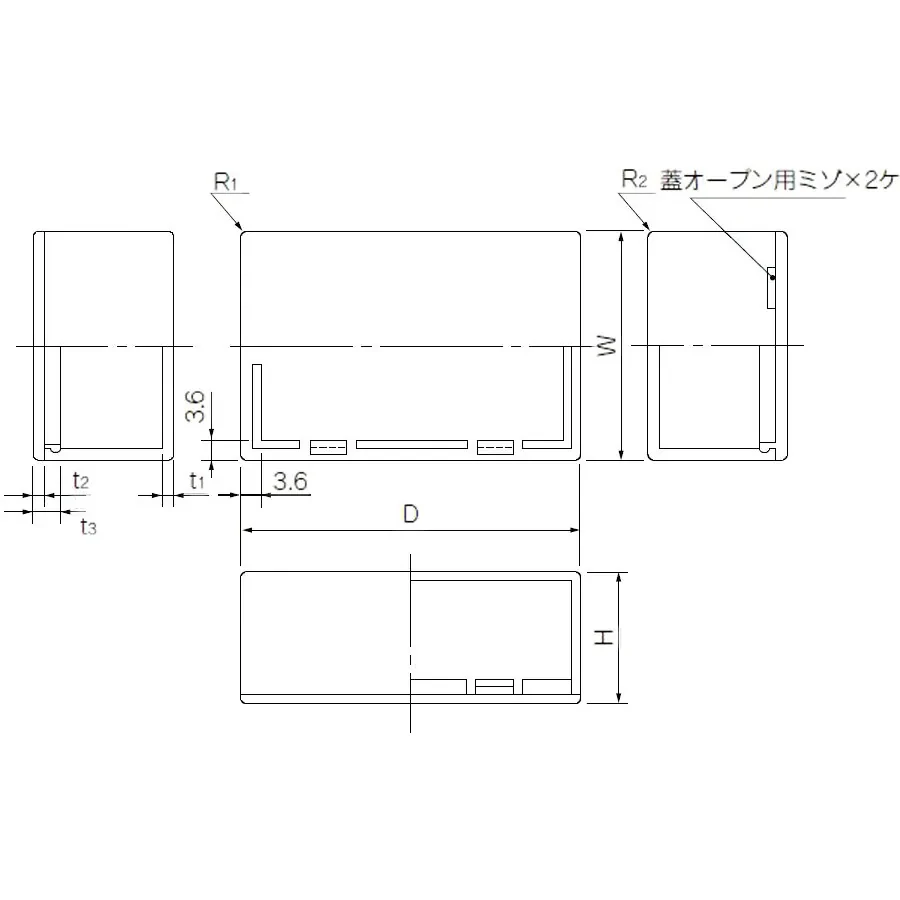

Dimension R1 (mm): 3
Dimension R2 (mm): 1.5
Dimension t1 (mm): 2.5
Dimension t2 (mm): 2.5
Dimension t3 (mm): 5.5
Color (Cover): Black
Compatible Body Color: Black
RoHS Directive (10 substances compliant): Compliant
Characteristic: General-Purpose type
Weight (g): 77
Effective Dimension (Width) (mm): 62.8 (internal)
Effective Dimension (Depth) (mm): 117.8 (internal)
Effective Dimension (Height) (mm): 32 (internal)
One-touch Open-Close structure.
Internal space is wide and usable.
Small case with multipurpose type.
