Description

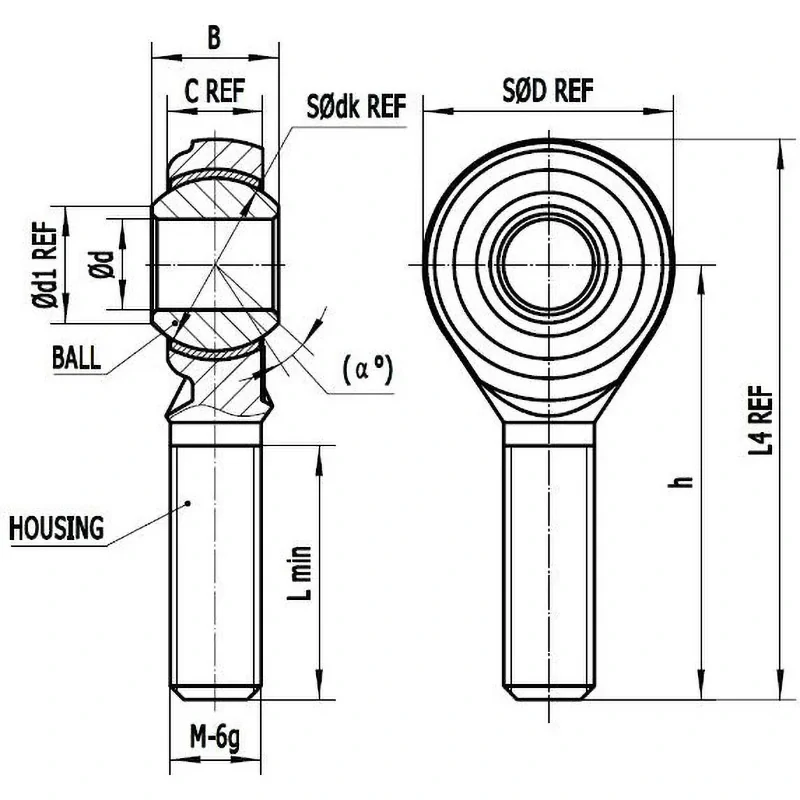

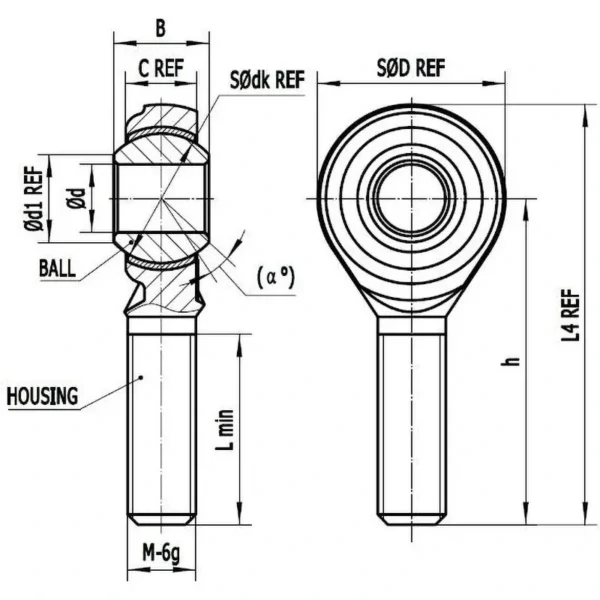

Dimensions B (mm): 28
Dimensions C (mm): 20
Minimum Length L (mm): 48
L4 Dimension (mm): 111
SD Dimension (mm): 54
d Dimension (mm): 22
d1 Dimension (mm): 25.8
dk Dimension (mm): 38.1
h Dimension (mm): 84
Weight (g): 433.3
Type: Left Thread Type
Dimension M (mm): M22*1.5
RoHS Directive (10 substances compliant): Compliant
Alpha (degrees): 15

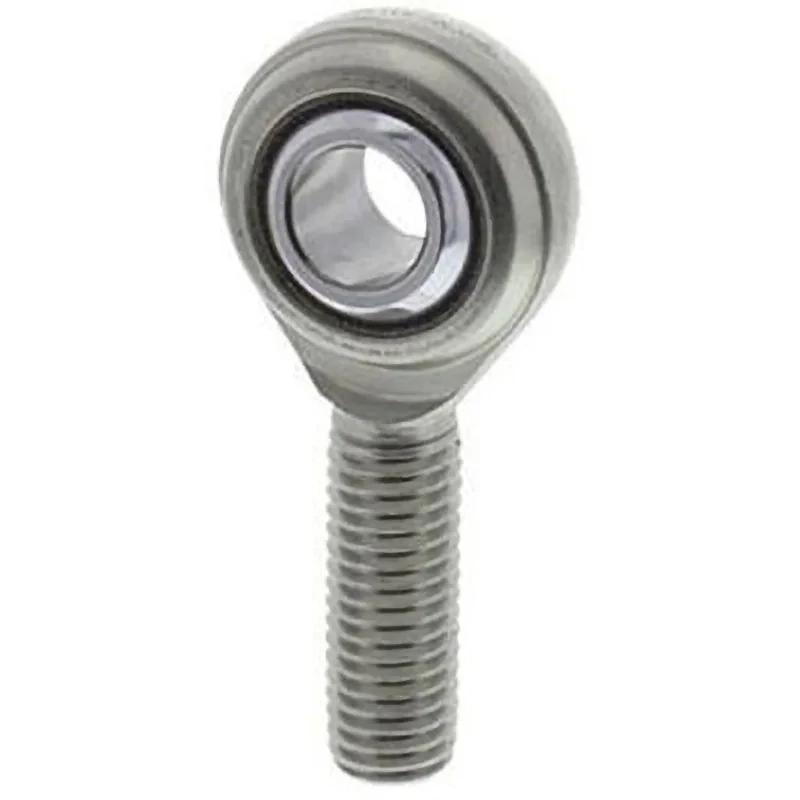

Used in spherical sliding bearings employing a spherical inner ring with the same precision and hardness as bearing-grade steel balls｣ｬ suitable for mounting at the Rod End｣ｬ of oscillating movement.
