Description
Contents: 1 piece
Axis diameter (mm): 45
Load type: Light load
Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 54
Dimension H1 (mm): 20
Dimension H2 (mm): 106
Dimension J (mm): 146
Dimension L (mm): 190
Dimension L1 (mm): 60
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 19
Axis diameter (mm): 45

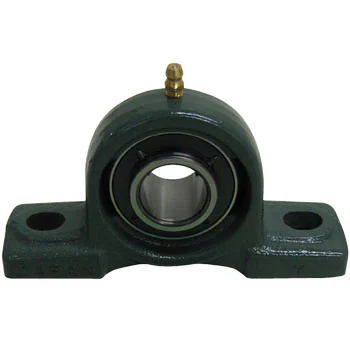

Shape: Pillow type unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 2.2 (reference)
Seal: Triple seal
Basic static load rating (kN): 20.4
Basic dynamic load rating (kN): 32.5
Mounting bolt designation: M14
This is a representative type of bearing unit, corresponding to the combination of the traditionally widely used plummer block and self-aligning ball bearing, which can be easily mounted onto the shaft by simply tightening the set screw with a ball. It is most commonly used in drive units and general machinery.
