Description

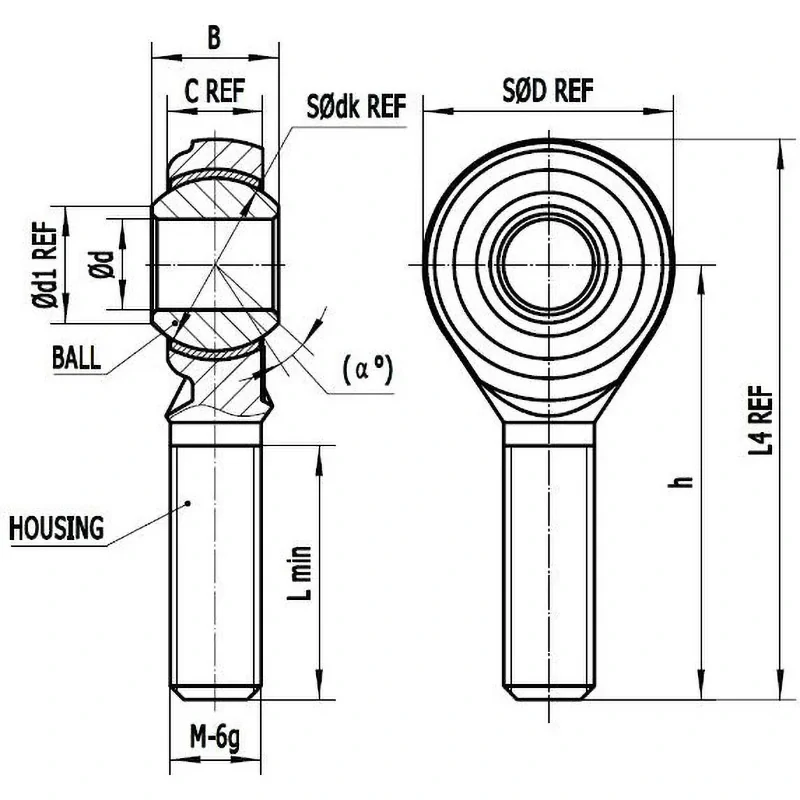

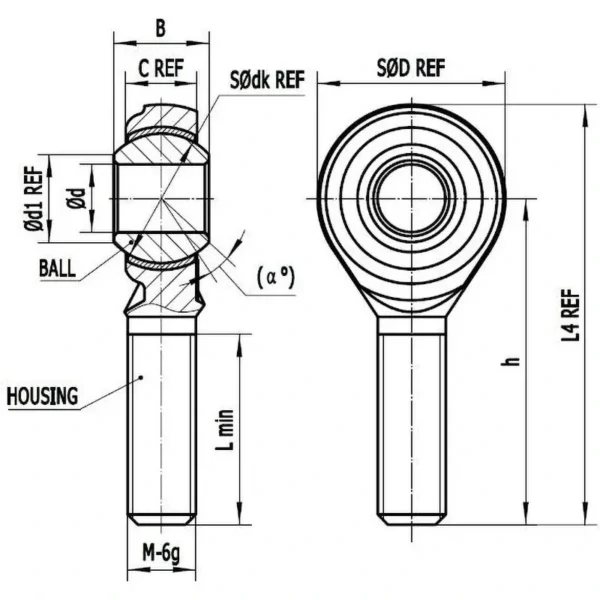

Dimension B (mm): 25
Dimension C (mm): 18
Dimension L (Min) (mm): 45
Dimension L4 (mm): 103
Dimension SD (mm): 50
Dimension d (mm): 20
Dimension d1 (mm): 24.4
Dimension dk (mm): 34.93
Dimension h (mm): 78
Weight (g): 324.6
Type: Left Thread
Dimension M (mm): M20*1.5
RoHS Directive (10 substances compliance): Compliant
Dimension alpha (degrees): 14

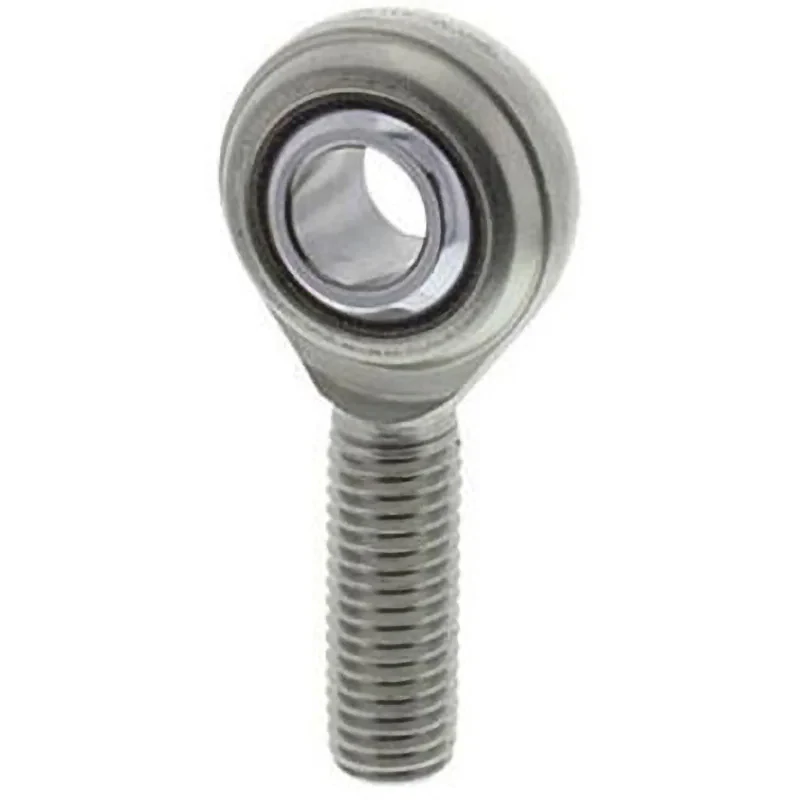

This is a spherical sliding bearing using a spherical inner ring with precision and hardness equivalent to bearing steel balls｣ｬ used for mounting at the Rod End｣ｬ for oscillatory motion.
