Description
Content: 1 piece
Axis diameter (mm): 40
Load type: Light load
Dimension A (mm): 54
Dimension B (mm): 49.2
Dimension H (mm): 49.2
Dimension H1 (mm): 18
Dimension H2 (mm): 98
Dimension J (mm): 137
Dimension L (mm): 184
Dimension L1 (mm): 52
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 19
Axis diameter (mm): 40

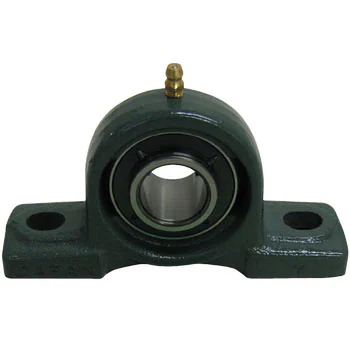

Shape: Pillow type unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 1.9 (reference)
Seal: Triple seal
Basic static load rating (kN): 17.8
Basic dynamic load rating (kN): 29.1
Mounting bolt specification: M14
This is a typical form of bearing unit, corresponding to the combination of the conventional widely used pillow block and self-aligning ball bearing, allowing for simple installation onto the shaft by tightening the ball-in set screw, and is most commonly used in drive devices and general machinery.
