Description
Contents: 1 piece
Axis diameter (mm): 65
Load type: Light load
Dimension A (mm): 70
Dimension B (mm): 65.1
Dimension H (mm): 76.2
Dimension H1 (mm): 27
Dimension H2 (mm): 151
Dimension J (mm): 203
Dimension L (mm): 265
Dimension L1 (mm): 77
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 25.4
Axis diameter (mm): 65

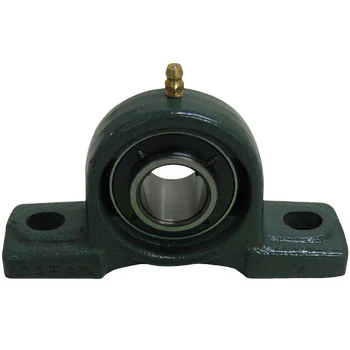

Shape: Pillow type unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 5.9 (reference)
Seal: Triple seal
Basic static load rating (kN): 40
Basic dynamic load rating (kN): 57.5
Installation bolt size: M20
This is a typical type of bearing unit, corresponding to the combination of the traditionally widely used plummer block and self-aligning ball bearing, allowing for easy mounting onto the axis by simply tightening the set screw with a ball. It is most commonly used in transmission equipment and general machinery.
