Description
Description: Quantity: 1 piece
External dimensions D (mm): 100
Material (Cover): ABS resin UL94HB
Material (Body): ABS resin (UL94HB)
Item number: SW-100B
Trusco item number: 375-3531
Type: Type B
Operating temperature range (Celsius degrees): -10 to 60
External dimensions D (mm): 100
External dimensions W (mm): 65
External dimensions H (mm): 35
Finish: Overall textured finish
Material (Cover): ABS resin UL94HB
Flame retardancy: –
Material (Body): ABS resin (UL94HB)

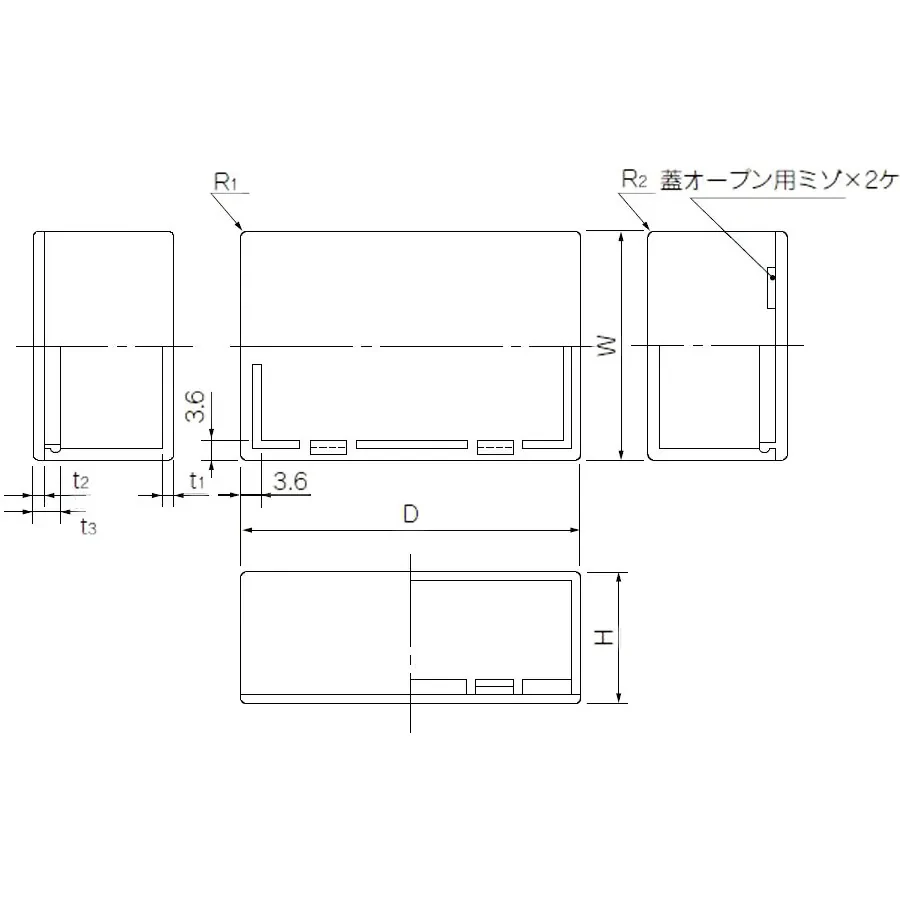

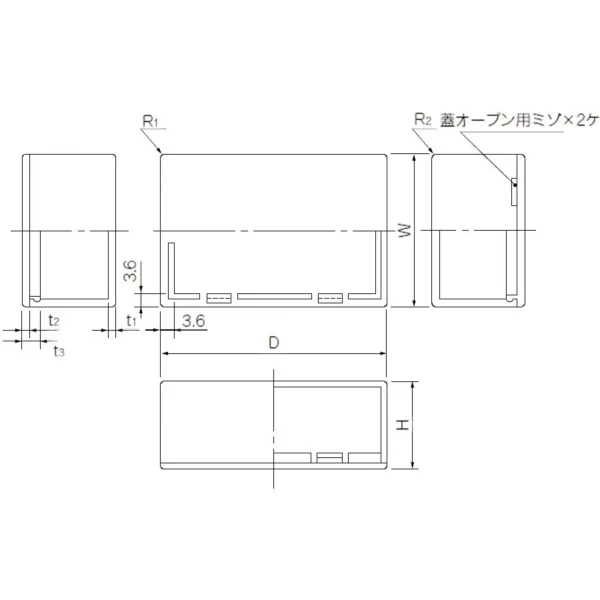

Dimension R1 (mm): 2
Dimension R2 (mm): 1.5
Dimension t1 (mm): 2
Dimension t2 (mm): 2.5
Dimension t3 (mm): 5.5
Color (Cover): Black
Compatible body color: Black
RoHS directive (10 substances compliance): Compliant
Characteristics: General-Purpose type
Weight (g): 55
Effective dimension (Width) (mm): 57.8 (Internal)
Effective dimension (Depth) (mm): 92.8 (Internal)
Effective dimension (Height) (mm): 27.5 (Internal)
One-touch Open-Close structure.
Wide internal space is available for use.
A compact case with multi-purpose type.
