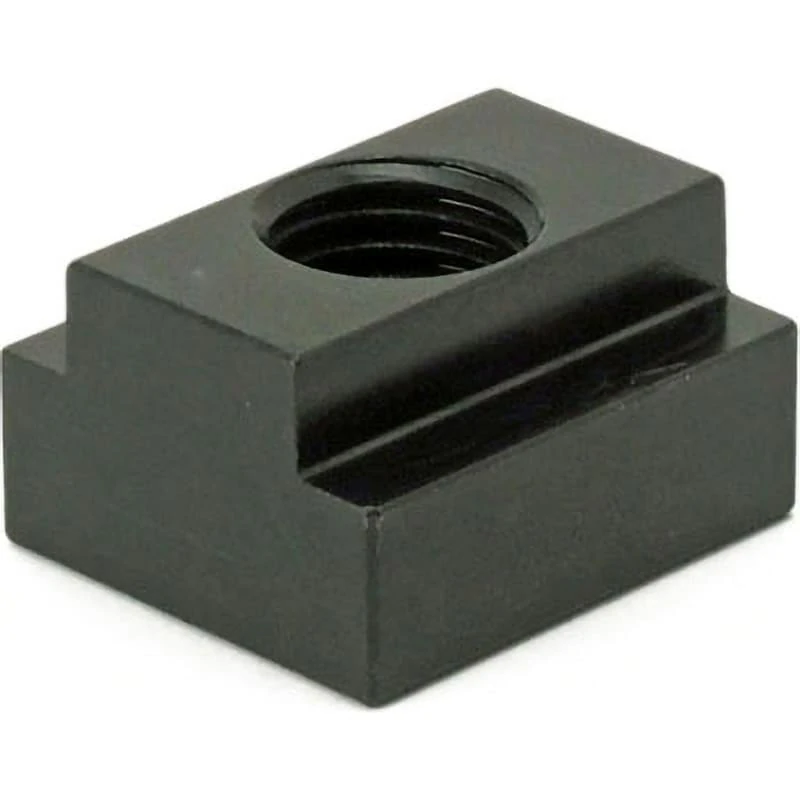

Description

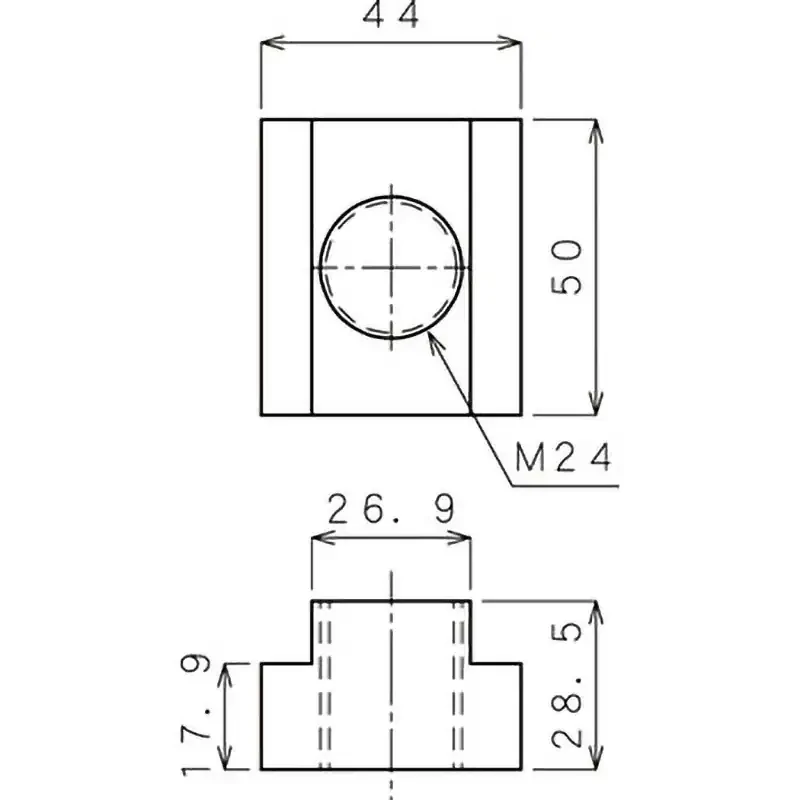

T-slot width (mm): 26.9
Compatible bolt diameter: M24*3.0
Height (mm): (protruding part width) 17.9
Total height (mm): 26.9
Purpose: For securing workpieces in milling machines and drill presses. For fixing bolts in T-slots.
TRUSCO Part No. 398-7604
Material: S45C
Length (mm): 50
Width (mm): 44
Weight (g): 312
Surface treatment: Black Oxide
Hardness HRC: 30
The bolt does not penetrate, so it will not damage the bed.
