Description
Contents: 1 piece
Axis diameter (mm): 60
Load type: Light load
Dimension A (mm): 70
Dimension B (mm): 65.1
Dimension H (mm): 69.8
Dimension H1 (mm): 25
Dimension H2 (mm): 138
Dimension J (mm): 184
Dimension L (mm): 241
Dimension L1 (mm): 70
Dimension N (mm): 20
Dimension N1 (mm): 23
Dimension S (mm): 25.4
Axis diameter (mm): 60

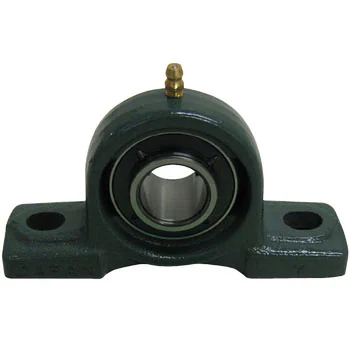

Shape: Pillow block unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 4.6 (reference)
Seal: Triple seal
Basic static load rating (kN): 36
Basic dynamic load rating (kN): 52.5
Mounting bolt specification: M16
This is a representative type of bearing unit, corresponding to the combination of the traditionally widely used plummer block and self-aligning ball bearing, allowing for easy installation onto the shaft by simply tightening the set screw with a ball, and is most commonly used in drive devices and general machinery.
