Description
Material: Body: SCM435, Ball: SUJ2, Spring: SWP-B, Spacer: SUS304
Type: Light Load

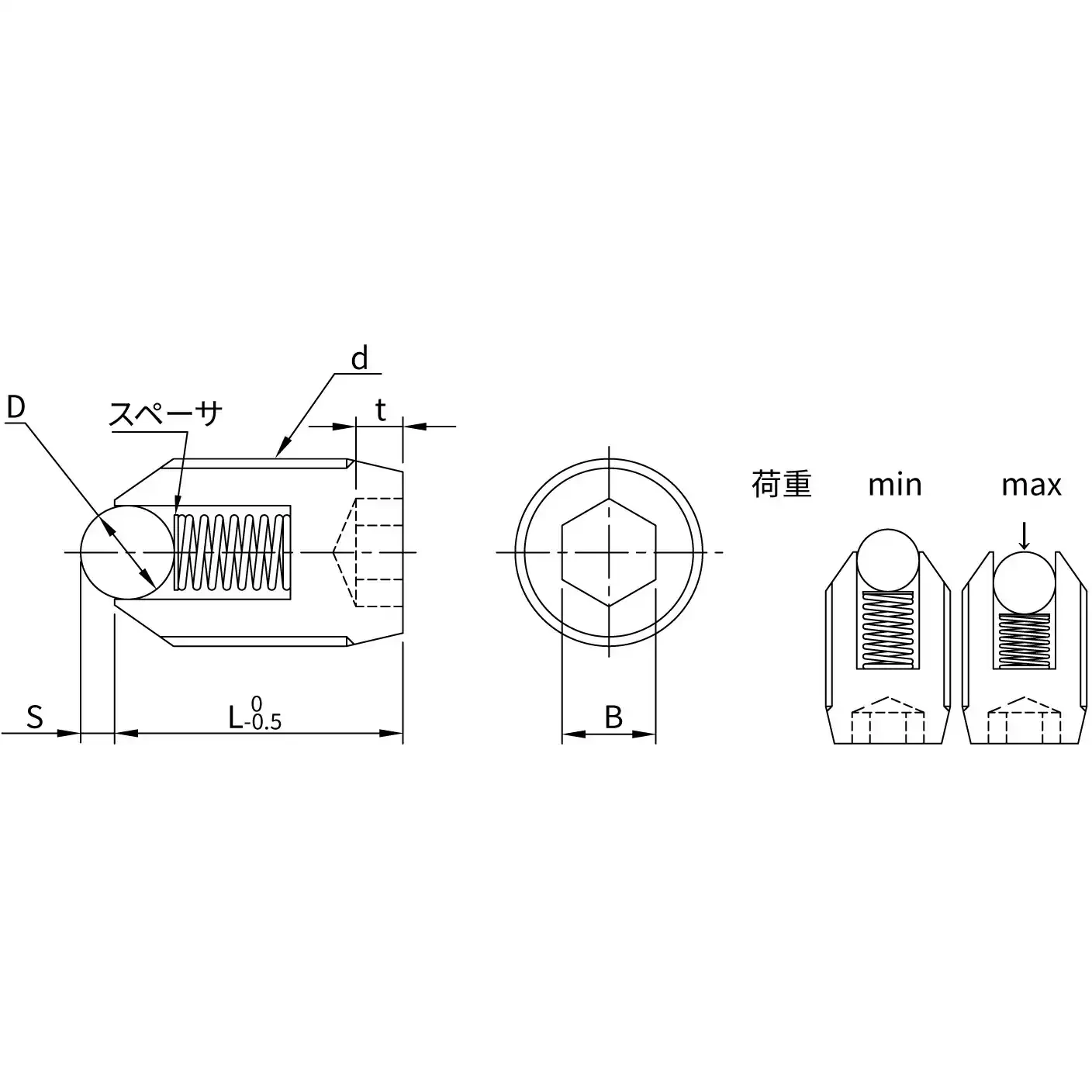

Dimension L (mm): 13
Hardness Body: 29 to 35 HRC, Ball: HRC 55 or higher
Dimension t (mm): 2.5
Dimension S (mm): 0.8
Operating Temperature (Celsius degrees): -30 to 80
Dimension D (mm): 3
Surface Treatment: Black Oxide Coating
Dimension B (mm): 3
Dimension N (mm): 14.7
Nominal Diameter: d6
