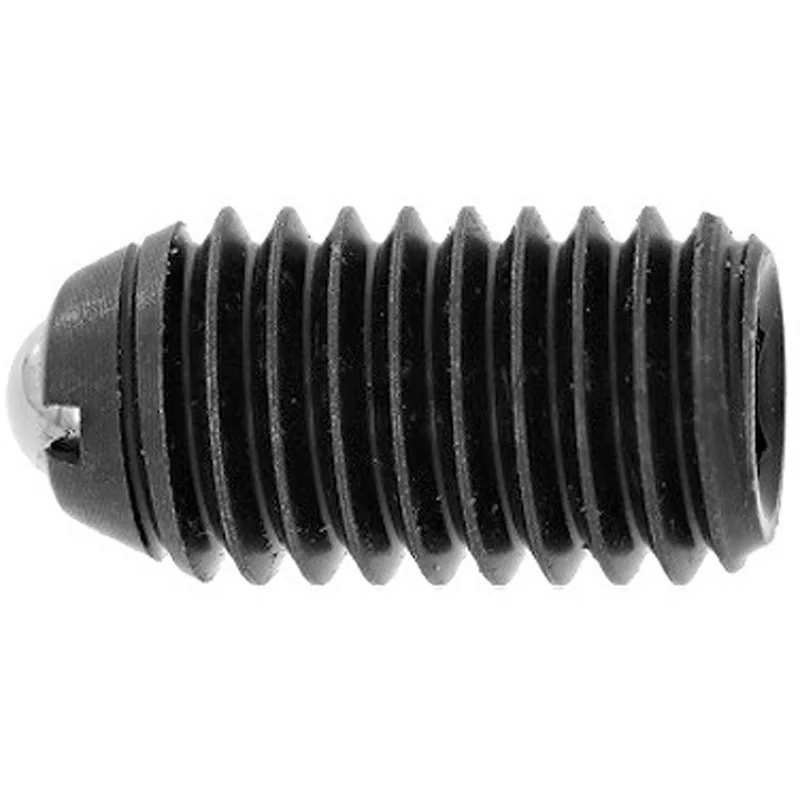

Description
Material: Main body: SCM435, Ball: SUJ2, Spring: SWP-B, Spacer: SUS304
Type: Light load

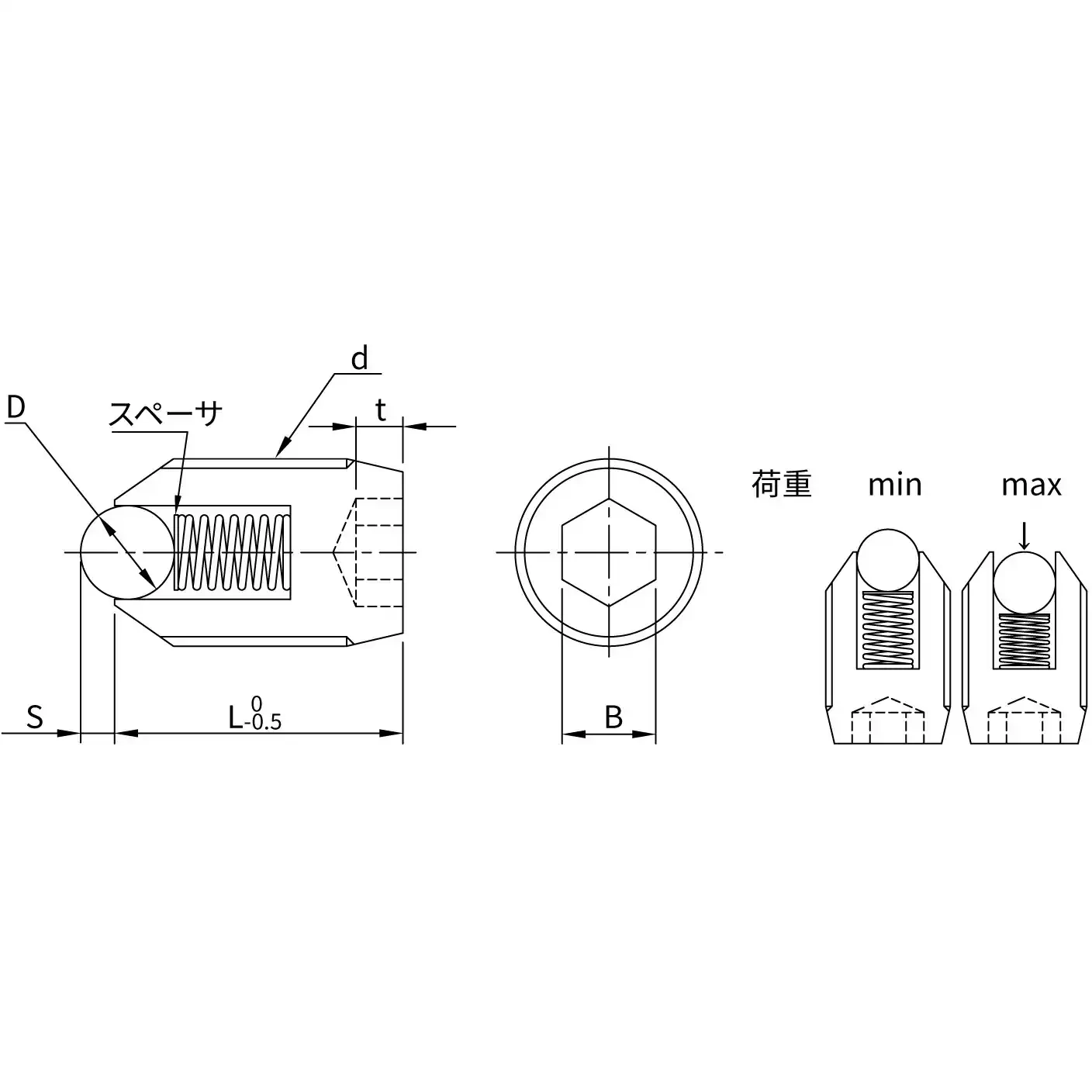

Dimensions L(mm): 12
Hardness main body: 29 to 35HRC, Ball: HRC55 or higher
Dimensions t(mm): 2
Dimensions S(mm): 0.8
Operating temperature (Celsius degrees): -30 to 80
Dimensions D(mm): 3
Surface treatment: Black oxide coating
Dimensions B(mm): 2.5
Dimensions N(mm): 9.8
Nominal diameter: d5
