Description
Contents: 1 piece
Axis diameter (mm): 35
Load type: Light load
Dimension A (mm): 48
Dimension B (mm): 42.9
Dimension H (mm): 47.6
Dimension H1 (mm): 18
Dimension H2 (mm): 93
Dimension J (mm): 127
Dimension L (mm): 167
Dimension L1 (mm): 54
Dimension N (mm): 17
Dimension N1 (mm): 20
Dimension S (mm): 17.5
Axis diameter (mm): 35

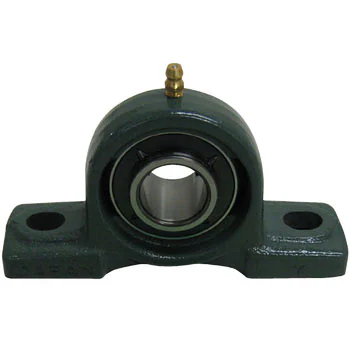

Shape: Pillow type unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 1.6 (reference)
Seal: Triple seal
Basic static load rating (kN): 15.3
Basic dynamic load rating (kN): 25.7
Mounting bolt size: M14
This is a representative type of bearing unit that corresponds to a combination of the traditionally widely used Plummer block and self-aligning ball bearings, making it easy to install on the shaft simply by tightening the set screw with a ball. It is most commonly used in transmission devices and general machinery.
