Description
Dimension A (mm): 135
Dimension B (mm): 32
Dimension C (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension F (mm): 64
Width W (mm): 12.5
Type: Roller Type
Stroke (mm): 270
Travel Distance (mm): 270
Rail Length (mm): 350
Rated Load (N): 196/Pair
Number of Steps: 2
Material: (Rail) Steel
Surface Treatment: (Rail) White Powder Coating
Set Contents: One each for left and right
Material / Finish (Outer Rail, Inner Rail, Rivet): Steel / (Outer Rail, Inner Rail) White Powder Coating, (Rivet) Nickel Plating
Weight (kg): 0.445
Height (mm): 22.2
Weight (g): 445
Number of Installation Holes: Inner Rail: 11, Outer Rail: 12

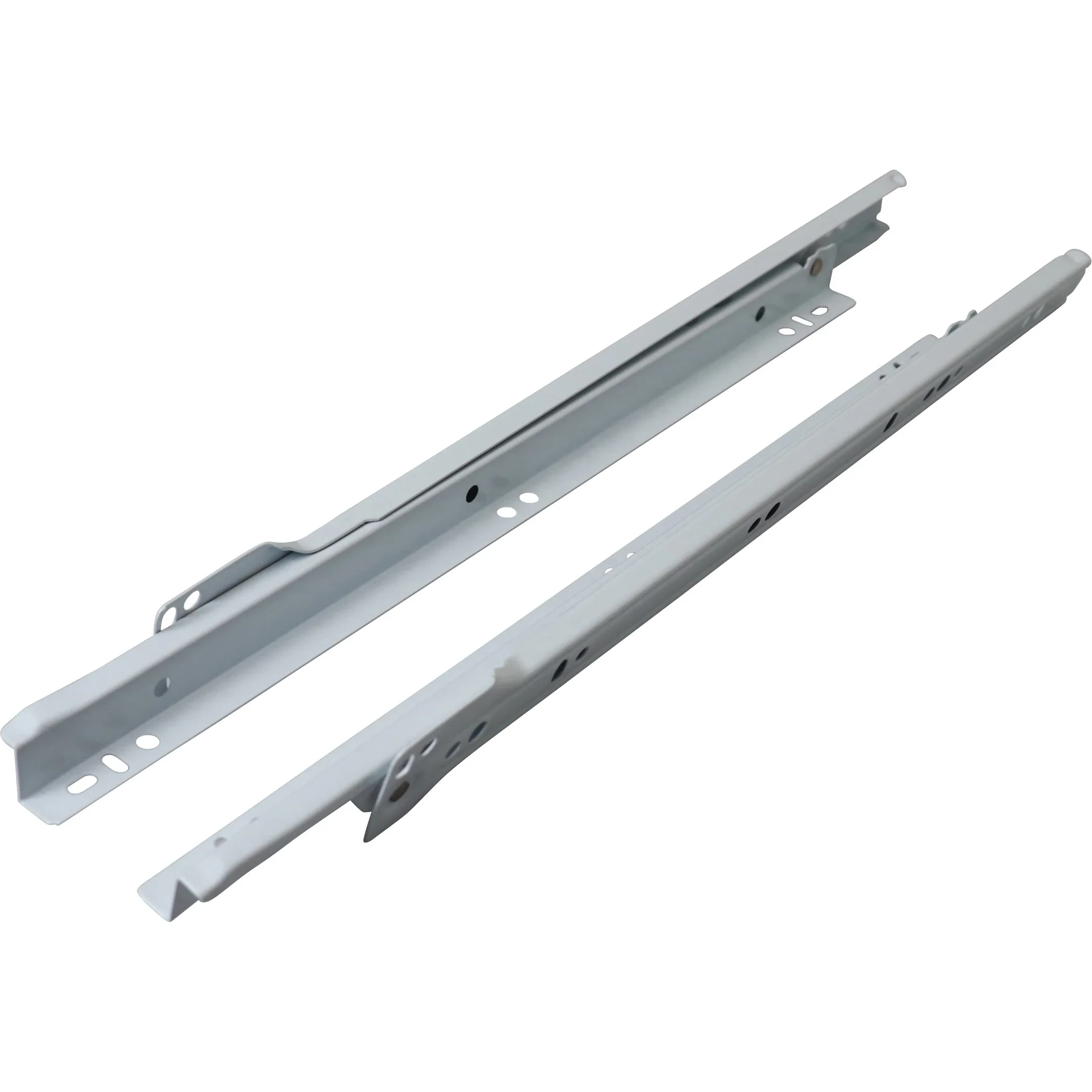

This is a 3/4 slide two-step pull-out slide rail.
The rail can be detached and attached.
This is a bottom-mounted type slide rail that attaches the rail to the bottom of the drawer.
