Description
Dimension A (mm): 110
Dimension B (mm): 32
Dimension C (mm): –
Dimension D (mm): –
Dimension E (mm): –
Dimension F (mm): –
Width W (mm): 12.5
Type: Roller type
Stroke (mm): 220
Travel distance (mm): 220
Rail length (mm): 300
Rated load (N): 196/pair
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) White powder coating
Set contents: 1 piece each for left and right
Material/Finish (Outer rail, Inner rail, Rivet): Steel / (Outer rail, Inner rail) White powder coating, (Rivet) Nickel plating
Weight (kg): 0.38
Height (mm): 22.2
Weight (g): 380
Number of mounting holes: Inner rail: 11, Outer rail: 10

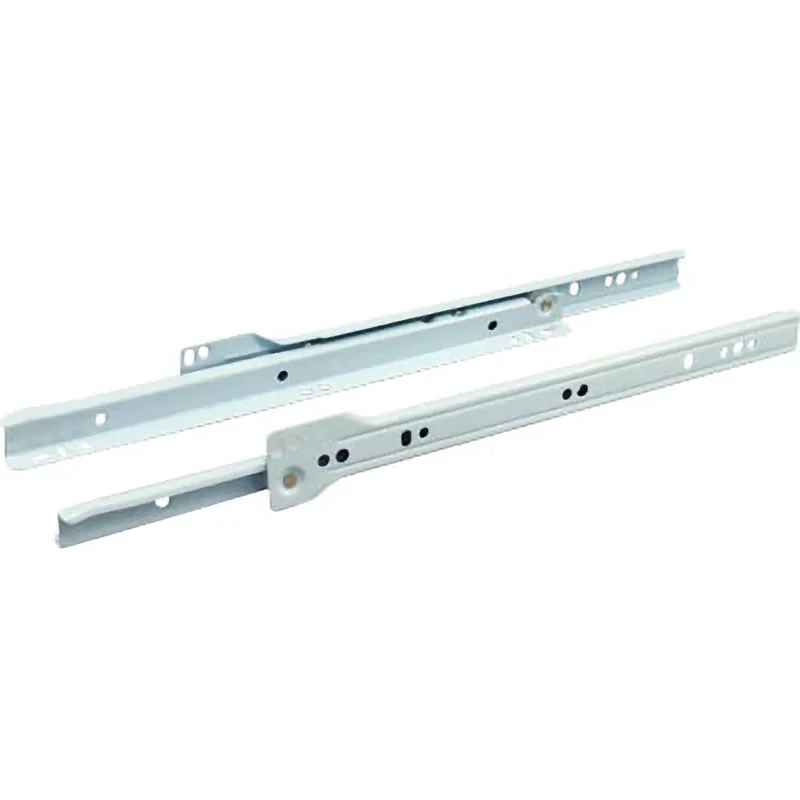

This is a 3/4 slide, two-stage pull-out slide rail.
The rail can be detached.
This is a bottom-mounted type slide rail that attaches the rail to the bottom of the drawer.
