Description
Quantity: 1 piece
External dimensions D (mm): 85
Material (cover): ABS resin UL94HB
Material (body): ABS resin (UL94HB)
Part number: SW-85S
Type: S type
Operating temperature range (Celsius degrees): -10 to 60
External dimensions D (mm): 85
External dimensions W (mm): 60
External dimensions H (mm): 40
Finish: Overall textured finish
Material (cover): ABS resin UL94HB
Flame retardancy: –
Material (body): ABS resin (UL94HB)
Dimension R1 (mm): –
Dimension R2 (mm): –
Dimension t1 (mm): –
Dimension t2 (mm): –
Dimension t3 (mm): –
Color (cover): Light gray
Corresponding body color: Light gray
RoHS directive (10 substances compliance): Compliant
Characteristics: General-Purpose type
Weight (g): 43
Effective dimensions (width) (mm): 52.8 (internal)
Effective dimensions (depth) (mm): 77.8 (internal)
Effective dimensions (height) (mm): 32.7 (internal)

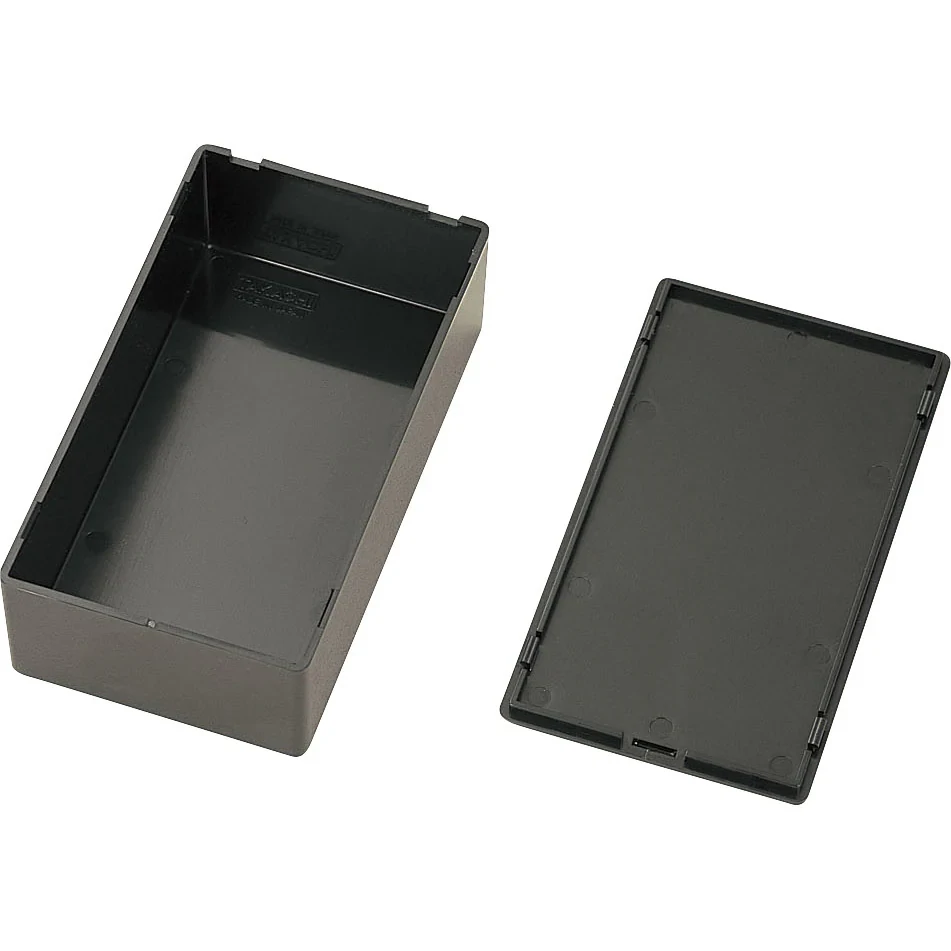

One-touch Open-Close structure.
Internal space is wide and usable.
Compact case and multi-purpose type.
