Description
Width W (mm): 48.5
Type: Slide type
Stroke (mm): 499
Travel distance (mm): 499
Rail length (mm): 679
Rated load (N): 49 per unit
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) Glossy chromate treatment
Specification: Bottom-mounted
Material: /Finish steel/Mounting bracket, inner rail, outer rail: Glossy chromate treatment (trivalent chromium) Retainer: Zinc-plated steel sheet
Height (mm): 33
Weight (g): 710
Depth (mm): (Drawer) 625 to 673, (Cabinet) 686 to 724
Weight (kg/unit): 5
Recommended screw size: Please use either #4 bind, truss, or pan screws.

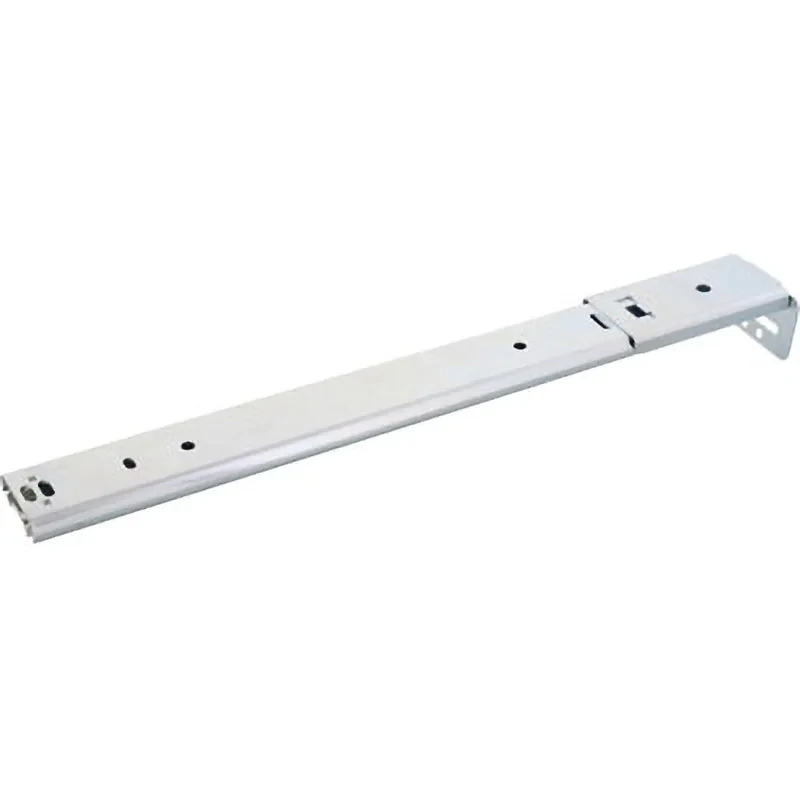

This is a 3/4 slide, 2-stage pull slide rail.
This is a bottom-mounted type where the rail is attached to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance. Pulling harder will detach the rail for removal.
