Description
Contents: 1 piece
Axis diameter (mm): 25
Load type: Light load
Dimension A (mm): 38
Dimension B (mm): 34.1
Dimension H (mm): 36.5
Dimension H1 (mm): 15
Dimension H2 (mm): 71
Dimension J (mm): 105
Dimension L (mm): 140
Dimension L1 (mm): 42
Dimension N (mm): 13
Dimension N1 (mm): 16
Dimension S (mm): 14.3
Axis diameter (mm): 25

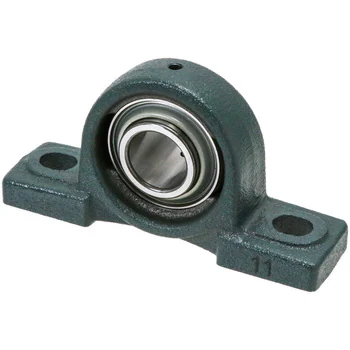

Shape: Pillow type unit
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 0.8 (reference)
Seal: Triple seal
Basic static load rating (kN): 7.85
Basic dynamic load rating (kN): 14.0
Mounting bolt size: M10
This is a representative type of bearing unit, corresponding to the combination of the conventionally widely used Plummer block and self-aligning ball bearings. It can be easily mounted on the shaft by simply tightening the set screw with a ball, and is most commonly used in transmission devices and general machinery.
