Description
Width W (mm): 48.5
Type: Slide Type
Stroke (mm): 450
Travel Distance (mm): 450
Rail Length (mm): 629
Rated Load (N): 54/per unit
Number of Steps: 2
Material: (Rail) Steel
Surface Treatment: (Rail) Glossy Chromate Treatment
Specification: Bottom-Mount
Material: / Finished Steel / Mounting Bracket, Inner Rail, Outer Rail: Glossy Chromate Treatment (Trivalent Chromium) Retainer: Zinc-Plated Steel Plate
Height (mm): 33
Weight (g): 660
Depth (mm): (Drawer) 575 to 622, (Cabinet) 635 to 673
Weight (kg/per unit): 5.5
Recommended Screw Size: Please use either #4 bind, truss, or pan screws.

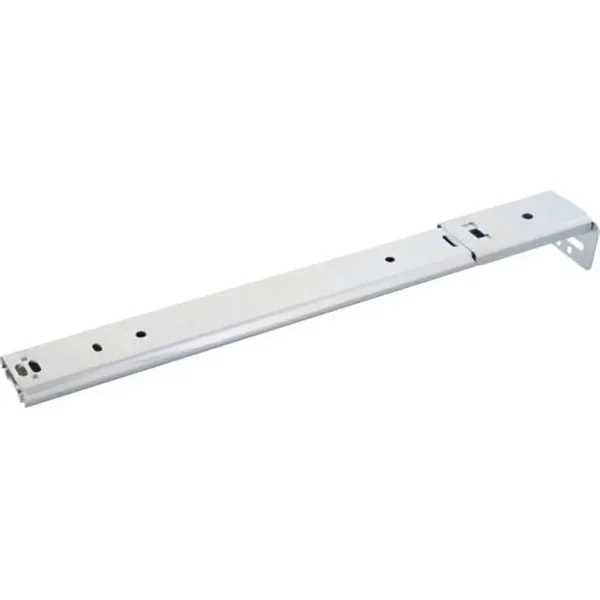

This is a 3/4 slide two-stage pull-out slide rail.
This is a bottom-mount type that installs the rail on the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance acting as a brake. If you pull harder, the rail will detach and can be removed.
