Description
Dimension B (mm): 28
Dimension C1 (mm): 20
Dimension G (mm): M22*1.5
Dimension d (mm): 22
Dimension d1 (mm): 25.8
Dimension d2 (mm): 50
Dimension h (mm): 84
Dimension l1 (mm): 51
Dimension l2 (mm): 109
Chamfer Dimension r1 (mm): 0.2
Specification 1N is approximately equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 435
Type: Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 74700
Static Load Capacity (N): 36400
Ball Diameter (mm): 38.100

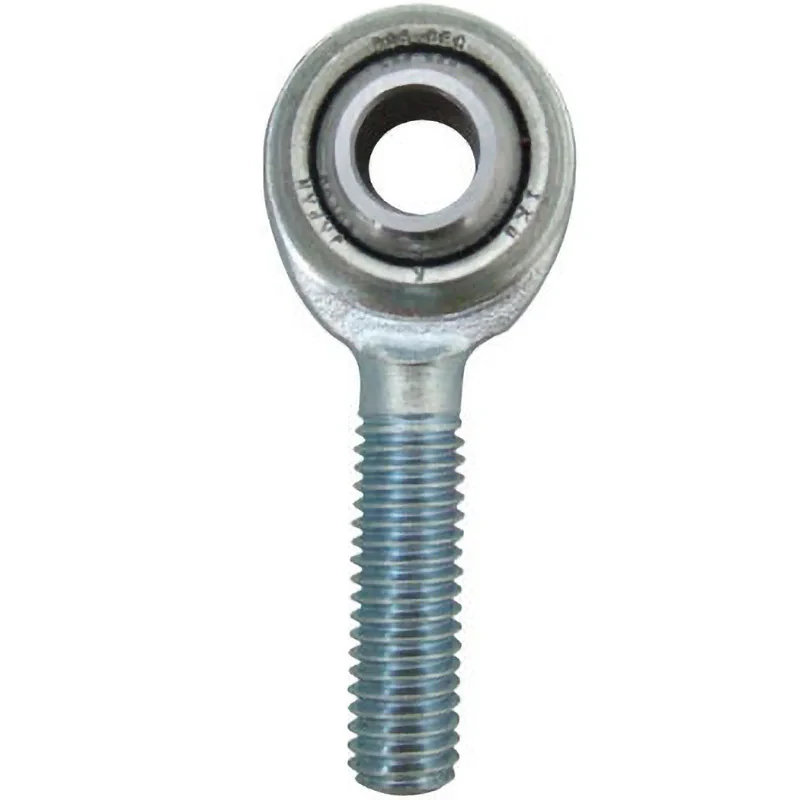

This is an automatic self-aligning spherical sliding bearing capable of bearing large radial loads and bi-directional axial loads simultaneously with a small capacity.
Pillow ball Rod End｣ｬs are easy to install as they have internal or external threads machined into the body.
It is used in control mechanisms and linkage mechanisms in machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
