Description
Description: Quantity: 1 piece

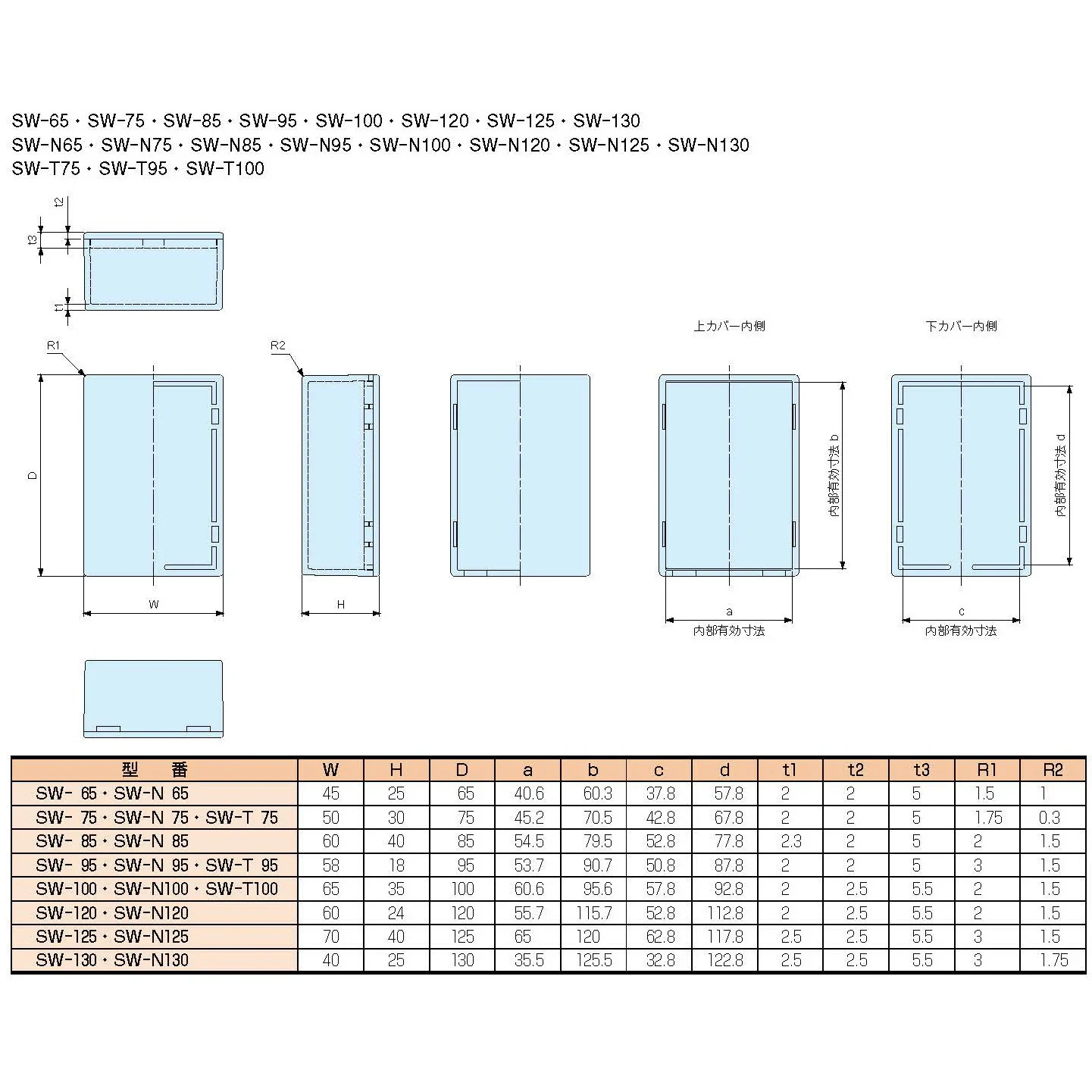

Outer dimensions D(mm): 85
Material (Cover): ABS resin UL94HB
Material (Body): ABS resin (UL94HB)
Part number: SW-85B
Type: Type B
Operating temperature range (Celsius degrees): -10 to 60
Outer dimensions D(mm): 85
Outer dimensions W(mm): 60
Outer dimensions H(mm): 40
Finish: All-over textured finish
Material (Cover): ABS resin UL94HB
Flame retardant: –
Material (Body): ABS resin (UL94HB)
Dimension R1(mm): –
Dimension R2(mm): –
Dimension t1(mm): –
Dimension t2(mm): –
Dimension t3(mm): –
Color (Cover): Black
Corresponding body color: Black
RoHS directive (10 substances compliance): Compliant
Characteristics: General-Purpose type
Weight (g): 43
Effective dimension (width) (mm): 52.8 (internal)
Effective dimension (depth) (mm): 77.8 (internal)
Effective dimension (height) (mm): 32.7 (internal)

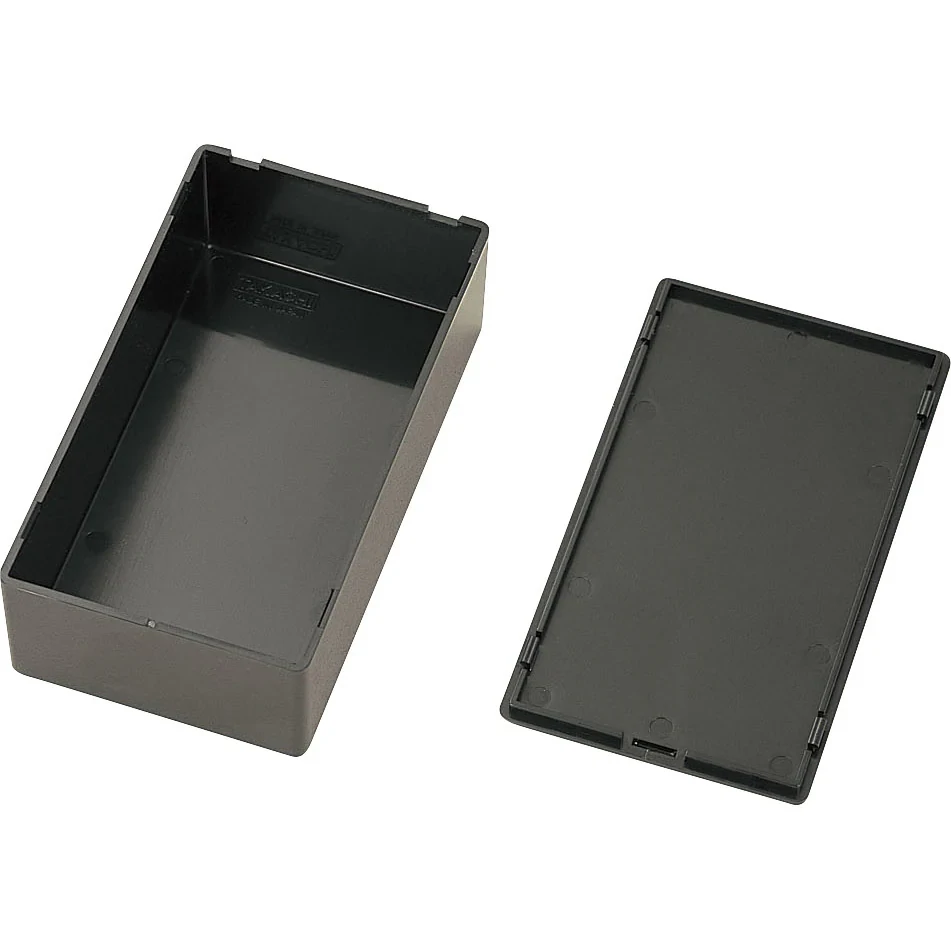

One-touch Open-Close structure.
Internal space is wide and usable.
Compact case for multi-purpose use.
