Description
Width W (mm): 48.5
Type: Slide type
Stroke (mm): 424
Travel distance (mm): 424
Rail length (mm): 578
Rated load (N): 59 per unit
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) Glossy chromate treatment
Specification: Bottom pull
Material: / Finished steel / Mounting bracket, inner rail, outer rail: Glossy chromate treatment (trivalent chrome) Retainer: Zinc-plated steel plate
Height (mm): 33
Weight (g): 610
Depth (mm): (Drawer) 524 to 572, (Cabinet) 584 to 622
Weight (kg/unit): 6
Recommended screw size: Please use either 4 bind screws, truss screws, or pan screws.

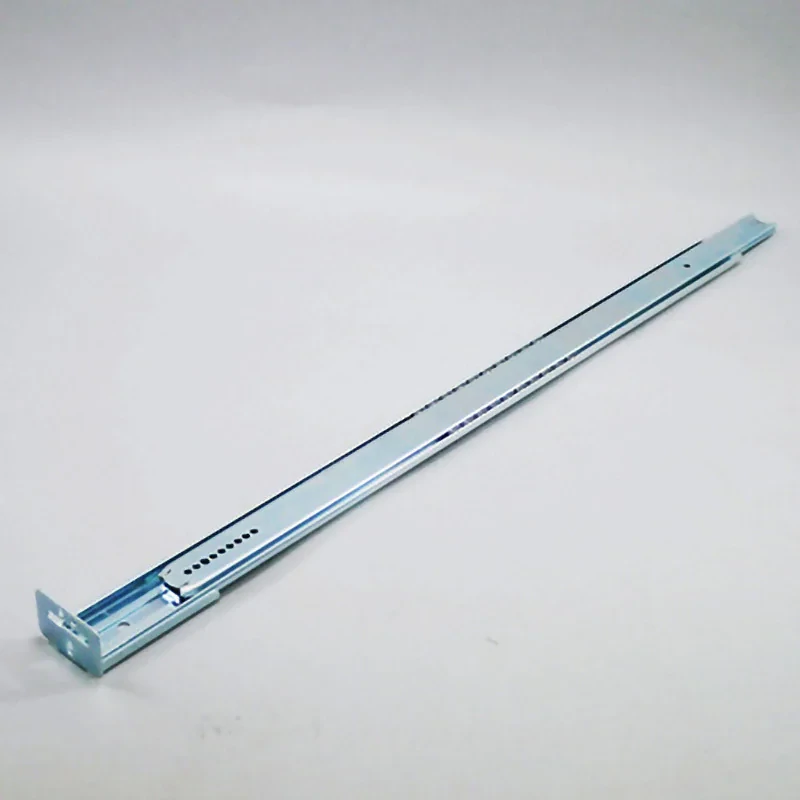

This is a 3/4 slide two-stage pull slide rail.
It is a bottom pull type where the rail is installed at the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance. If pulled harder, the rail can be detached and removed.
