Description
Material: Main body: SCM435, Ball: SUJ2, Spring: SWP-B, Spacer: SUS304
Type: Light load

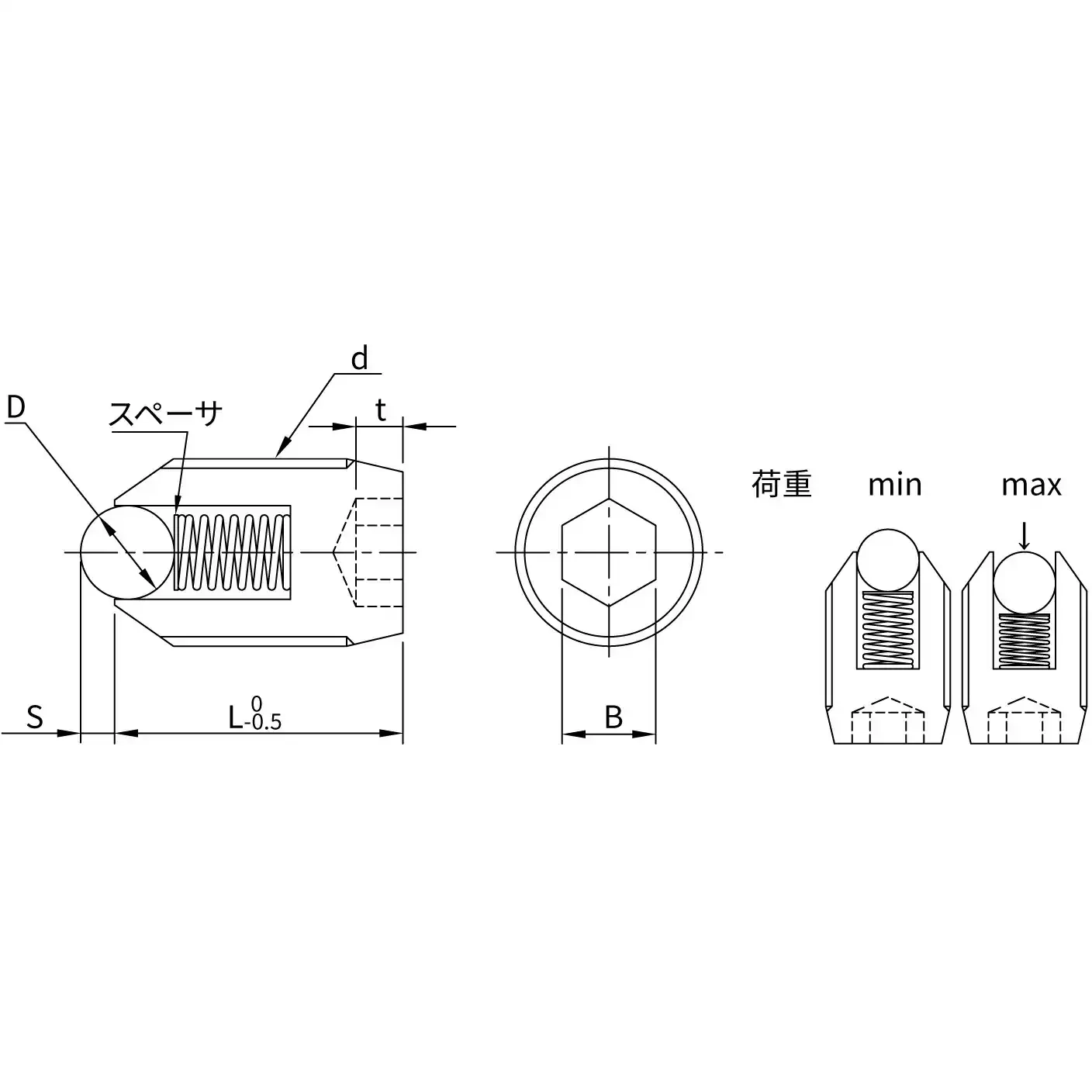

Dimension L (mm): 20
Hardness Main body: 29 to 35 HRC, Ball: HRC 55 or higher
Dimension t (mm): 3
Dimension S (mm): 1.8
Operating temperature (Celsius degrees): -30 to 80
Dimension D (mm): 7.1
Surface treatment: Black oxide coating
Dimension B (mm): 6
Dimension N (mm): 29.4
Nominal diameter: d12
