Description

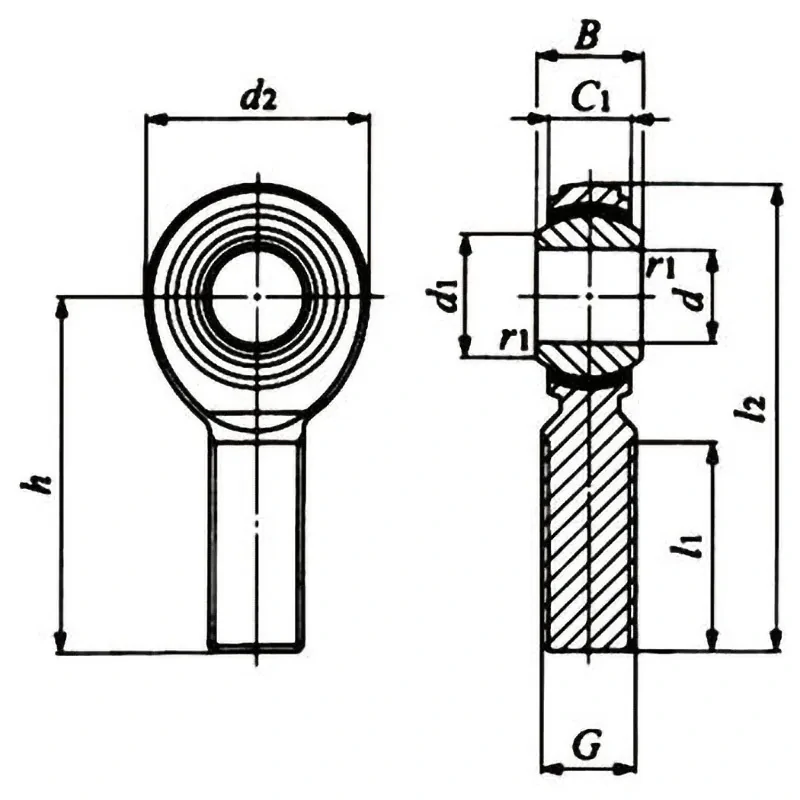

Dimension B (mm): 25
Dimension C1 (mm): 18
Dimension G (mm): M20*1.5
Dimension d (mm): 20
Dimension d1 (mm): 24.4
Dimension d2 (mm): 46
Dimension h (mm): 78
Dimension l1 (mm): 47
Dimension l2 (mm): 101
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 340
Type: Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type:Lubrication-Free
Dynamic Load Capacity (N): 61600
Static Load Capacity (N): 30000
Ball Diameter (mm): 34.925

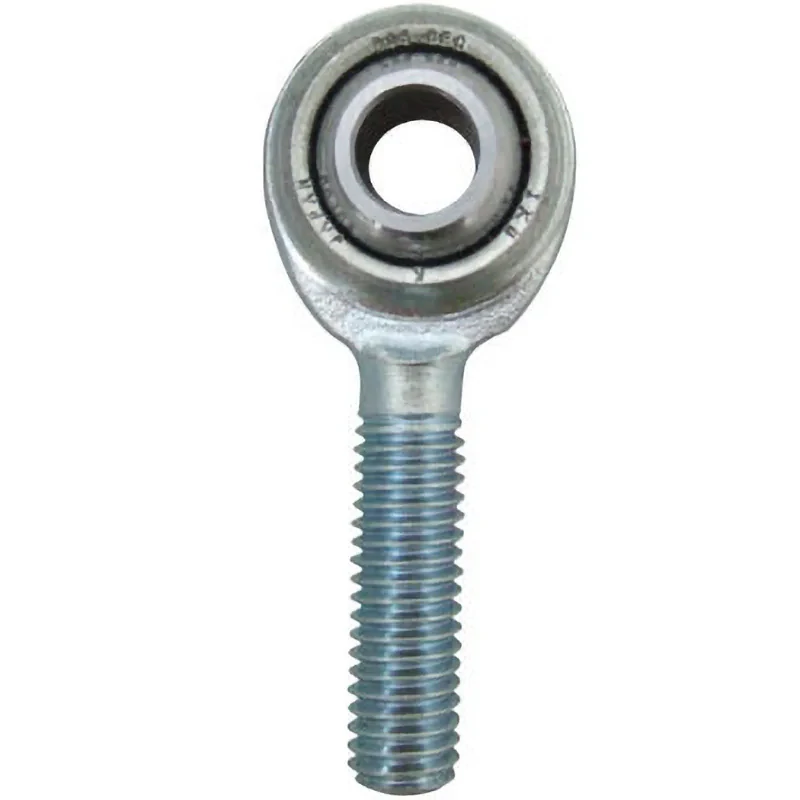

This is an automatic self-aligning spherical sliding bearing that can simultaneously accommodate large radial loads and bi-directional axial loads with a small capacity.
The pillow ball Rod End｣ｬ has a female or male thread processed into the main body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms for machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
