Description
Dimension B (mm): 23
Dimension C1 (mm): 16.5
Dimension G (mm): M18*1.5
Dimension d (mm): 18
Dimension d1 (mm): 21.9
Dimension d2 (mm): 42
Dimension h (mm): 72
Dimension l1 (mm): 44
Dimension l2 (mm): 93
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 260
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 51400
Static Load Capacity (N): 25100
Ball Diameter (mm): 31.750

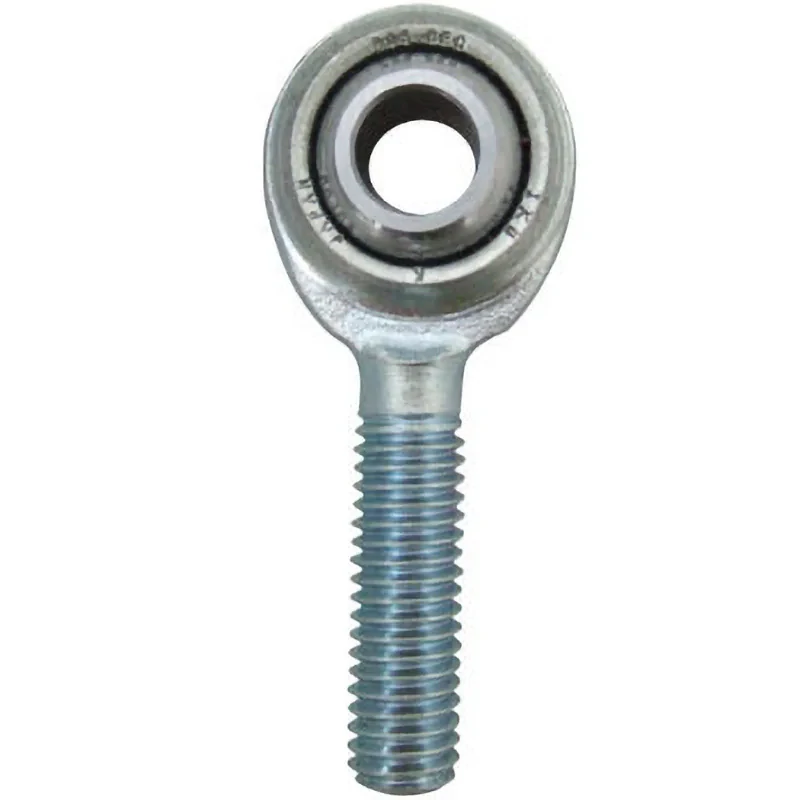

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear a large radial load and bi-directional axial load with a small capacity.
The Pillow Ball Rod End｣ｬ features either internal or external threads processed into the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms in machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
