Description
Width W (mm): 48.5
Type: Slide Type
Stroke (mm): 393
Movement Distance (mm): 393
Rail Length (mm): 527
Rated Load (N): 64 per piece
Number of Levels: 2
Material: (Rail) Steel
Surface Treatment: (Rail) Glossy Chromate Treatment
Specification: Bottom Mount
Material: /Finish Steel / Mounting Bracket, Inner Rail, Outer Rail: Glossy Chromate Treatment (Trivalent Chromium) Retainer: Zinc-Plated Steel Plate
Height (mm): 33
Weight (g): 560
Depth (mm): (Drawer) 473 to 521, (Cabinet) 533 to 572
Weight (kg/piece): 6.5
Recommended Screw Size: Please use either 4 binding, truss, or pan screws.

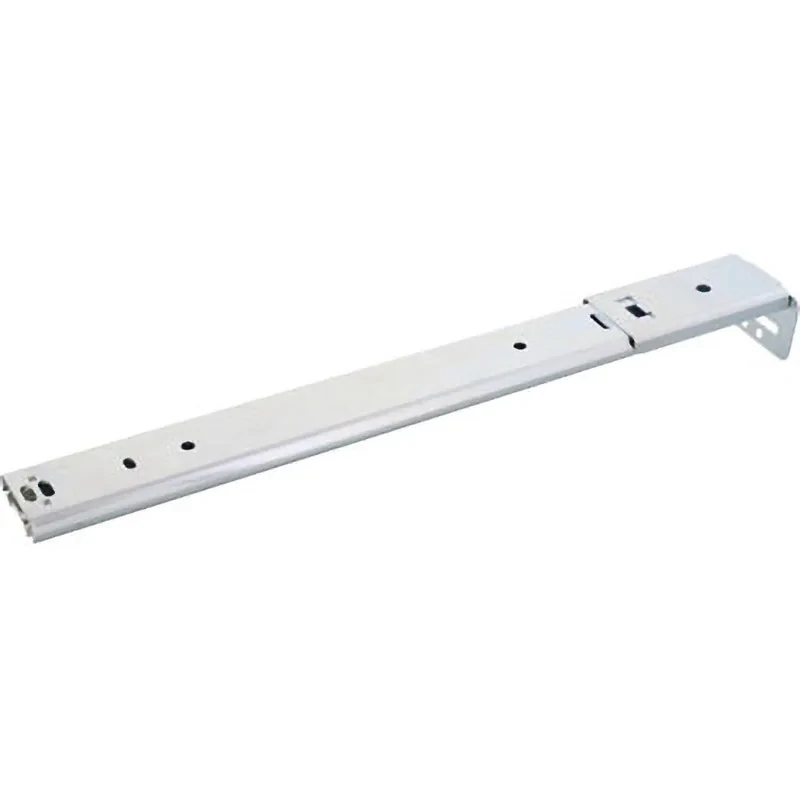

This is a 3/4 slide double-level slide rail.
It is a bottom mount type that attaches the rail to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance acting as a brake. If pulled harder, the rail will detach and can be removed.
