Description
Width W (mm): 48.5
Type: Slide Type
Stroke (mm): 310
Travel Distance (mm): 310
Rail Length (mm): 476
Rated Load (N): 69 / piece
Number of Steps: 2
Material: (Rail) Steel
Surface Treatment: (Rail) Glossy Chromate Treatment
Specification: Bottom Mount
Material: / Finish Steel / Mounting Bracket, Inner Rail, Outer Rail: Glossy Chromate Treatment (Trivalent Chromium) Retainer: Zinc-Plated Steel Plate
Height (mm): 33
Weight (g): 510
Depth (mm): (Drawer) 422 to 470, (Cabinet) 483 to 521
Weight (kg/piece): 7
Recommended Screw Size: Use either 4 bind, truss, or pan screws.

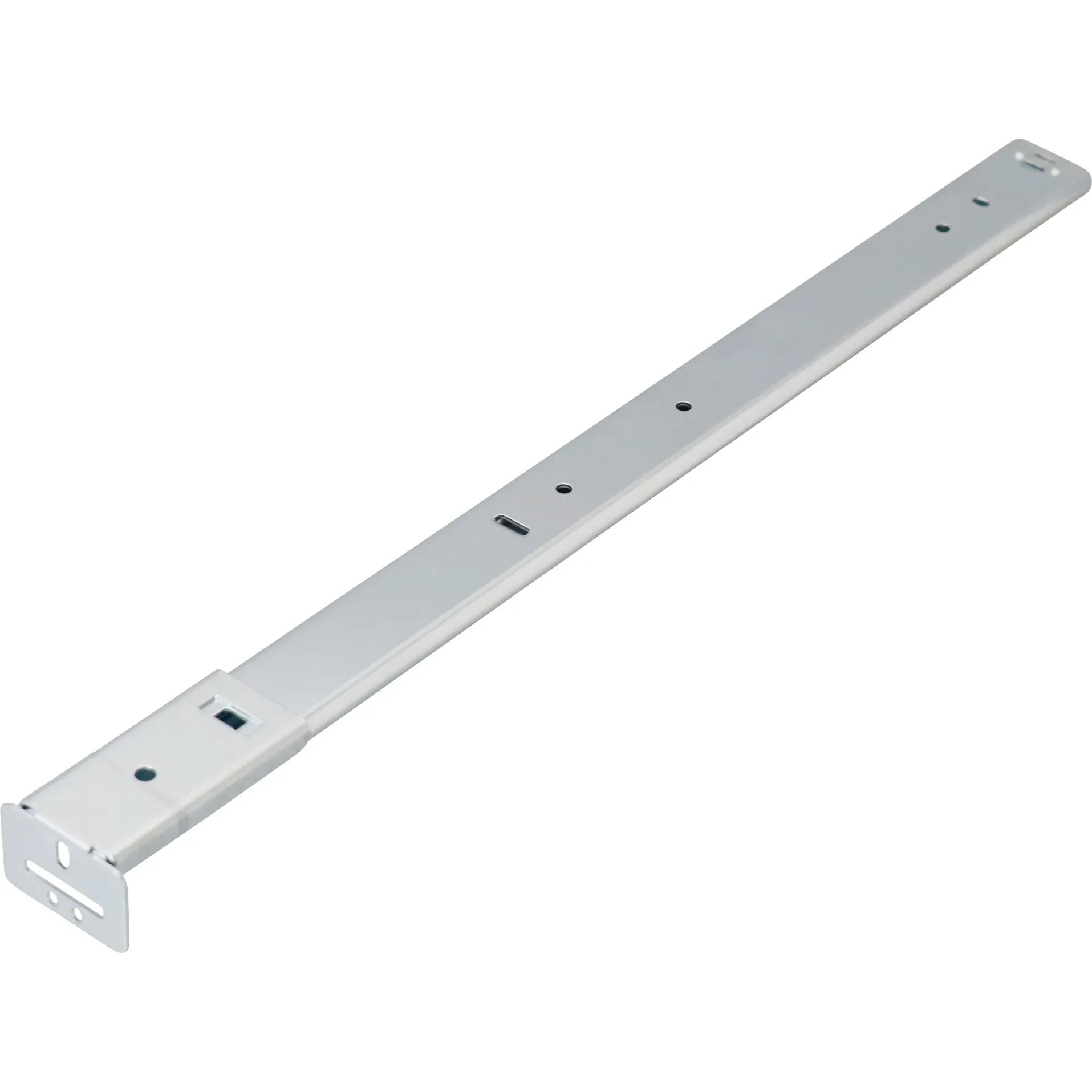

This is a 3/4 slide two-stage pull slide rail.
This is a bottom mount type that attaches the rail to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance acting as a brake. If pulled harder, the rail can be removed and detached.
