Description
Description
Quantity: 1 piece
Coil Rated Voltage (V): AC100
Applicable Motor Capacity (200闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 class): 3.7
Applicable Motor Capacity (380闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 class): 7.5
Applicable Motor Capacity (500闂?50V) (kW): Three-phase squirrel-cage motor (AC-3 class): 7.5
Applicable Motor Capacity (200闂?20V) (kW): Three-phase squirrel-cage motor (AC-3 class): 3.7

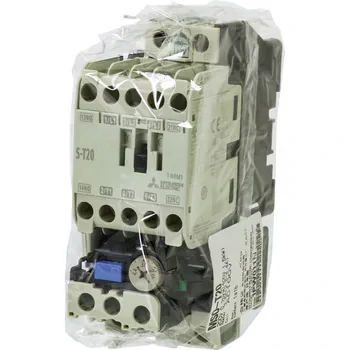

Model Number: MSO-T20 0.75KW 200V AC100V
Motor Capacity (kW): 0.75
Auxiliary Contact: 1a1b
Frame: T20
Compatible Thermal Relay: 2-element thermal relay included, (model): TH-T18
Heater Rating (A): 3.6
Heat Element Rated Setting Range (A): 2.8闂?.4
Coil Rated Voltage (V): AC100
Type: Open Type
Category: Electromagnetic Contactor
Operating Method: Non-reversible
Main Circuit Voltage (V): 200
Specifications: Terminal Section Specifications: Standard, Operating Coil Input: Continuous/7VA, Instantaneous Engagement/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.38
Mounting Method: IEC 35mm Rail, Screw
Type: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated Insulation Voltage (V): 690
Rated Operational Current (A): Three-phase squirrel-cage motor (AC-3 class): (200闂?20V) 18 / (380闂?40V) 18 / (500闂?50V) 17, Resistive Load (AC-1 class) (200闂?40V) 20 / (380闂?40V) 13
Mechanical Durability: 10 million operations
Electrical Durability: AC-3 class: 2 million operations, AC-4 class: 30,000 operations, AC-1 class: 500,000 operations
Rated Impulse Withstand Voltage (kV): 6
Pollution Degree (Operating Environment): 3
Operating Frequency (operations/hour): AC-3 class: 1800, AC-4 class: 300, AC-1 class: 1200
Open Thermal Current (A): 20
Operation Method: Operating Coil, Operating Circuit: Standard Specification
Applicable Motor Capacity (200闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 class): 3.7
Applicable Motor Capacity (380闂?40V) (kW): Three-phase squirrel-cage motor (AC-3 class): 7.5
Applicable Motor Capacity (500闂?50V) (kW): Three-phase squirrel-cage motor (AC-3 class): 7.5
