Description
Contents: 1 piece
Axis diameter (mm): 80
Load type: Light load
Dimension A (mm): 78
Dimension B (mm): 82.6
Dimension H (mm): 88.9
Dimension H1 (mm): 30
Dimension H2 (mm): 175
Dimension J (mm): 232
Dimension L (mm): 292
Dimension L1 (mm): 85
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 33.3
Axis diameter (mm): 80

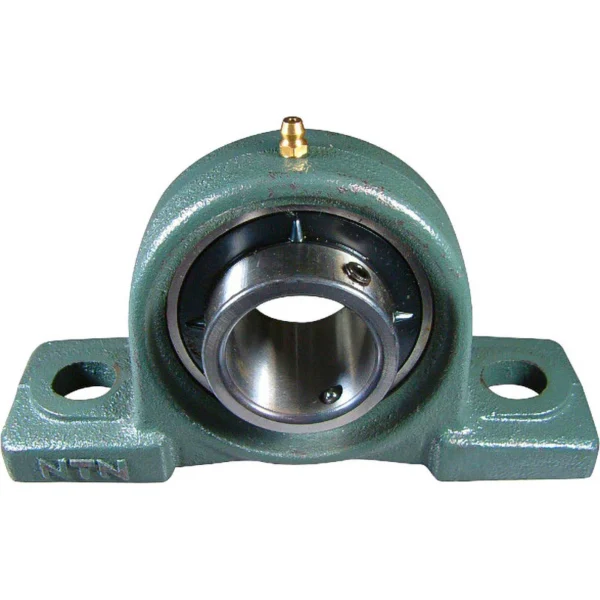

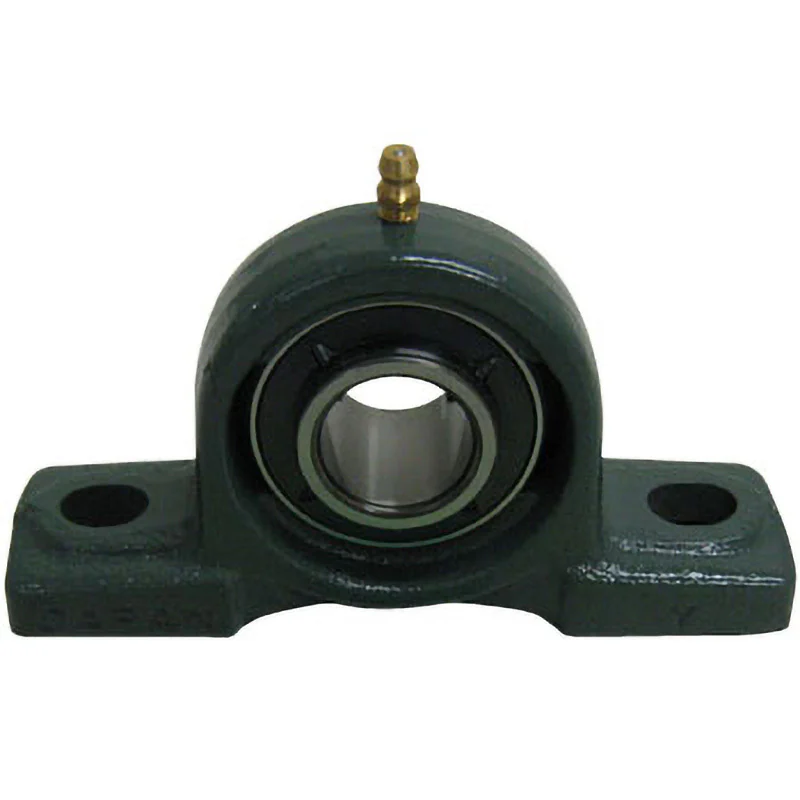

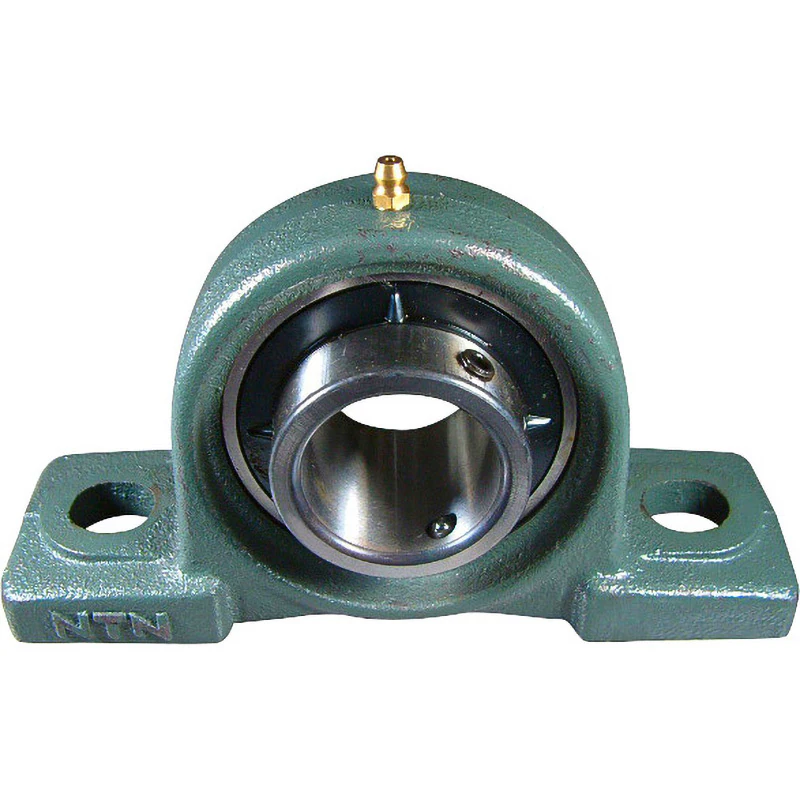

Shape: Pillow block unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 9.0 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 53
Basic dynamic load rating (kN): 72.5
This is a representative type of bearing unit, corresponding to the combination of the traditionally widely used Plummer block and the self-aligning ball bearing, and installation on the shaft is easy by simply tightening the set screw with ball. It is most commonly used in transmission devices and general machinery.
