Description
Dimensions B (mm): 19
Dimensions C1 (mm): 13.5
Dimensions G (mm): M14*2
Dimensions d (mm): 14
Dimensions d1 (mm): 16.9
Dimensions d2 (mm): 34
Dimensions h (mm): 60
Dimensions l1 (mm): 36
Dimensions l2 (mm): 77
Chamfer dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Mass (g): 126
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 33600
Static Load Capacity (N): 17200
Ball Diameter (mm): 25.400

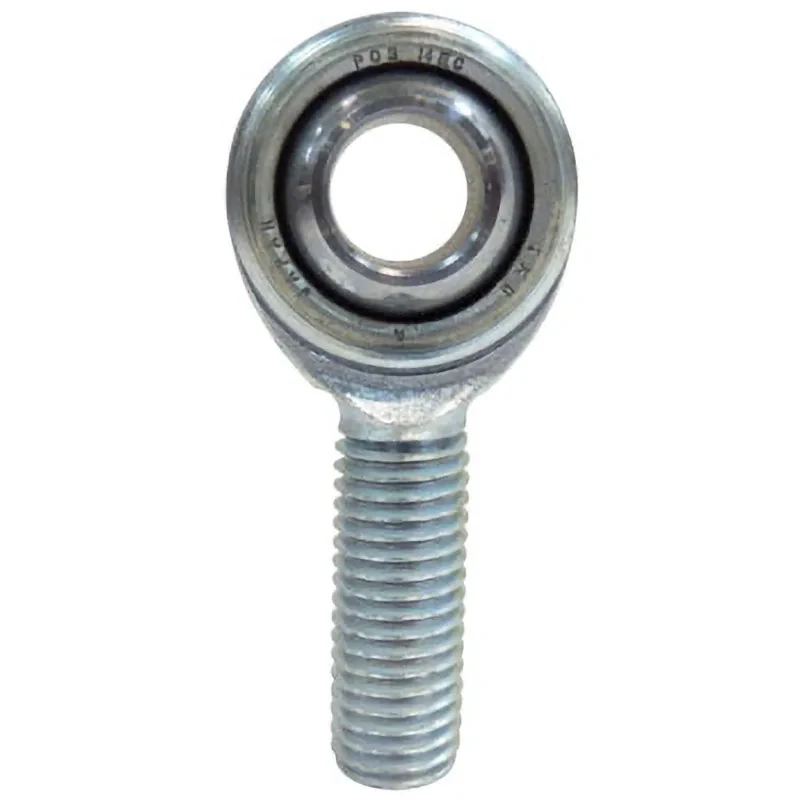

This is an automatic self-aligning spherical sliding bearing that can bear large radial loads and bi-directional axial loads simultaneously with a small capacity.
The pillow ball Rod End｣ｬ is easy to install as it has internal or external threads machined into the main body.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
