Description
Width W (mm): 48.5
Type: Slide type
Stroke (mm): 310
Travel distance (mm): 310
Rail length (mm): 425
Rated load (N): 69 per unit
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) Glossy chromate treatment
Specification: Bottom pull
Material: / Finished steel / Mounting bracket, inner rail, outer rail: Glossy chromate treatment (trivalent chromium) Retainer: Zinc plated steel sheet
Height (mm): 33
Weight (g): 460
Depth (mm): (Drawer) 372 to 419, (Cabinet) 432 to 470
Weight (kg/unit): 7
Recommended screw size: Use either a #4 bind, truss, or pan screw.

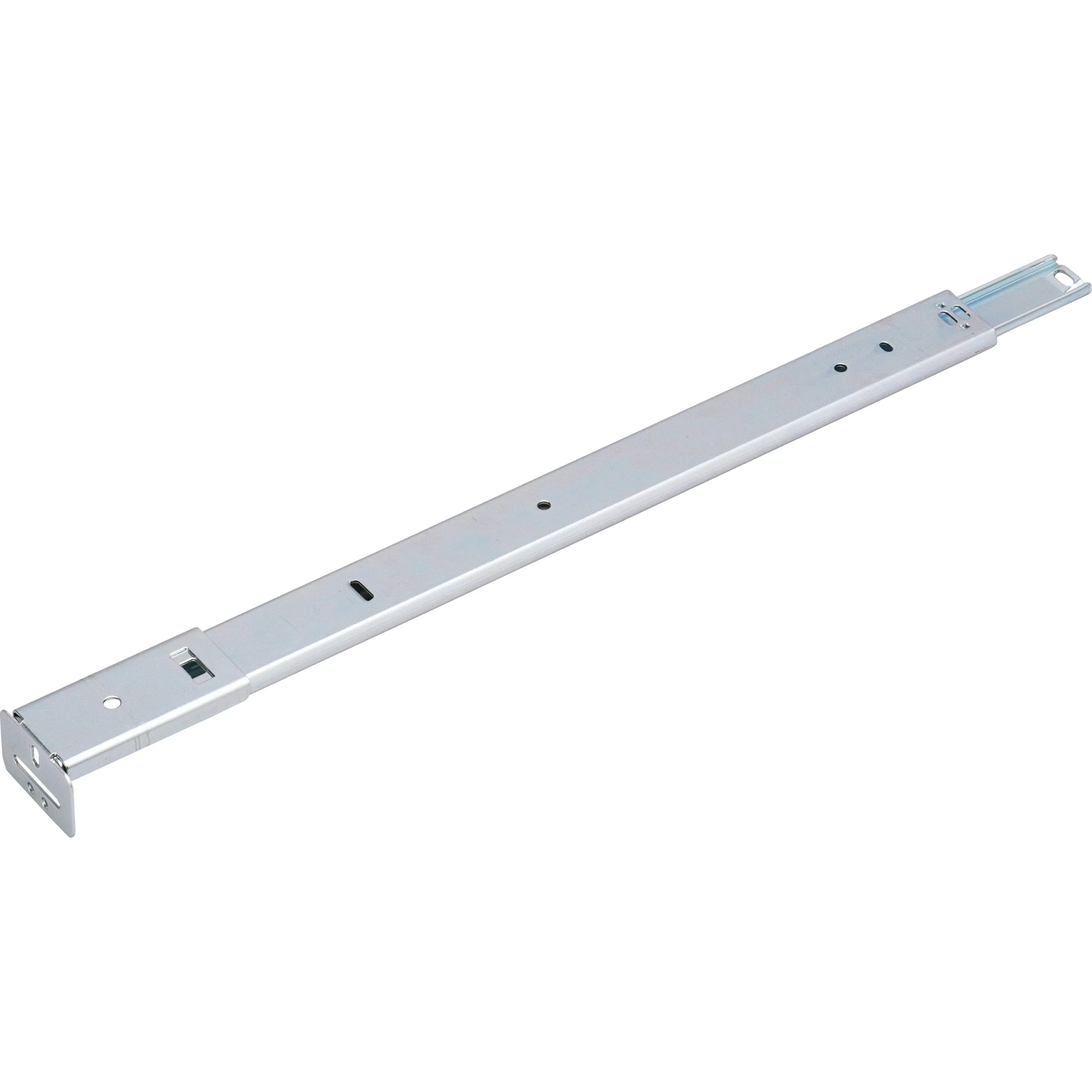

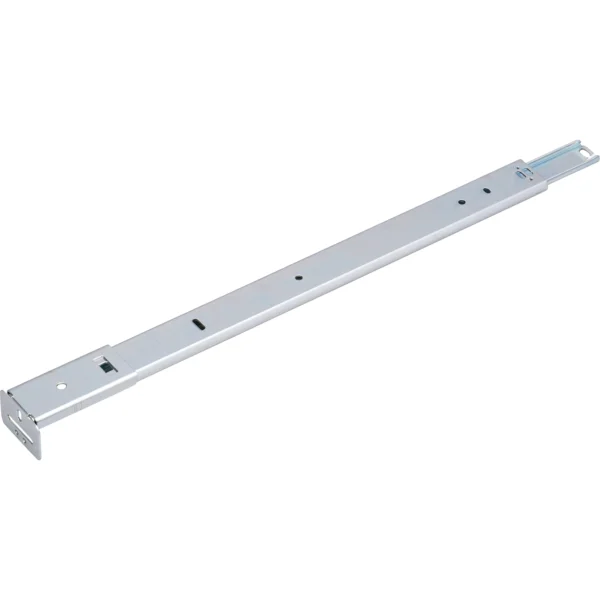

This is a 2-stage pull slide rail with 3/4 slide.
This is a bottom pull type where the rail is attached to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance. If pulled harder, the rail can be removed and detached.
