Description
Content: 1 piece
Axis diameter (mm): 75
Load type: Light load
Dimension A (mm): 74
Dimension B (mm): 77.8
Dimension H (mm): 82.6
Dimension H1 (mm): 28
Dimension H2 (mm): 163
Dimension J (mm): 217
Dimension L (mm): 275
Dimension L1 (mm): 80
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 33.3
Axis diameter (mm): 75

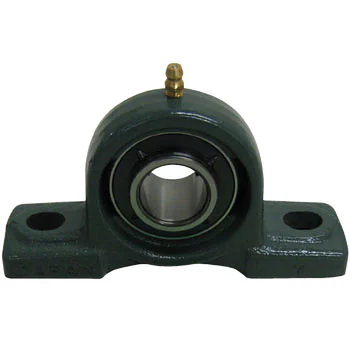

Shape: Pillow type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 7.4 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 49.5
Basic dynamic load rating (kN): 66.0
This is a typical form of bearing unit, equivalent to the combination of the commonly used Plummer block and self-aligning ball bearings, and mounting on the axis is easily done by tightening the ball-containing set screw. It is most widely used in transmission devices and general machinery.
