Description
Capacity: 1 piece
Axis diameter (mm): 70
Load type: Light load

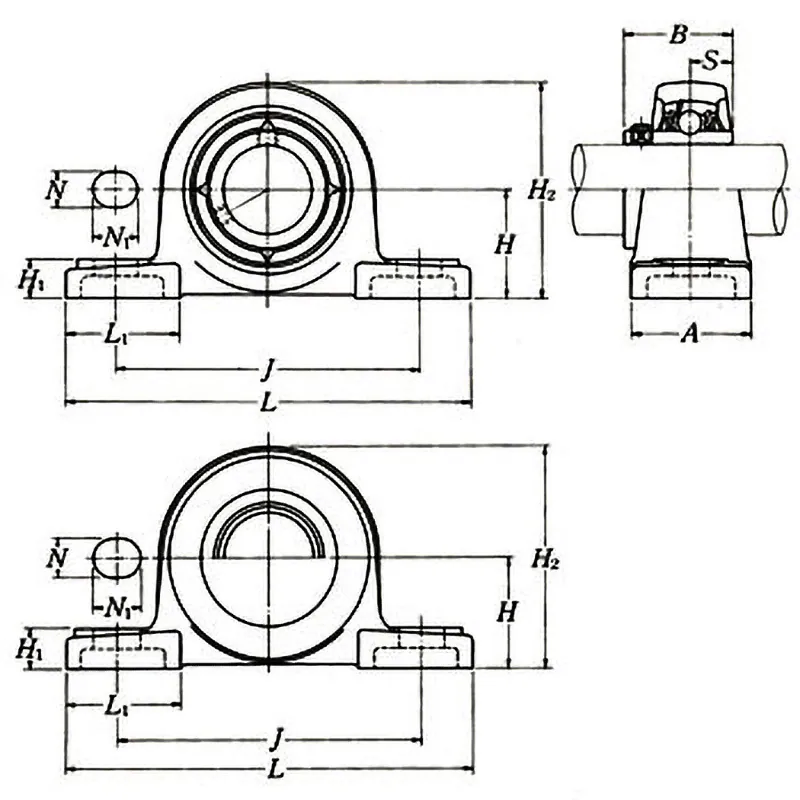

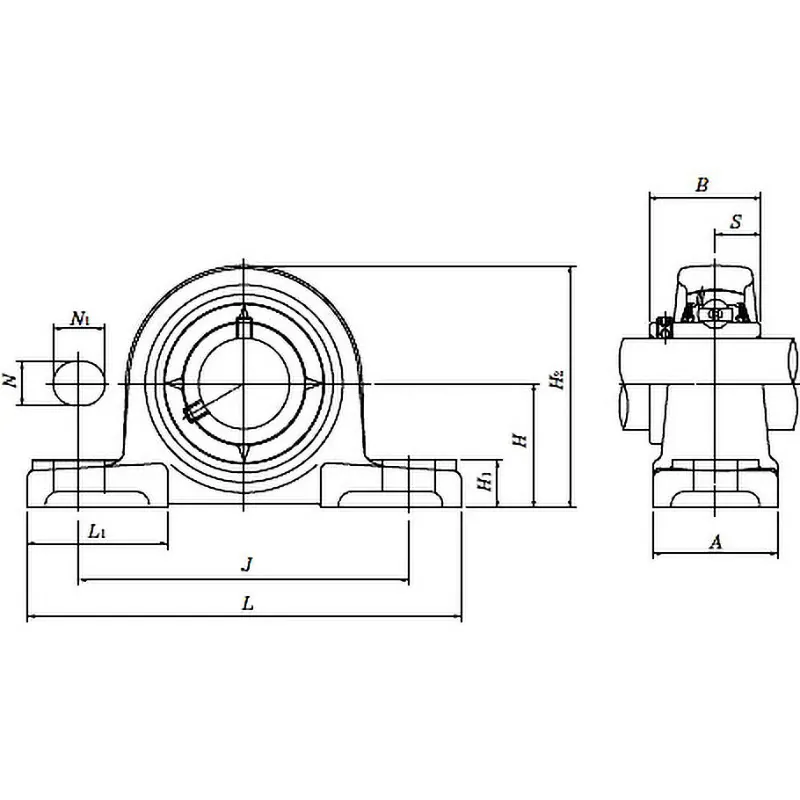

Dimension A (mm): 72
Dimension B (mm): 74.6
Dimension H (mm): 79.4
Dimension H1 (mm): 27
Dimension H2 (mm): 157
Dimension J (mm): 210
Dimension L (mm): 266
Dimension L1 (mm): 77
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 30.2
Axis diameter (mm): 70
Shape: Pillow type unit
Trusco
Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 6.6 (reference)
Standard seal: Nitrile rubber seal
Basic static load rating (kN): 44
Basic dynamic load rating (kN): 62.0
Mounting bolt designation: M20

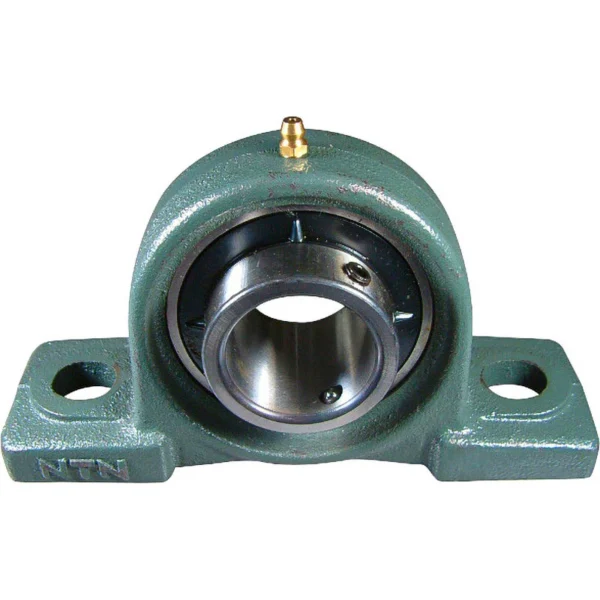

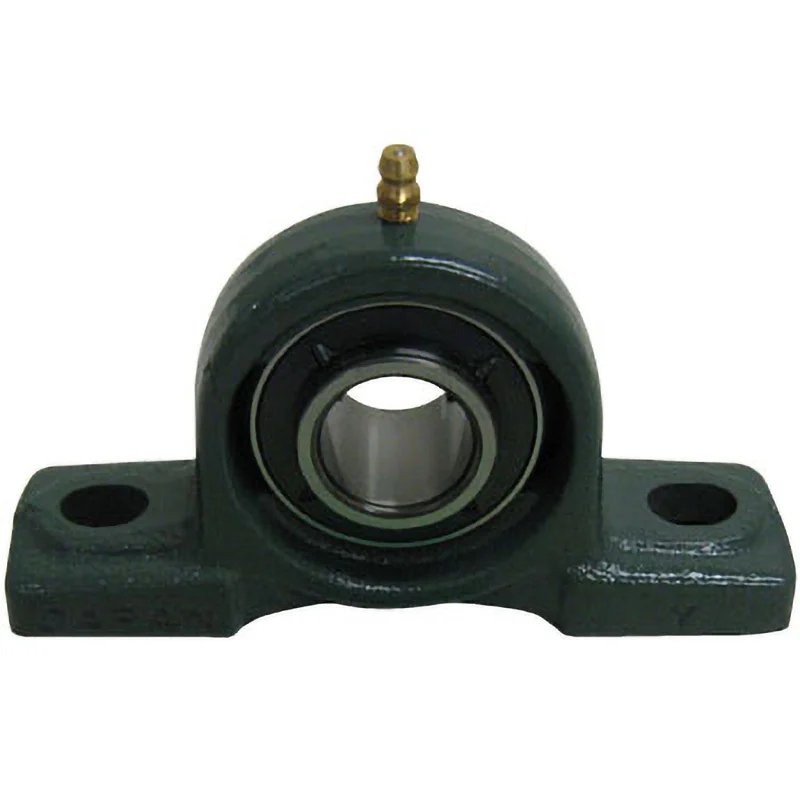

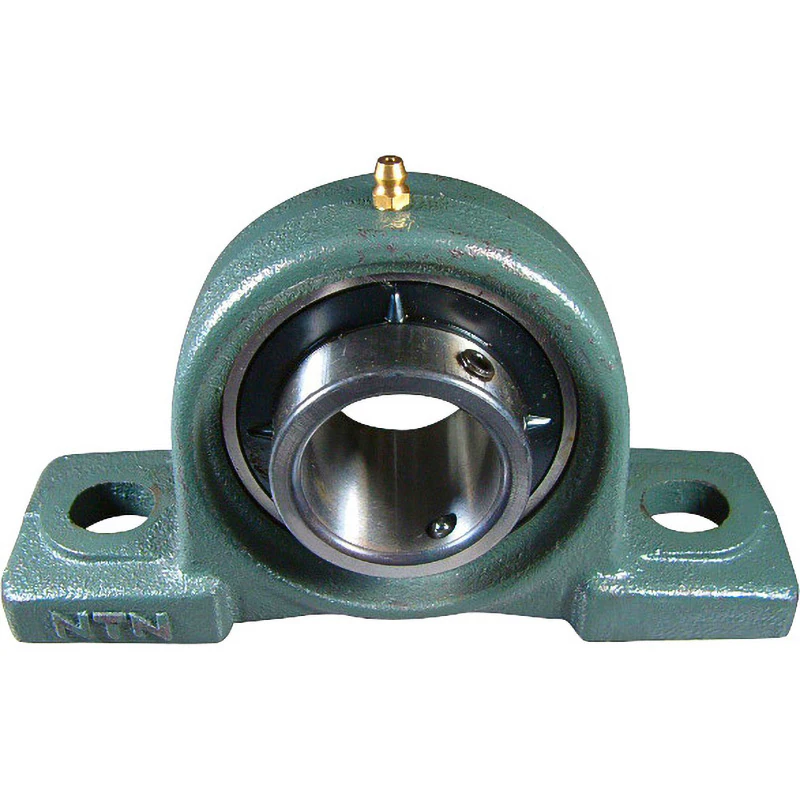

This is a representative type of bearing unit, equivalent to the widely used Plummer block combined with automatically aligned spherical bearings, allowing for easy installation onto the shaft by simply tightening the set screw with a ball, and is most commonly used in transmission devices and general machinery.
