Description
Dimension B (mm): 16
Dimension C1 (mm): 12
Dimension G (mm): M12*1.75
Dimension d (mm): 12
Dimension d1 (mm): 15.4
Dimension d2 (mm): 30
Dimension h (mm): 54
Dimension l1 (mm): 33
Dimension l2 (mm): 69
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Main Body): Zinc Chromate
Weight (g): 85
Type: Male Threaded
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread Type
Lubrication Type: Lubrication-Free
Dynamic Load Capacity (N): 26200
Static Load Capacity (N): 13700
Ball Diameter (mm): 22.225

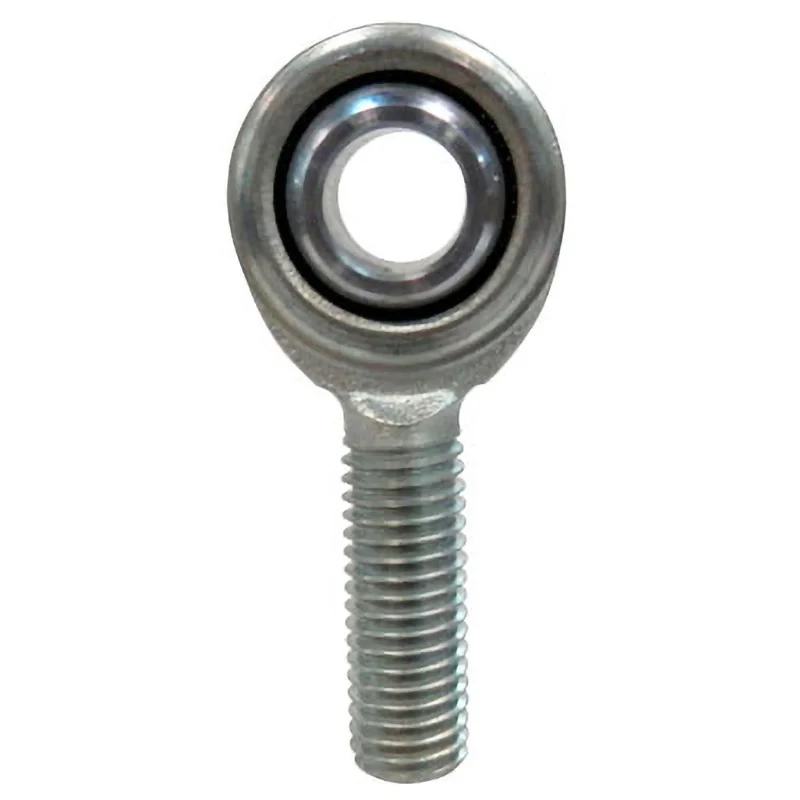

This is an automatic self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
Pillow Ball Rod End｣ｬs are easy to install as they have internal or external threads machined into the main body.
They are used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
