Description
Description: Quantity: 1 piece
Item Number: –
Shape: Knob Type (Metal Ring)
Protection Structure: IP00 (65 Oil Resistant Type)
Contact Configuration: 1a
Withstand Voltage: Between Charging Part and Ground / AC2200V for 1 minute
Notch Angle (degrees): 90
Notch Count: 2
Operating Method: 2-Notch Manual Reset
Temperature Rise: Below 40K
Insulation Resistance (Megaohm): 100 (500V)
Relative Humidity: 45-85% (without condensation)
Operating Ambient Temperature (Celsius degrees): -20 to 55 (without freezing)

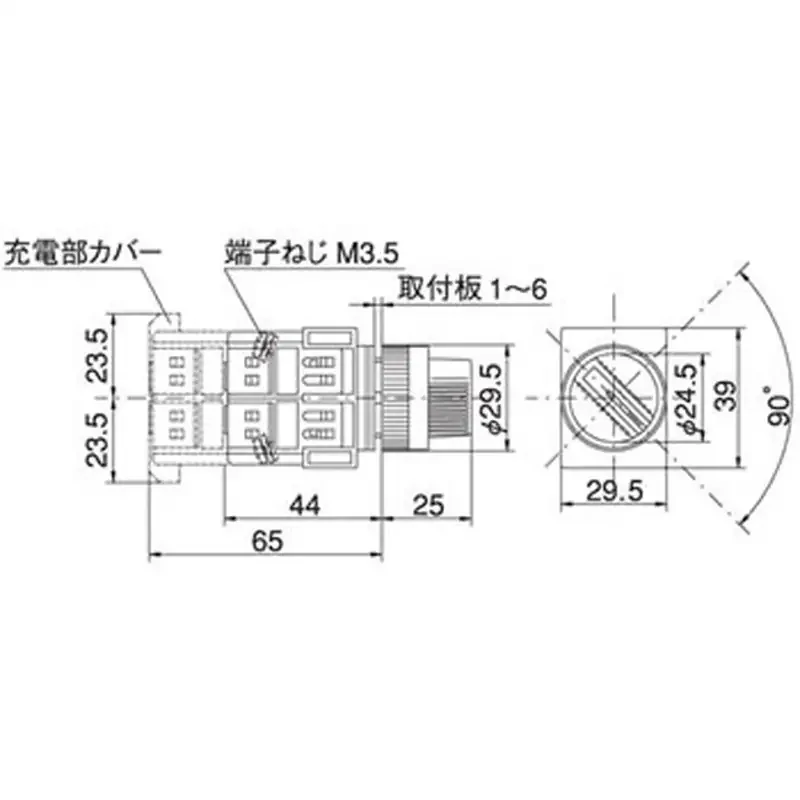

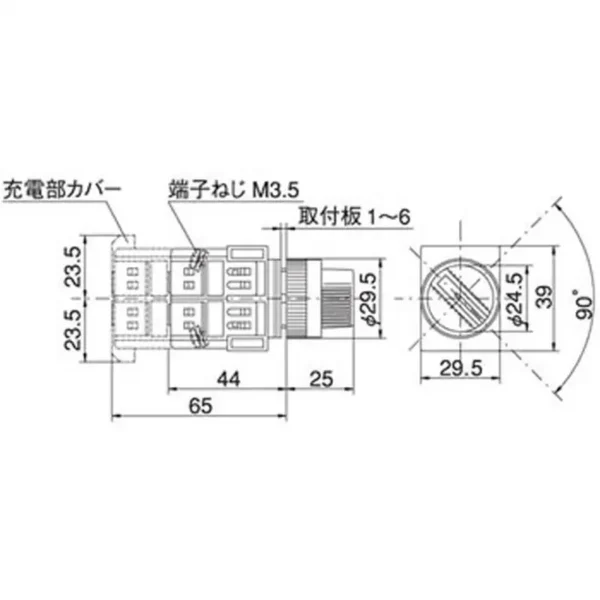

Mounting Hole Diameter (Diameter mm): 22.3 (+0.4 to 0)
Contact Resistance (Megaohm): 30
Cold and Heat Resistance Temperature (Celsius degrees): Cold Resistance: -40 (72 hours), Heat Resistance: 70 (16 hours)
Handle Shape: Knob Type
Rated Use Current (A): AC-15 Class (Inductive Load): 24V/10, 48V/10, 110V/6, 220V/4, 440V/1.5 DC-13 Class (Inductive Load): 24V/6, 48V/2, 110V/0.7, 220V/0.3 DC-12 Class (Resistive Load): 24V/6, 48V/3, 110V/2, 220V/1
Mechanical Durability: 1 million cycles
Electrical Durability: 1 million cycles
Mounting Direction Contact Unit/Horizontal Mounting (Terminal Direction/Left and Right)
Altitude (m): Below 2000m
Impact Resistance (m/s2) (Malfunction): 100, (Durability): 500
Vibration Resistance (m/s2) (Durability): 15
Rated Continuous Current (A): 10
Operating Position Stop Type
Use Current (A): AC-15 (AC Electromagnetic Load): 24V/10, 48V/10, 110V/6, 220V/4, 440V/1.5 DC-13 (Inductive Load): 24V/6, 48V/3, 110V/2, 220V/1
Open/Close Frequency (times/hour): 1800
Strength (Operating Part): 2.5N m for 1 minute, (Terminal Part): 0.8N m for 15 seconds
Contact Unit HC Type
Material (Ring): Zinc Die-Cast (Chrome Plated)
Color (Knob Part): Black
Temperature Resistance: 40 Celsius degrees 93% for 96 hours
Operating Force (N*m): Approximately 0.16 (Contact Configuration: 1a1b)

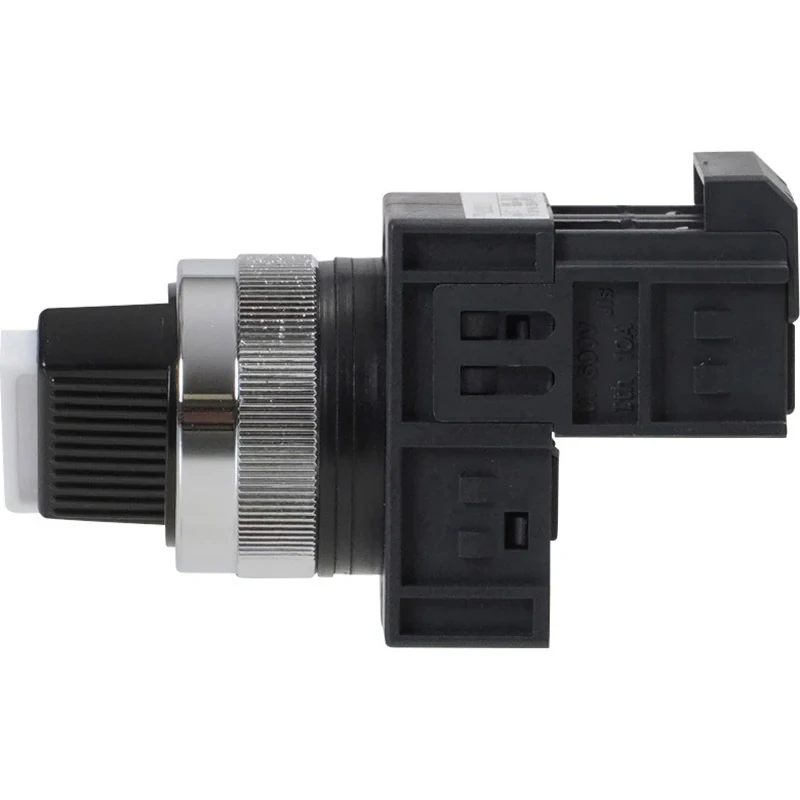

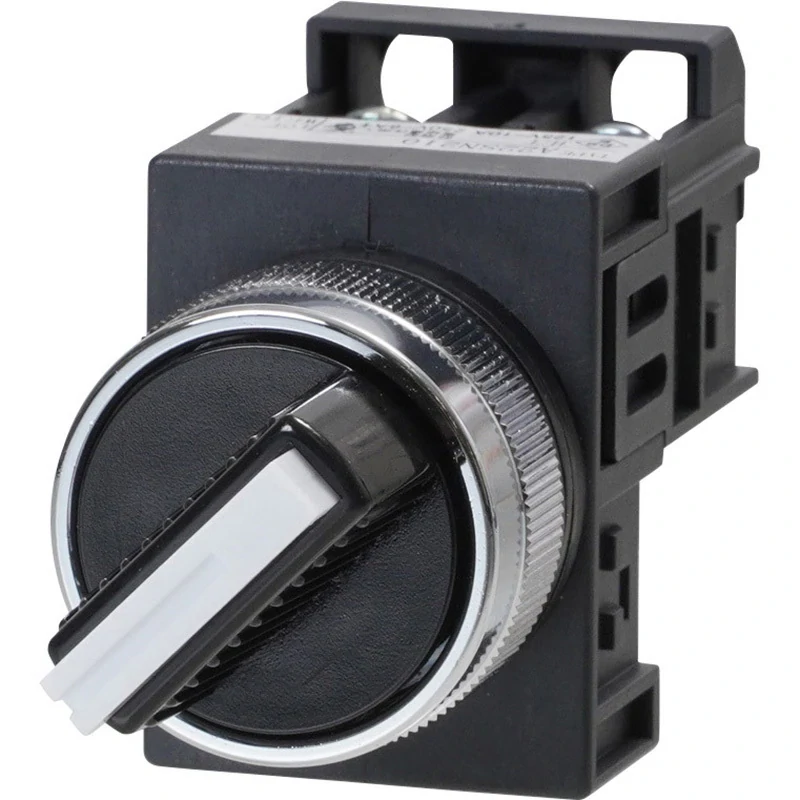

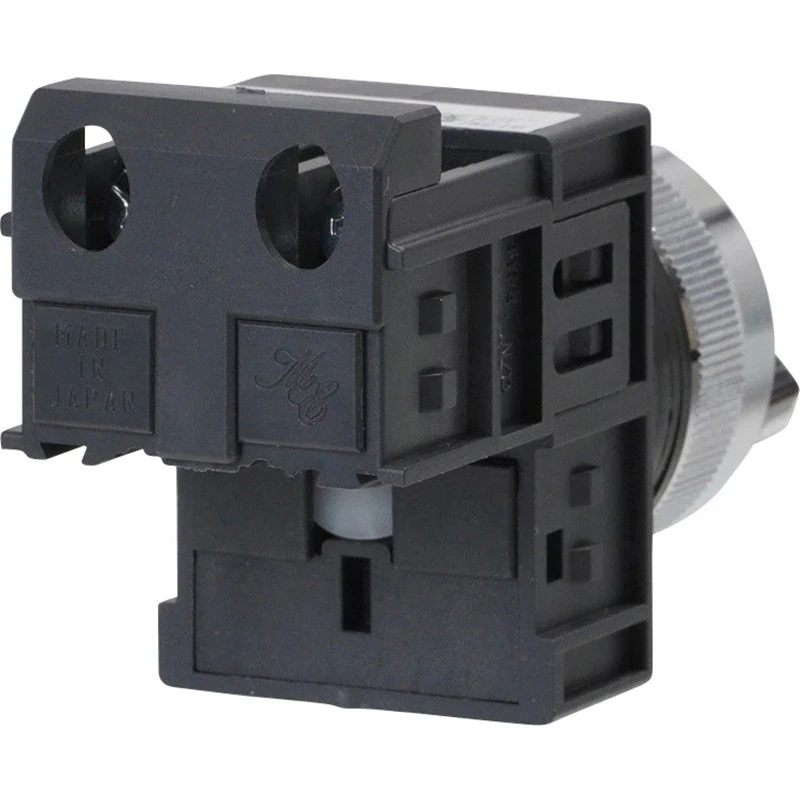

Mounting Hole Diameter Diameter 22 Selector Switch
Angle changeable in 45 degrees pitch by removing the pointer
