Description
Width W (mm): 48.5
Type: Slide type
Stroke (mm): 271
Movement distance (mm): 271
Rail length (mm): 375
Rated load (N): 74 per unit
Number of stages: 2
Material: (Rail) Steel
Surface treatment: (Rail) Glossy chromate treatment
Specification: Bottom mount
Material: /Finish steel/Mounting bracket, inner rail, outer rail: Glossy chromate treatment (trivalent chromium) Retainer: Zinc-coated steel plate
Height (mm): 33
Weight (g): 410
Depth (mm): (Drawer) 321 to 368, (Cabinet) 381 to 419
Weight (kg per unit): 7.5
Recommended screw type: Please use either #4 bind, truss, or pan screws.

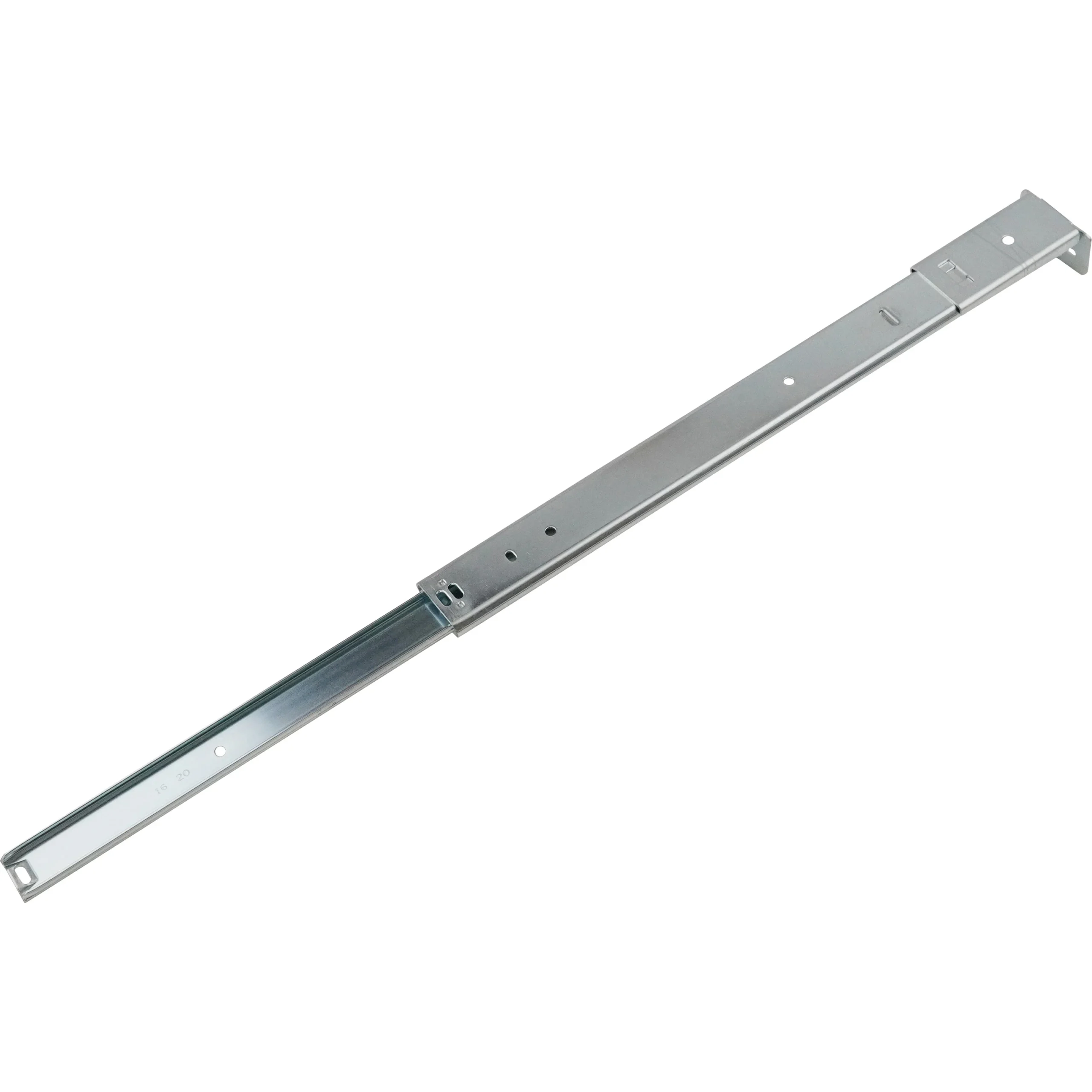

This is a 3/4 slide two-stage pull-out slide rail.
This is a bottom mount type where the rail is attached to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance acting as a brake. If pulled harder, the rail can be removed and detached.
