Description

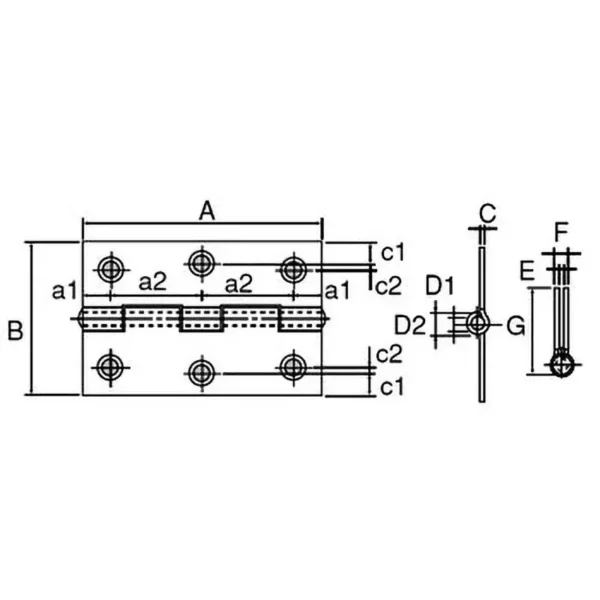

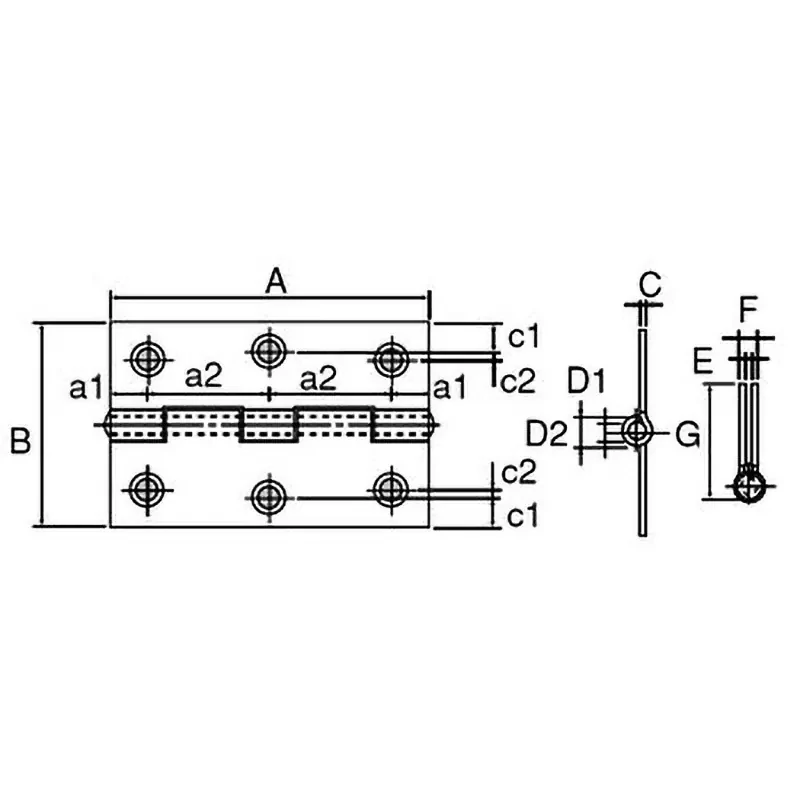

Dimension A (mm): 89
Dimension B (mm): 54
Dimension C (mm): 1.7
Dimension C1 (mm): 7.5
Dimension C2 (mm): 3.0
Dimension D1 (mm): 5.2
Dimension D2 (mm): 8.9
Dimension a1 (mm): 10.5
Dimension a2 (mm): 34.0
Material: Steel (SPCC)
Trusco Part Number: 233-6774
Weight (g): 940
Hole Diameter (mm): 5.4
Load Capacity (kg): 16
Surface Treatment: Raw
Load Capacity (per 2 pieces) (kg): 16
Screw Holes: 6
Weight (g/bag): 940
Number of Screw Holes: 6
Wood Screw Size: 3.8*25
