Description
Capacity: 1 piece
Axis diameter (mm): 65
Load type: Light load

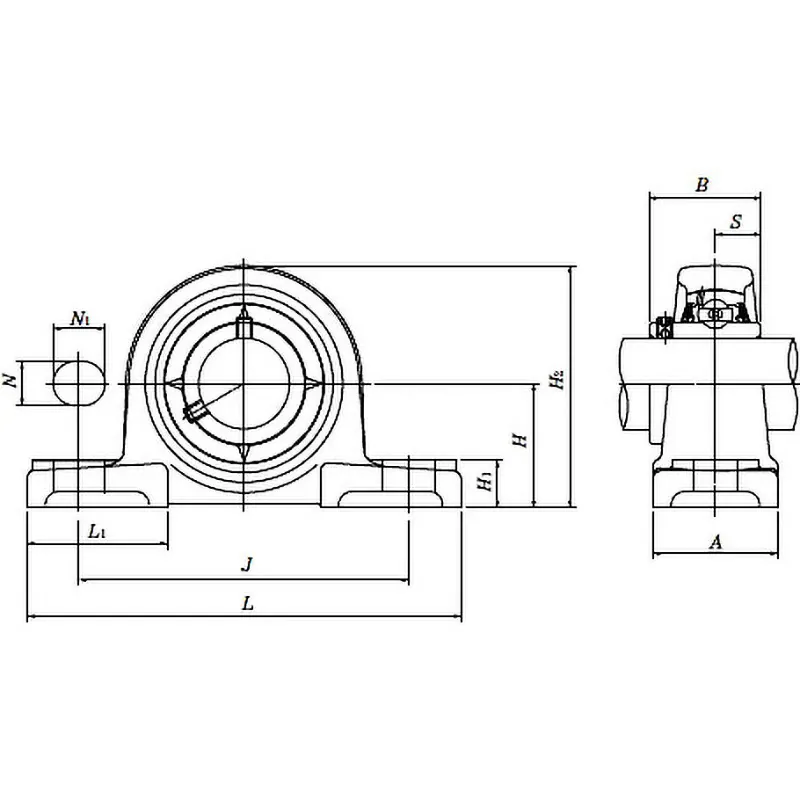

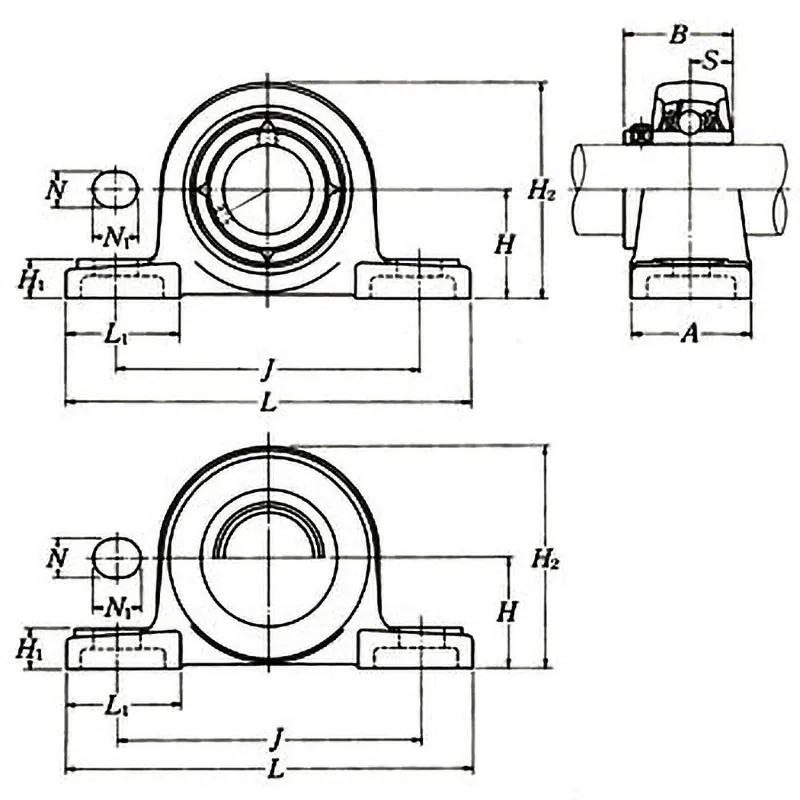

Dimension A (mm): 70
Dimension B (mm): 65.1
Dimension H (mm): 76.2
Dimension H1 (mm): 27
Dimension H2 (mm): 151
Dimension J (mm): 203
Dimension L (mm): 265
Dimension L1 (mm): 77
Dimension N (mm): 25
Dimension N1 (mm): 28
Dimension S (mm): 25.4
Axis diameter (mm): 65

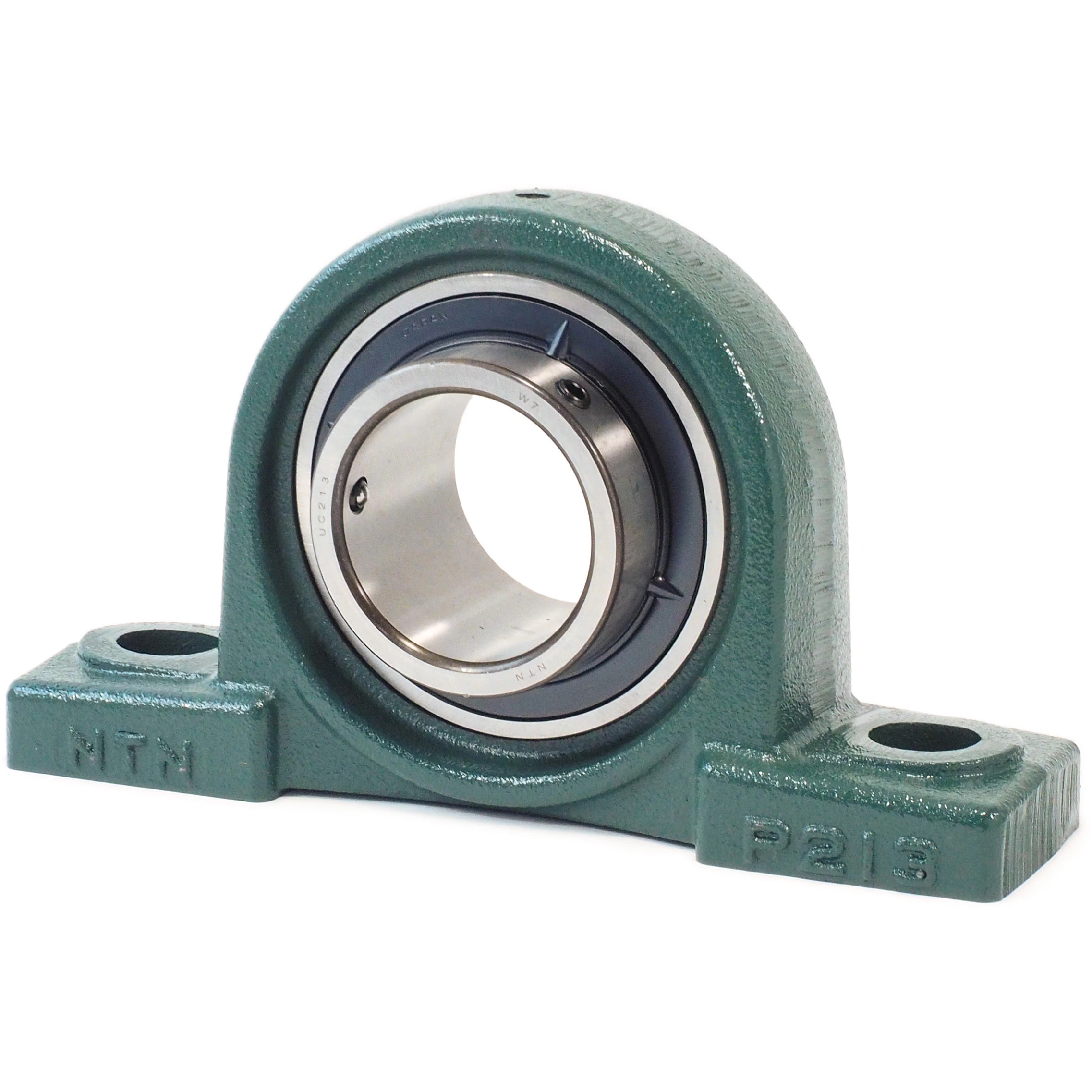

Shape: Pillow type unit
Trusco

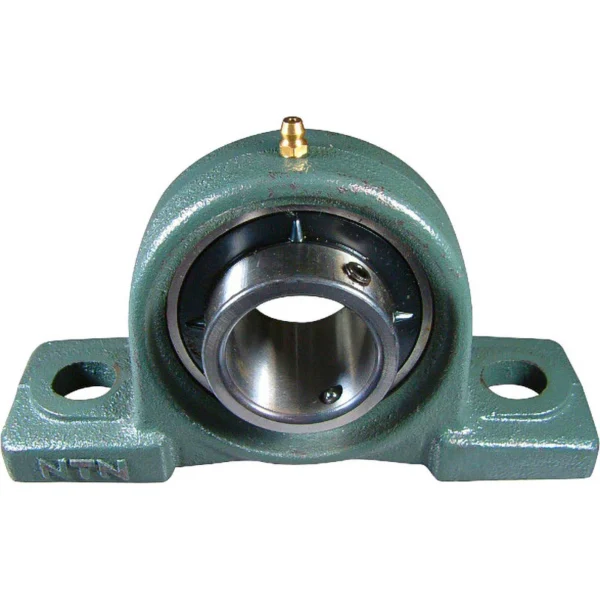

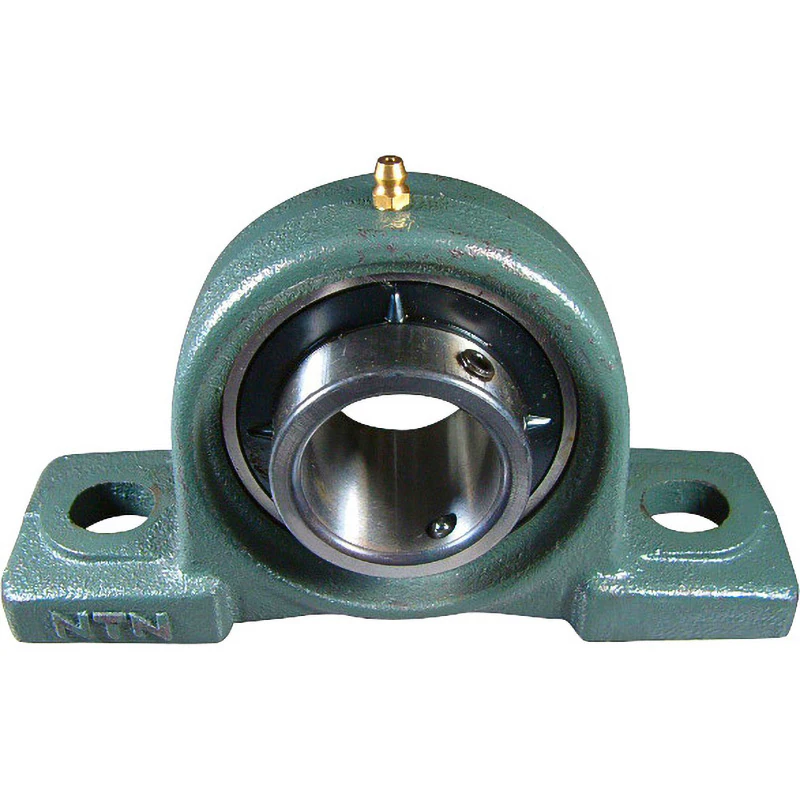

Grease nipple: With grease nipple
Load type: Light load
Cover: No cover
Axis hole type: Cylindrical hole type (with set screw)
Weight (kg): 5.9 (reference)
Seal standard: Nitrile rubber seal
Basic static load rating (kN): 40
Basic dynamic load rating (kN): 57.5
Mounting bolt specification: M20
This is a representative type of bearing unit, equivalent to the combination of the traditionally widely used Plummer block and the self-aligning ball bearing, which is widely used. Mounting on the shaft is easy by simply tightening the set screw with a ball, and it is most commonly used in transmission devices and general machinery.
