Dimension B (mm): 14
Dimension C1 (mm): 10.5
Dimension G (mm): M10*1.5
Dimension d (mm): 10
Dimension d1 (mm): 12.9
Dimension d2 (mm): 26
Dimension h (mm): 48
Dimension l1 (mm): 29
Dimension l2 (mm): 61
Chamfer Dimension r1 (mm): 0.2
Specification 1N is about equal to 0.102kgf
Material: Chrome Plated (Spherical Inner Ring)
Material (Body): Zinc Chromate
Weight (g): 54
Type: With Male Thread
Material (Bush): Special Copper Alloy
Thread Direction: Right Thread
Lubrication Type: Lubrication-Free｣ｬType
Dynamic Load Capacity (N): 19600
Static Load Capacity (N): 10500
Ball Diameter (mm): 19.050

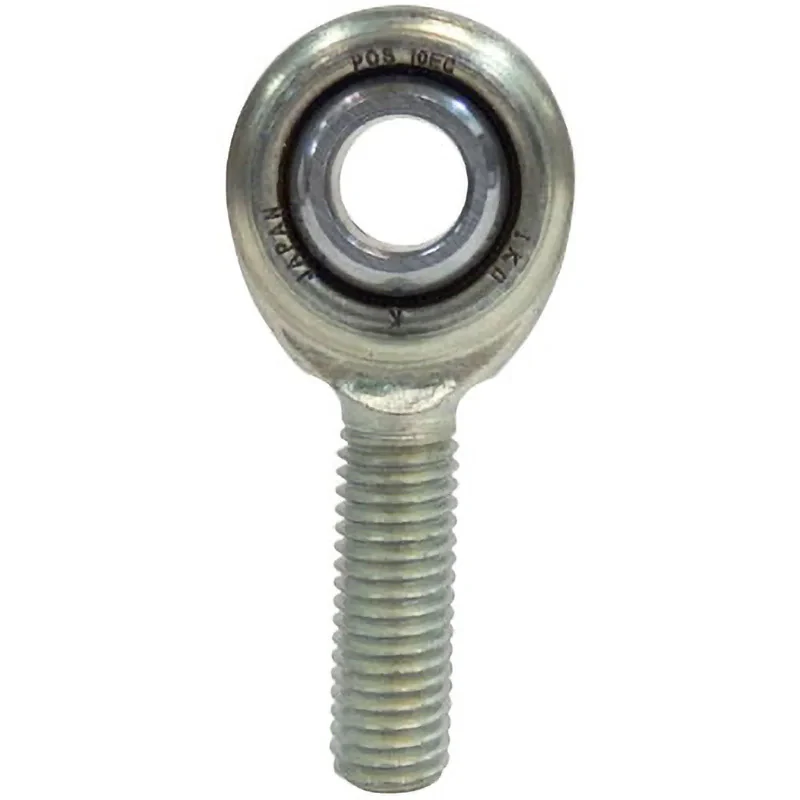

This is a self-aligning spherical sliding bearing that can simultaneously bear large radial loads and bi-directional axial loads with a small capacity.
Pillow ball Rod End｣ｬs have internal or external threads processed on the body｣ｬ making installation easy.
It is used in control mechanisms and link mechanisms of machine tools｣ｬ textile machinery｣ｬ and packaging machinery.
