Description
Width W (mm): 48.5
Type: Slide Type
Stroke (mm): 224
Movement Distance (mm): 224
Rail Length (mm): 324
Rated Load (N): 78 per unit
Number of Stages: 2
Material: (Rail) Steel
Surface Treatment: (Rail) Glossy Chromate Treatment
Specification: Bottom Mount
Material: / Finishing Steel / Mounting Bracket, Inner Rail, Outer Rail: Glossy Chromate Treatment (Trivalent Chromium) Retainer: Zinc-Plated Steel Sheet
Height (mm): 33
Weight (g): 360
Depth (mm): (Drawer) 270 to 318, (Cabinet) 330 to 368
Weight (kg/unit): 0.36
Recommended Screw Size: Please use either #4 bind, truss, or pan screws.

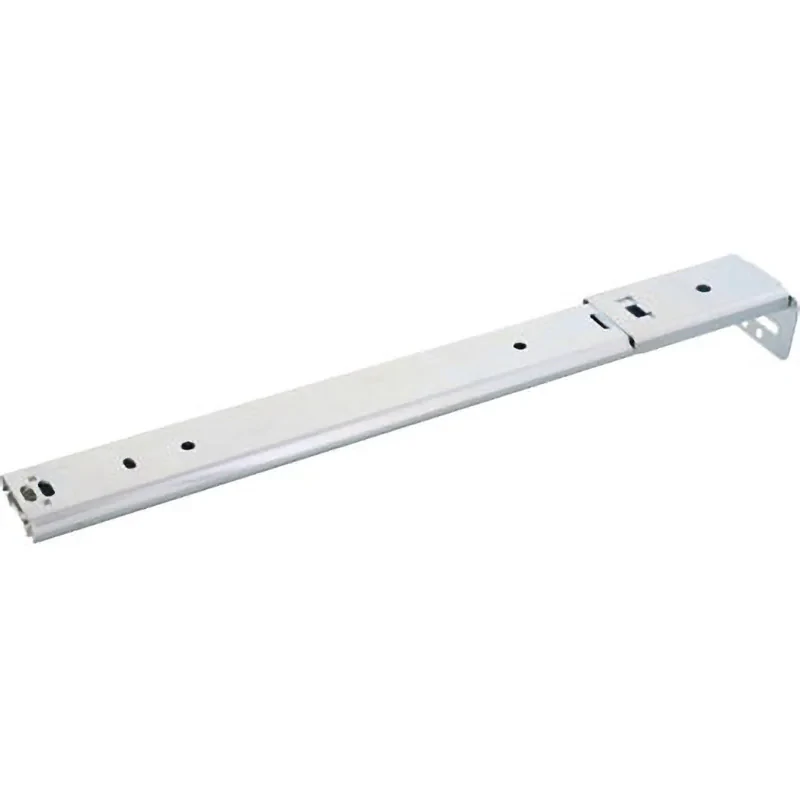

This is a 3/4 slide double extension slide rail.
It is a bottom mount type, which attaches the rail to the bottom of the drawer.
When the rail is fully opened, it stops due to friction resistance. Pulling harder will detach the rail, allowing it to be removed.
