Description: Quantity: 1 piece
Coil rated voltage (V): AC100
Applicable motor capacity (200闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
Applicable motor capacity (380闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 4
Applicable motor capacity (500闂?50V) (kW): Three-phase squirrel cage motor (AC-3 class): 5.5
Applicable motor capacity (200闂?20V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7

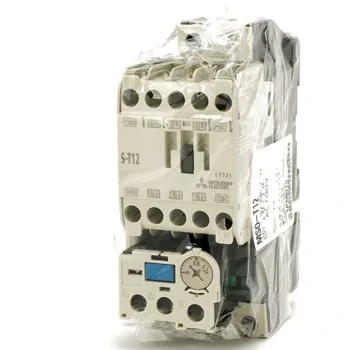

Part number: MSO-T12 1.5KW 200V AC100V
Motor capacity (kW): 1.5
Auxiliary contacts: 1a1b
Frame: T12
Compatible thermal relay: With 2-element thermal relay, (model name): TH-T18
Heater call (A): 6.6
Heat element rated adjustment range (A): 5.2闂?
Coil rated voltage (V): AC100
Type: Open type
Category: Electromagnetic Contactor
Operating method: Non-reversible
Main circuit voltage (V) 200
Specifications: Terminal section specifications: Standard specifications, operating coil input: Continuous/7VA, instant ON/45VA
Length (mm): 115
Width (mm): 46
Thickness (mm): 79
Weight (kg): 0.38
Mounting method: IEC 35mm rail, screw
Model: AC Operated Type
Frequency (Hz): 50/60
Series: MSO-T
Rated insulation voltage (V): 690
Rated operating current (A): Three-phase squirrel cage motor (AC-3 class): (200闂?20V) 13/(380闂?40V) 9/(500闂?50V) 9, resistive load (AC-1 class) (200闂?20V) 20/(380闂?40V) 13
Mechanical durability: 10 million cycles
Electrical durability: AC-3 class: 2 million cycles, AC-4 class: 30,000 cycles, AC-1 class: 500,000 cycles
Rated impulse withstand voltage (kV): 6
Pollution degree (operating environment): 3
Switching frequency (times/hour): AC-3 class: 1800, AC-4 class: 300, AC-1 class: 1200
Open thermal current (A): 20
Operating method: Operating coil, operating circuit: Standard specifications
Applicable motor capacity (200闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
Applicable motor capacity (380闂?40V) (kW): Three-phase squirrel cage motor (AC-3 class): 4
Applicable motor capacity (500闂?50V) (kW): Three-phase squirrel cage motor (AC-3 class): 5.5
Applicable motor capacity (200闂?20V) (kW): Three-phase squirrel cage motor (AC-3 class): 2.7
The miniaturization of the Electromagnetic Contactor has achieved miniaturization in many ratings.
By standard equipping with a terminal cover, the burden of specifying different model names for customers, as well as arranging options, is reduced, leading to inventory reduction and cost reduction benefits from the cover. Of course, this also improves safety as protection for the charging part.
In the old series, the number of operating coil ratings was reduced from 14 types to 8 types. The applicable voltage range has been expanded. Not only does this reduce customer inventory, but also, by consolidating the manufacturing types of coils, it realizes shorter delivery times.
It is suitable for motor overload and restraint protection.
